XCMG 5ton front wheel loader ZL50GN price with 3 cubic bucket

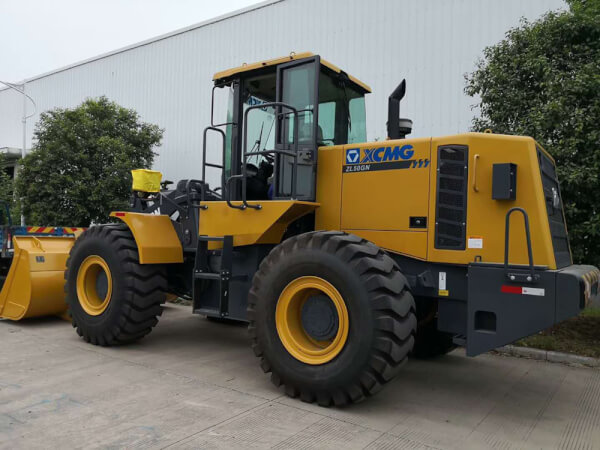

Wheel loader with 3 cubic bucket XCMG ZL50GN
Features,
5ton XCMG wheel loader ZL50GN featres,
Rated load: 5 ton
Bucket capacity : 2.5~4.5 M3
Operating weight:17.5 ton
Weichai WD10G220E21 Engine 162KW
Pilot control
Air conditioner driving cabin
Dry drive axle
Planetary gearbox
Optional attachment: Grass grasper/ Sliding fork / Standard bucket/ Side dumping / Light material Blade bucket 3.5m3 & 4m3& 4.5m3/ 2.5m3 Mine bucket.
Specification of XCMG wheel loader ZL50GN,
|
Description
|
Unit
|
Parameter value
|
|
Rated operating load
|
kg
|
5000
|
|
Bucket capacity
|
m³
|
2.5~4.5
|
|
Machine weight
|
kg
|
17500±300
|
|
Dump clearance at maximum lift
|
mm
|
3100~3780
|
|
Reach at maximum lift
|
mm
|
1100~1220
|
|
Wheel base
|
mm
|
3300
|
|
Tread
|
mm
|
2250
|
|
Max.breakout force
|
kN
|
175±5
|
|
Max.horse power
|
kN
|
160±5
|
|
Hydraulic cycle time-raise
|
s
|
≤6
|
|
Total hydraulic cycle time
|
s
|
≤10.5
|
|
Min. turning radius over tyres
|
mm
|
5925±50
|
|
Articulation angle
|
°
|
38
|
|
Gradeability
|
°
|
30
|
|
Tyre size
|
|
23.5-25-16PR
|
|
Overall machine dimension L×W×H
|
mm
|
8225×3016×3515
|
|
Model
|
|
WD10G220E21
|
|
Rated Power
|
kW
|
162
|
|
Travel Speed
|
Ⅰ-gear(F/R)
|
13/17km/h
|
|
|
Ⅱ-gear(F)
|
41km/h
|

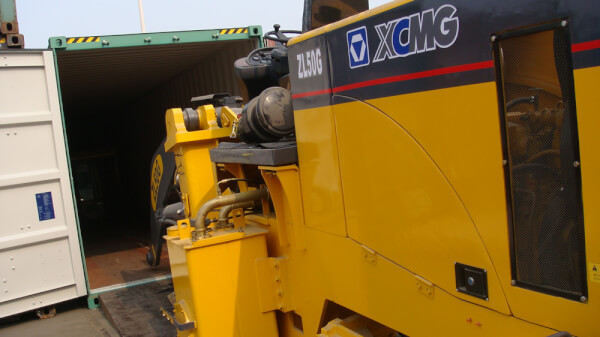

Shipping,
