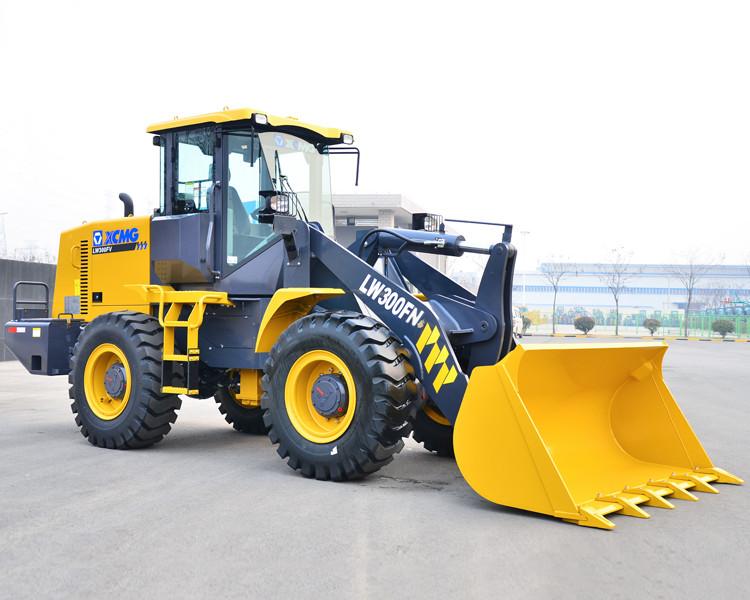

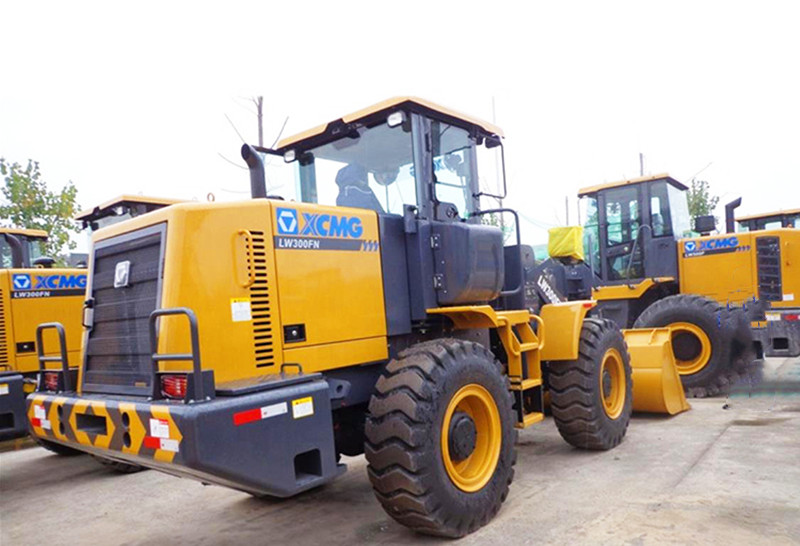

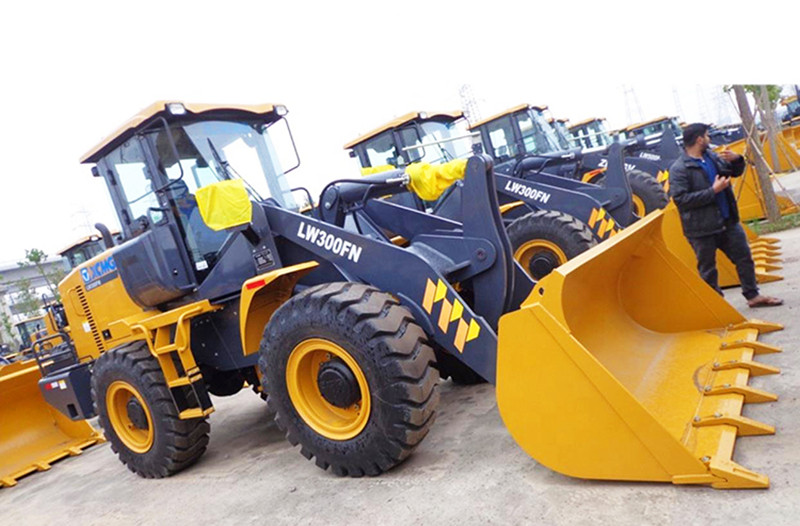

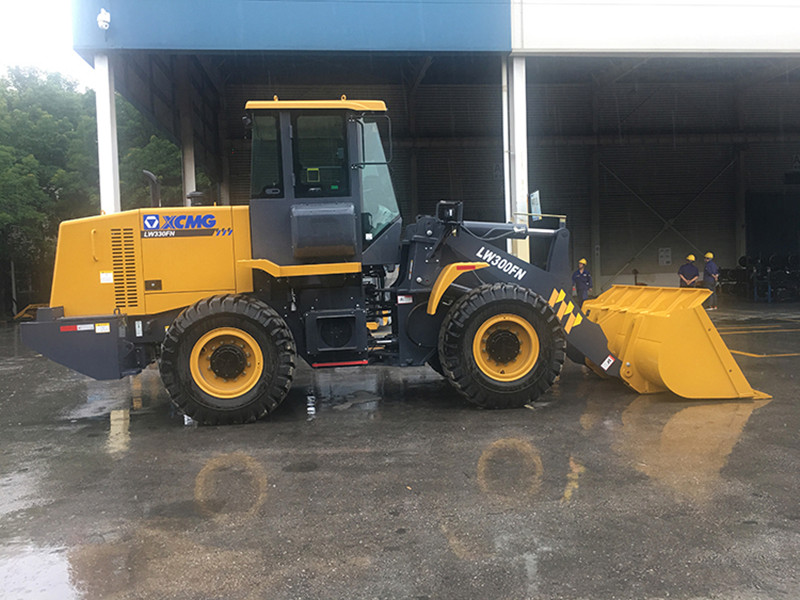

China construction machinery supplier 3ton XCMG wheel loader LW300FN
China 3ton XCMG wheel loader LW300FN
Features,
3ton XCMG wheel loader LW300FN,
1. It features high efficiency, energy-saving, and strong power.
2. The three-element torque converter and the fixed shaft power shift transmission feature high maturity and reliability.
3. The 2600mm wheelbase features high mobility and flexibility and is applicable to all kinds of working sites.
4. The bucket is made of high strength material to realize high wear and impact resistance.
5. The diversified configurations and complete attachments adapt to the construction needs in different regions and under different working conditions.
6. The optional A/C and the sound insulation and noise reduction measure build elaborately a comfortable operating environment.
Specification of 3ton XCMG wheel loader LW300FN,
|
Description
|
Unit
|
Parameter value
|
|
Rated operating load
|
kg
|
3000
|
|
Bucket capacity
|
m³
|
1.5~2.5
|
|
Machine weight
|
kg
|
10600±200
|
|
Dump clearance at maximum lift
|
mm
|
2770~3260
|
|
Reach at maximum lift
|
mm
|
1010~1210
|
|
Wheel base
|
mm
|
2600
|
|
Tread
|
mm
|
1850
|
|
Height of hinge at maximum lift height
|
mm
|
3830
|
|
Working height(fully lifted)
|
mm
|
4870
|
|
Max.breakout force
|
kN
|
130
|
|
Max.horse power
|
kN
|
95
|
|
Hydraulic cycle time-raise
|
s
|
5.5
|
|
Total hydraulic cycle time
|
s
|
10
|
|
Min. turning radius over tyres
|
mm
|
5165
|
|
Articulation angle
|
°
|
35±1
|
|
Gradeability
|
°
|
28
|
|
Tyre size
|
17.5-25-12PR
|
|
|
Overall machine dimension L×W×H
|
mm
|
7050×2482×3118
|
|
Model
|
WP6G125E22
|
|
|
Emission standards
|
Emission 2
|
|
|
Rated Power/Speed
|
kW/rpm
|
92/2200
|
|
Fuel Tank
|
L
|
170
|
|
Hydraulic Tank
|
L
|
170
|
|
Ⅰ-gear(F/R)
|
km/h
|
8/10
|
|
Ⅱ-gear(F/R)
|
km/h
|
13/30
|
|
Ⅲ-gear(F)
|
km/h
|
24/-
|
|
Ⅳ-gear(F)
|
km/h
|
40/-
|

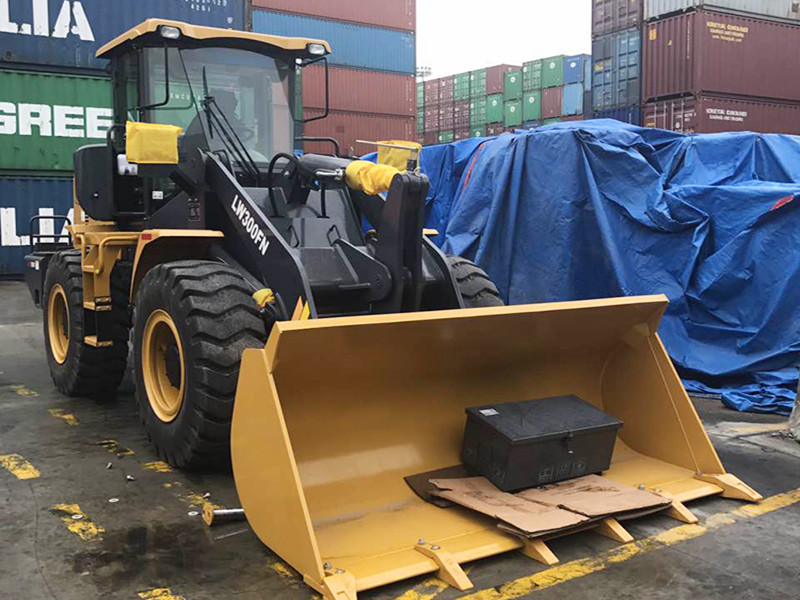

Shipping,
Welcome to contact any time.
Sales manager: Eric Tel/whatsapp: 008615066278170 Skype: ericy-xu Email: [email protected]
