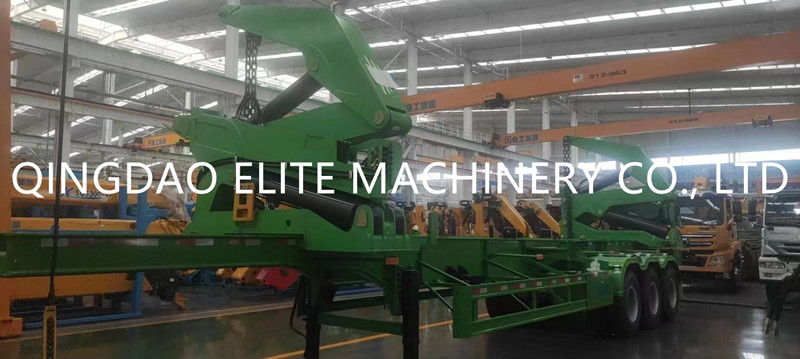

20ft 40ft 35ton container side lifter with 3 axles. Self loading container semi trailer. Side loader trailer.

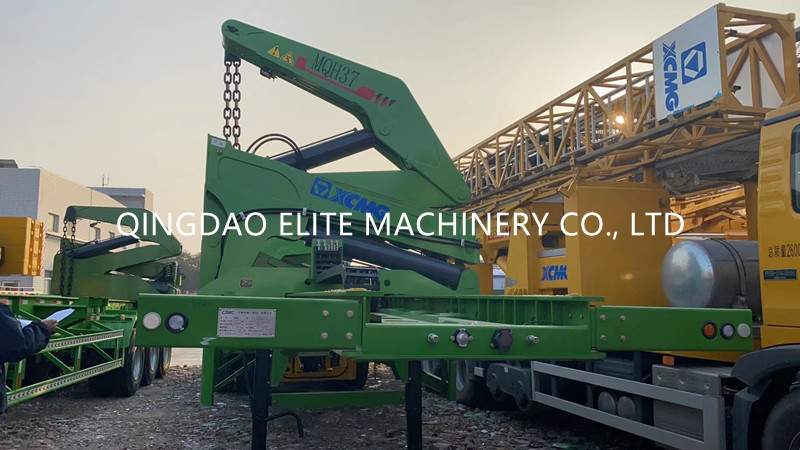

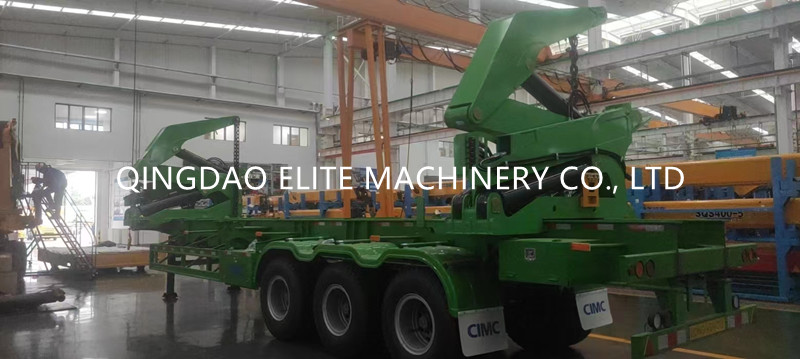

Features of XCMG side lifter MQH37A,
MAIN SPECIFICATION of self loading container side lifter trailer | |
Overall(L*W*H) | 14100*2500*4100mm |
The distance between trailer and container | Optimum distance:400mm |
The largest distance :1500mm | |
Specification | Design criteria: GB/T 3811-2008 |
Crane | Quality Side Crane |
Max. lifting capacity | 40000kg |
Max.stabiliser outreach | 3200mm |
Max. working range | 4000mm |
Max. pressure of hydraulic | 28MPa |
Hydraulic system | Hydraulic pump: Italian CASAPPA |
Electric control system | Hydraulic control valve: Netherlandish AMCA |
Telecontroller: German NBB | |
Voltage: 12V | |
Two chain | Two chain: lgus (imported) |
Diesel engine | Japanese Kubota diesel engine |
Trailer Chassis | L*W*H:14100*2500*4000mm |
Axles: 3*13 tons axles | |
Tire: 12R22.5 tubless tire, 12 pcs | |
Suspension:Heavy duty type mechanical suspension | |
Kingpin:2 inch or 3.5 inch bolted type | |
Landing gear: 28T | |
Water-drenching device |
