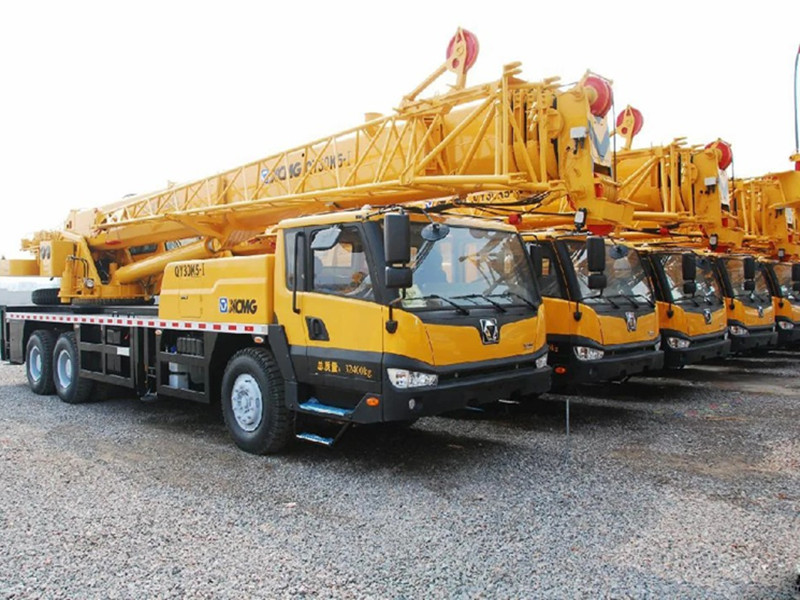

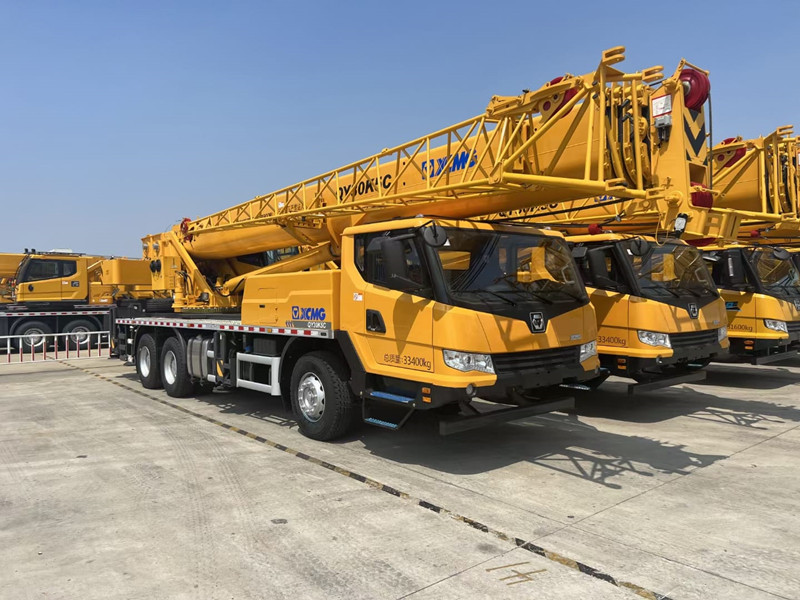

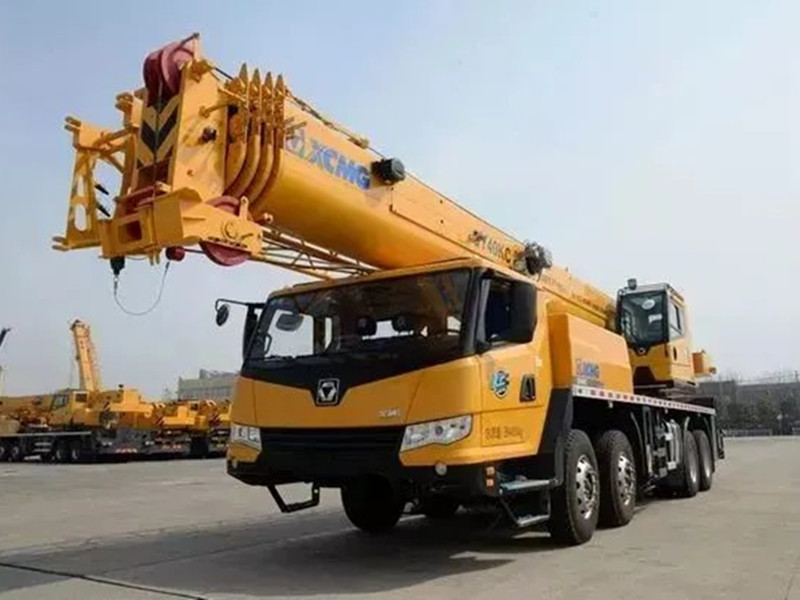

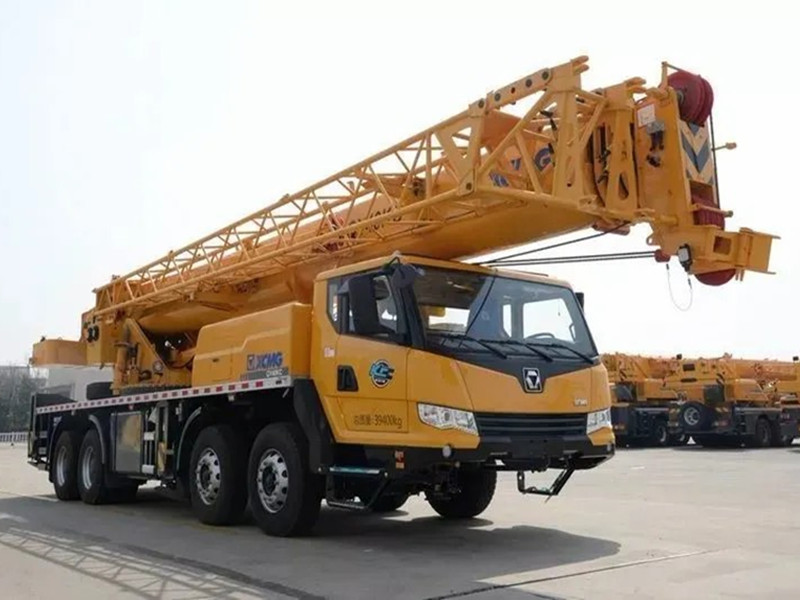

30ton mobile truck crane XCMG QY30K5C
Features of XCMG QY30K5C 30ton truck crane
XCMG official construction telescopic boom crane QY30K5C 30t mobile crane.
1. Designed and manufactured by XCMG, with all covered walking surface, anti-torsion box structure and optimal load bearing structure design, made of imported high strength steel.
2. SC9DF300.1Q5, in-line six-cylinder water-cooled EFI diesel engine, rated power 221kW /2200rpm, max. torque 1250Nm/1400rpm, the national V emissionstandards. Fueltank capacity:320L
3. FAST manually mechanical control,9-speedavailable, synchronizer is equipped.
Specifications of XCMG QY30K5C 30ton truck crane,
|
Description
|
Unit
|
Parameter value
|
|
|
Overall length
|
mm
|
12850
|
|
|
Overall width
|
mm
|
2550
|
|
|
Overall Height
|
mm
|
3480
|
|
|
Wheel Base
|
mm
|
4500+1350
|
|
|
Track
|
mm
|
2059/2074/1834
|
|
|
Total vehicle mass in travel configuration
|
kg
|
33000
|
|
|
Axle load
|
1st axle
|
kg
|
7400
|
|
2nd axle
|
12800
|
||
|
Engine rated power
|
kw/(r/min)
|
221/2200
|
|
|
Engine rated torque
|
N.m/(r/min)
|
1250/1400
|
|
|
Max. travel speed
|
km/h
|
≥90
|
|
|
Min. turning diameter
|
m
|
≤21
|
|
|
Min. ground clearance
|
mm
|
250
|
|
|
Max. grade ability
|
%
|
≥40
|
|
|
Approach angle
|
°
|
11
|
|
|
Departure angle
|
°
|
13.5
|
|
|
Braking distance (at 30 km/h, full load )
|
m
|
≤10
|
|
