Famous brand machinery with warranty fast delivery XCMG grader GR180

  • gr180 grader

XCMG GR215 motor grader

Category:

INQUIRY

Famous brand road construction machinery XCMG grader GR180

XCMG Official 180hp motor grader machine GR180 with factory price

The motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.

Advantages and Highlights:

1. Famous brand Engine, ZF Technology Gearbox, and XCMG Drive Axle make the drive system power matching more reasonable and reliable.

2. Double-circuit hydraulic brake system makes the brake more reliable and stable.
3. Steering to the load sensing system, the main hydraulic components adopt international support to ensure the stability and reliability of the system.
4. Use XCMG special enhanced work devices.
5. The blade body adopts adjustable large chute and double slide mechanism, and the working blade adopts high-strength and wear-resistant material.
6.Various options expand the machine’s performance and working range.

Specifications of XCMG grader GR180,

Item
GR180
Basic parameters
Engine model
6CTA8.3-C190-Ⅱ
Rated power/speed
142kW/2200rpm
Overall dimension (standard)
8900x2625x3420
Total weight (standard)
15400 kg
Tire specification
17.5-25
Ground clearance (front axle)
430mm
Tread
2156mm
Space of front and rear axles
6219 mm
Space of middle and rear wheels
1538 mm
Performance parameters
Forward velocity
5、8、11、19、23、38km/h
Reverse speed
5、11、23km/h
Tractive effort f=0.75
≥79 kN
Maximum gradeability
≥25%
Tire inflation pressure
260kPa
Working system pressure
18MPa
Transmission pressure
1.3—1.8Mpa
Working parameters
Maximum steering angle of front wheel
±50°
Maximum slant angle of front wheel
±17°
Maximum oscillating angle of front axle
±15°
Maximum oscillating angle of equilibrium box
±15°
Maximum steering angle of frame
±27°
Minimum turning radius
7.3m
Scrape knife
Maximum lift height
450mm
Maximum cutting depth
500mm
Maximum tilt angle
90°
Cutting angle
28°—70°
Angle of revolution
360°
Length & chord height
3965x610mm
Oil filling amount
Coolant
50L
Fuel tank
280L
Engine
24L
Transmission
38L
Balancing box
46L
Drive axle
28L

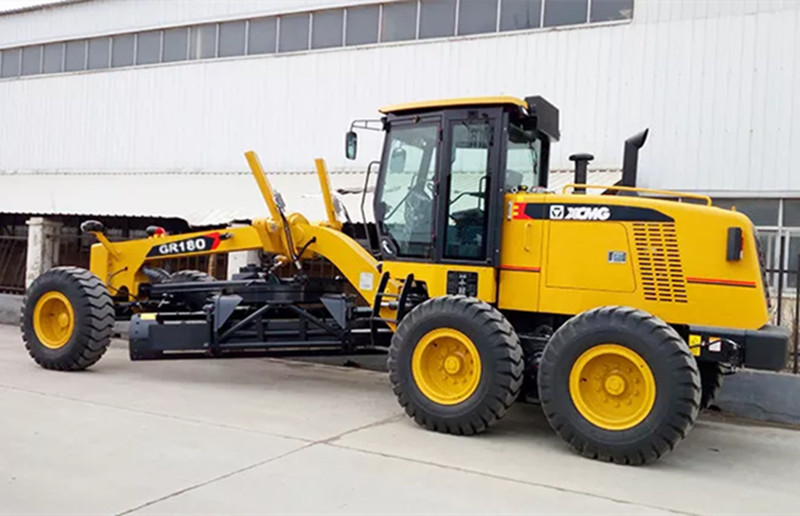

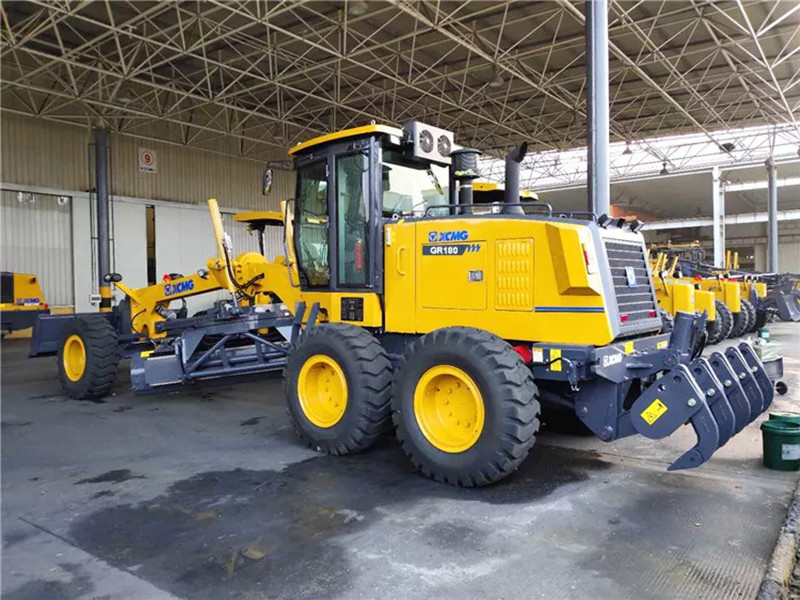

xcmg grader GR180

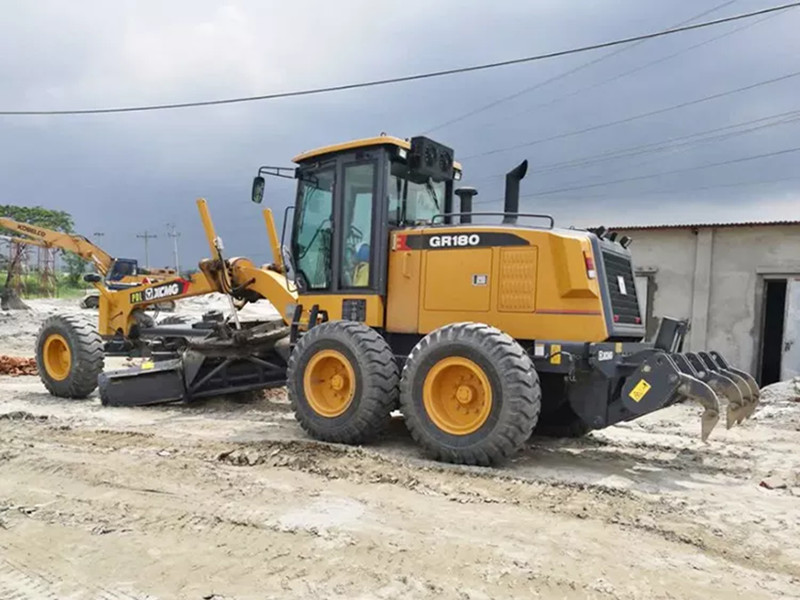

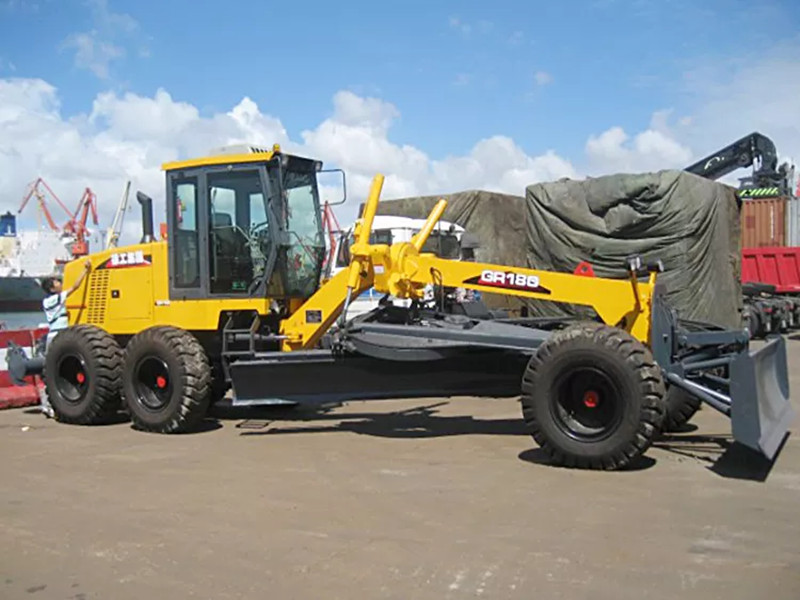

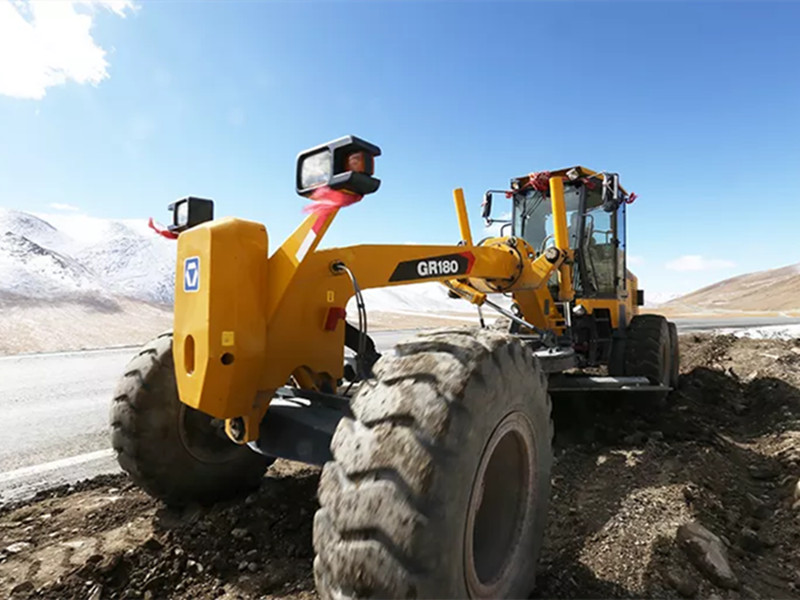

GR180 in work
