37ton 1.8 cubic heavy duty XCMG excavator XE370D

  • xcmg excavator
  • XCMG excavator XE370D

XCMG excavator XE370D

Category:

INQUIRY

37ton 1.8 cubic XCMG excavator XE370D XCMG excavator XE370D

Specification of XCMG excavator XE370D ,

XCMG official XE370D excavator machine construction 37ton excavator.
XCMG XE370D hydraulic excavator as a model featuring strong power, excellent energy saving, outstanding environmental protection and strong durability, etc., and especially suitable for earthwork engineering, mines, tunnels and other harsh construction environment.
It has adopted advanced design and manufacturing methods and the latest standards in accordance with the product design concept of “high efficiency, excellent energy saving and outstanding environmental protection”, and the ultimate target of “powerful functions, wide scope of applications and creation of more value for customers”.
1.The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.

2.The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.

3.The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.

4.The advanced structure and hinge points on the digging end and the industry’s largest rotating angle of the bucket ensure strong soil holding capacity.
Description
Unit
XE370D
Operating weight
kg
36800
Bucket capacity
1.4~1.8
Engine
Model
Engine
ISUZU GH-6HK1XKSC-03
Style
Direct injection
Four strokes
Water cooling
Turbo-charging
Air to air intercooler
No. of cylinders
6
Output power
kW/ r/min
212/2000
torque/speed
N.m
1080/1500
Displacement
L
7.79
Main performance
Travel speed(H/L)
km/h
5.4/3.2
Gradeability
%
70
Rotary speed
r/min
9.7
Ground pressure
kPa
66.7
Bucket digging force
kN
263
Arm digging force
kN
188
Hydraulic system
Main pump
K5V160DTH
Rated flow of main pump
L/min
2×304
Main safety valve pressure
MPa
34.3/37
Pressure of pilot system
MPa
3.9
Oil Capacity
Fuel tank capacity
L
660
Hydraulic tank capacity
L
350
Engine oil capacity
L
30
Appearance size
Overall length
mm
11388
Overall width
mm
3190
Overall height
mm
3530
Width of platform
mm
3050
Length of crawler
mm
5035
Overall width of chassis
mm
3190/600 Crawer、3290/700 Crawer、3390/800 Crawer
Width of crawler
mm
600
Wheel base of crawler
mm
4040
Crawler gauge
mm
2590
Clearance under counterweight
mm
1197
Min. ground clearance
mm
500
Min. rear-end swing radius
mm
3700
Working scope
Max. digging height
mm
10445
Max. dumping height
mm
7287
Max. digging depth
mm
7423
Max. digging depth at the range of level 8 feet
mm
7266
Max. vertical wall digging depth
mm
6776
Max. digging reach
mm
11114
Min. swing radius
mm
4369

excavator XCMG

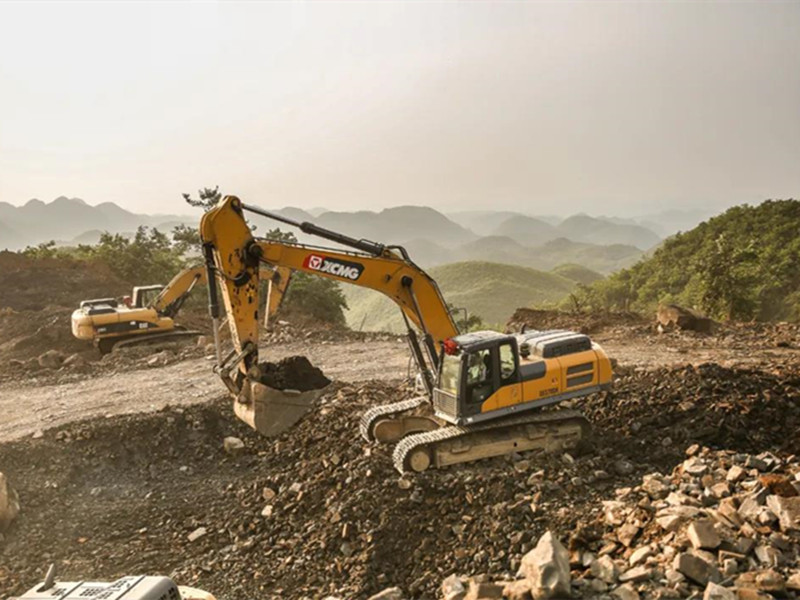

XCMG excavator XE370D in work,

XE370D
