Description
|
Unit
|

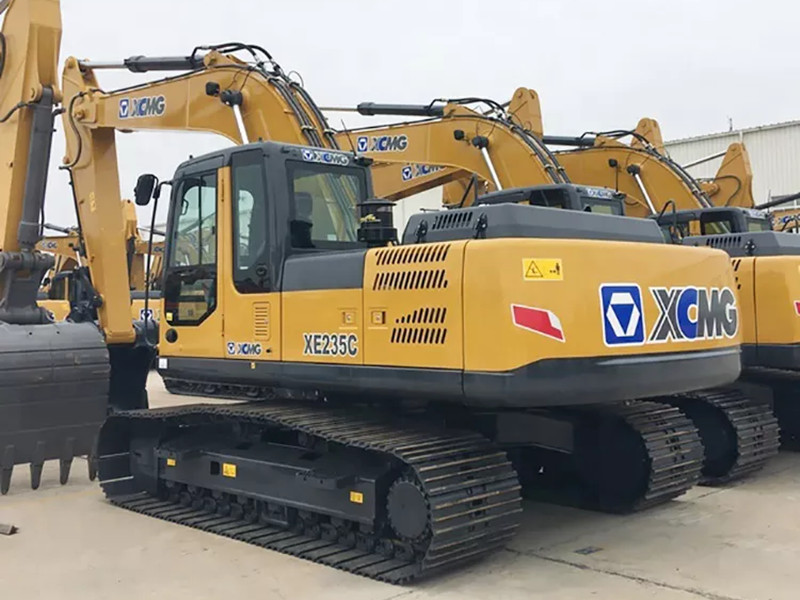

XE235C
|
||
Operating weight
|
kg
|
23500
|
||
Bucket capacity
|
m³
|
1.0~1.1
|
||
Engine
|
Model
|
Engine
|
CC-6BG1TRP
|
|
Style
|
Direct injection
|
—
|
√
|
|
Four strokes
|
—
|
√
|
||
Water cooling
|
—
|
√
|
||
Turbo-charging
|
—
|
√
|
||
Air to air intercooler
|
—
|
√
|
||
No. of cylinders
|
—
|
6
|
||
Output power
|
kW/ r/min
|
128.5/2100
|
||
torque/speed
|
N.m
|
637/1800
|
||
Displacement
|
L
|
6.494
|
||
Main performance
|
Travel speed(H/L)
|
km/h
|
6.0/4.0
|
|
Rotating speed
|
r/min
|
≤35
|
||
Gradeability
|
°
|
12.1
|
||
Ground pressure
|
kPa
|
48.9
|
||
Bucket digging force
|
kN
|
176
|
||
Arm digging force
|
kN
|
125
|
||
Maximum traction
|
kN
|
194.8
|
||
Hydraulic system
|
Main pump
|
—
|
2
|
|
Rated flow of main pump
|
L/min
|
2×246
|
||
Pressure of prime valve
|
MPa
|
34.3/37
|
||
Pressure of swing system
|
MPa
|
25
|
||
Appearance size
|
Overall length x width x height
|
mm
|
10160 x 2990 x 3100
|
|
Min. ground clearance
|
mm
|
485
|
||
Min. tail swing radius
|
mm
|
2985
|
||
Working scope
|
Max. digging height
|
mm
|
9595
|
|
Max. dumping height
|
mm
|
6725
|
||
Max. digging depth
|
mm
|
6960
|
||
Max. digging depth at the range of level 8 feet
|
mm
|
6750
|
||
Max. vertical wall digging depth
|
mm
|
6090
|
||
Max. digging reach
|
mm
|
10240
|
||
Min. swing radius
|
mm
|
3850
|
