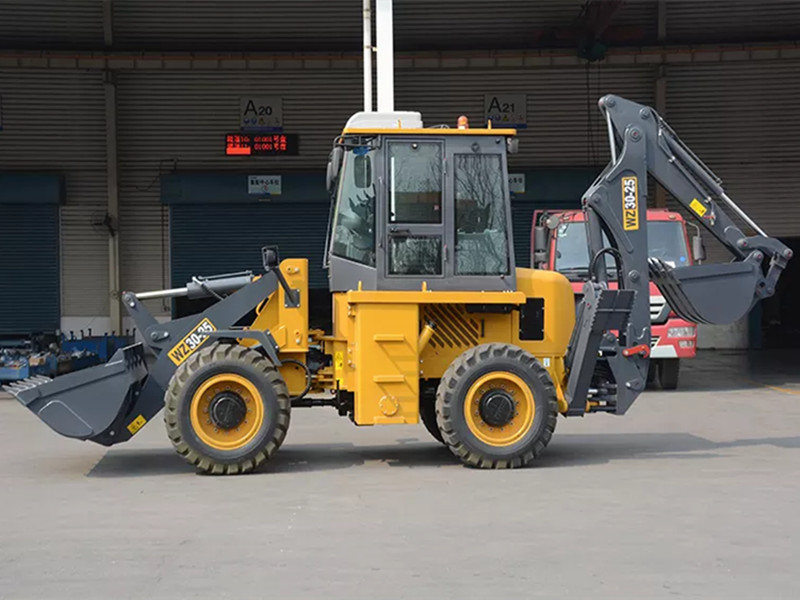

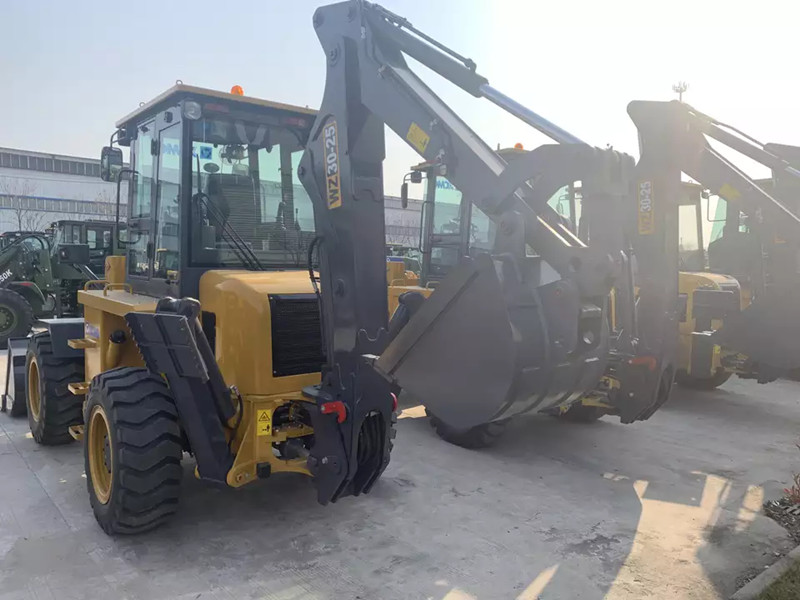

China XCMG backhoe loader WZ30-25
Features XCMG construction machinery WZ30-25 backhoe loader
The WZ30-25 is a new multi-function engineering machine which gathering the loading and excavating in the integral whole machine. It is the new generation model of the development based on the same kind product technique in domestic and international. Having adopted four wheel drive, hydraulic torque conberter, hydraulic streering system, hydrulic.
It is extensively used in the roadmaintenance, farml and developments, getting clay for making brckiln, piping builds, the cable builds, park virescence and the excavating of the road opens to dig, broking up etc.1. The Yucai engine
Low noise, low exhaust gas, low west, green environmental protection, driving motive, good reliability. The spirit valve control take type brake system and parking brake system move two unite as one, when there is trouble in the gas brake system, it can make intime brake automatically,so it is more safety.2. Humanization designs
The hand handle layout reasonable, manipulating is portable;steer device, gauge dish and the chair all can be adjusted in up-down and front-back directions according to your sense, so it is comfortable. The back wheel bridge can swing up and down round the cancer, it make wheels has well cling, so the machine has good span and cross capability.3. Optimized load work device
Reasonable joint layout,dependable position limit function. Lavelling bucket automati-cally in unload position, lacenning labor intensity,and the work range is larger, workfore is more study and steady, the work efficiency is higher.Optional parts:
4 in 1 bucket/ hammers/ Snow plough/ Augers
Specification of XCMG backhoe loader WZ30-25
Description
|
Unit
|
Parameter value
|
Bucket capacity(heaped)
|
m³
|
1
|
Digger capacity
|
m³
|
0.3
|
Dumping clearance
|
mm
|
2650
|
Dumping reach
|
mm
|
930
|
Max.steering angle
|
°
|
±35
|
Max.steering angle of dig working device
|
°
|
±85
|
Traceing speed I / II / III / IV
|
km/h
|
0-6.2 / 0-12 / 0-20 / 0-30
|
Back I / II speed
|
km/h
|
0-8 / 0-28.5
|
Diesel Model
|
|
YC4A110-T310/YC41390-T20
|
Modality
|
|
4-stroke water-cooled inline type/4-stroke water-cooled inline type
|
Rated power
|
kW
|
73.5 (Turbocharged)/65
|
Rated speed
|
r/min
|
2200
|
Wheel base
|
mm
|
2600
|
Tread
|
mm
|
1700
|
Tires
|
|
16/70-24
|
Max.digging depth
|
mm
|
4400
|
Max.digging radium
|
mm
|
5471
|
Overall dimensions(L×W×H)
|
mm
|
8000×2310×3424
|
Operating weight
|
kg
|
9500
|
Welcome to contact any time.
Sales manager: Eric Tel/whatsapp: 008615066278170 Skype: ericy-xu Email: [email protected]
