Wheel loader for sale LW600KN XCMG 6ton loader
Features of XCMG 6ton loader,
1.The super-strong heavy-duty structural parts, enhanced drive system, and globally supplied critical parts can carry the torsion and impact loads under diversified working conditions.
2.The high energy-conservation and high-efficiency hydraulic system is applied to realize higher fuel utilization efficiency and more powerful working capacity.
3.The strong breakout force of 205kn ensure that the machine could adapt to various tough condition. The high-efficiency linkage system features fast motions, high breakout force, and powerful lifting capacity.
Specification of LW600KN XCMG 6ton loader,
| Description | Unit | Parameter value |
| Rated operating load | kg | 6000 |
| Bucket capacity | m³ | 3.0～4.5 |
| Machine weight | kg | 20000±300 |
| Dump clearance at maximum lift | mm | 3170～3750 |
| Reach at maximum lift | mm | 1200～1360 |
| Wheel base | mm | 3350 |
| Tread | mm | 2265 |
| Max. breakout force | kN | 205 |
| Max. horse power | kN | 174 |
| Hydraulic cycle time-raise | s | ≤5.9 |
| Total hydraulic cycle time | s | ≤10.9 |
| Min. turning radius over tyres | mm | 6005 |
| Articulation angle | ° | 38 |
| Gradeability | ° | 28 |
| Tyre size | 23.5-25 | |

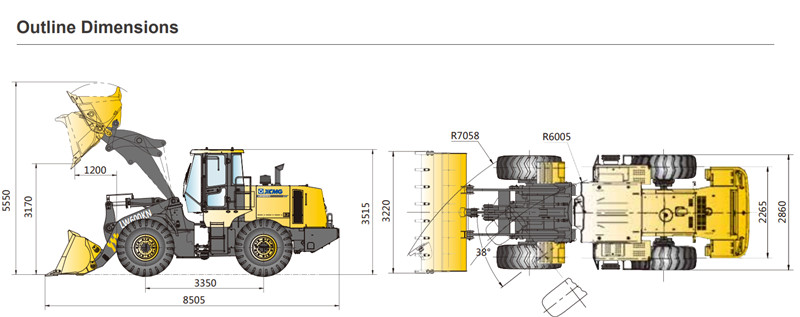

| Overall machine dimension L×W×H | mm | 8505×3220×3515 |
| Model | SC11CB240.1G2B | |
| Rated Power | kW | 178 |
| Fuel Tank | L | 250 |
| Hydraulic Tank | L | 210 |
| Travel Speed | km/h | 6-34 |

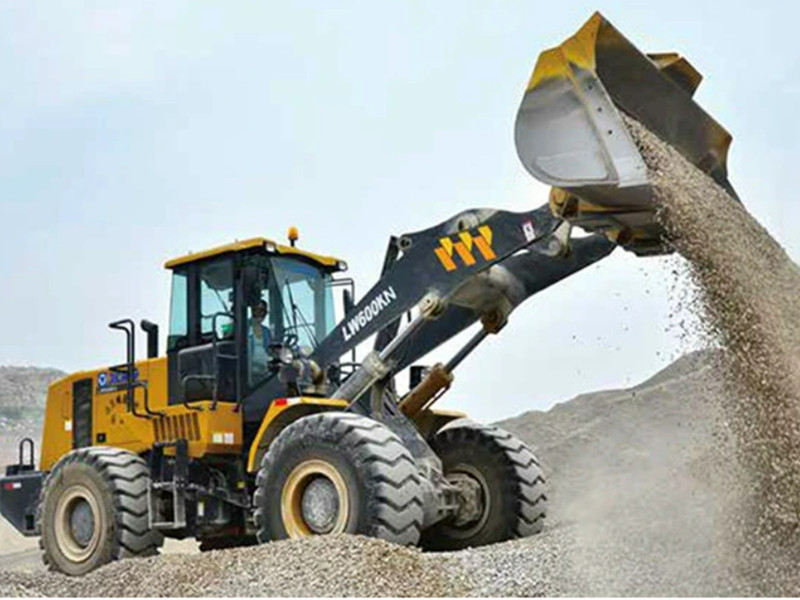

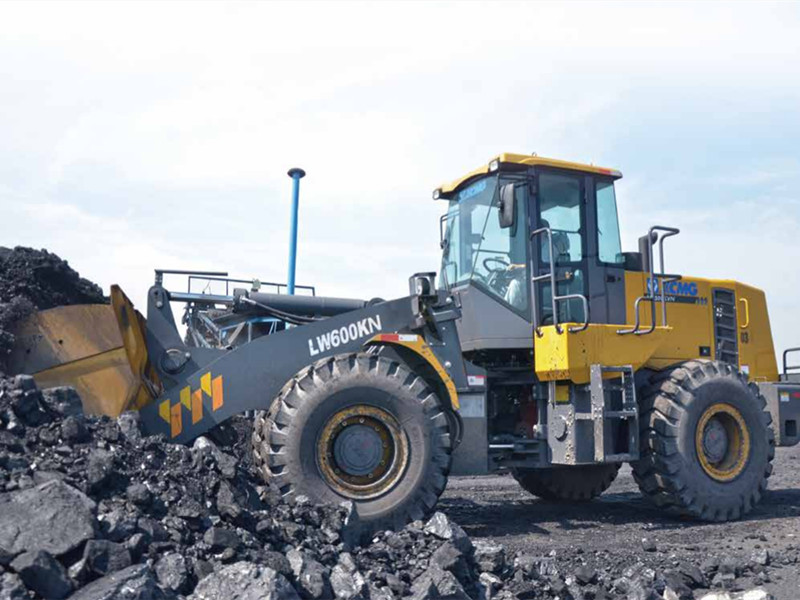

LW600KN XCMG 6ton loader in work,
LW600KN XCMG 6ton loader bulk shipping,
