●Weichai WD10 engine features the advantages of strong power, high combustion efficiency, and easy maintenance and conformed to China-II emission regulation.

●High reliability power shift transmission and the two-stage final drive with spur gear reducing structure and splash lubrication feature high durability and high operating efficiency.

●Closed system is adopted to maintain the water tank pressure at specific value and the forced air supply can enhance the cooling effect.

●Harnesses of whole machine are protected by seamless corrugated tubes to improve the reliability of electric harnesses.

●Integrally injection molded instrument panel integrates the A/C, electric devices, and instrument box, featuring beautiful appearance and high grade.

●Optimized working lamp arrangement improves the lighting performance of vehicle.

●Reversing alarm and the working warning lamp are added to provide the safety warnings during working.

●Full box-type main frame features high carrying capacity against impact load and bending moment and the high quality welds guarantee the life cycle of the main frame.

Hydraulic system of wide track dozer:

●External working valves ease the daily maintenance and realize better maintainability for the valves.

●The PPC pilot controls achieve better labor-saving and convenient operations.

●Working device system pressure is increased to 21MPa, featuring high efficiency and energy-saving.

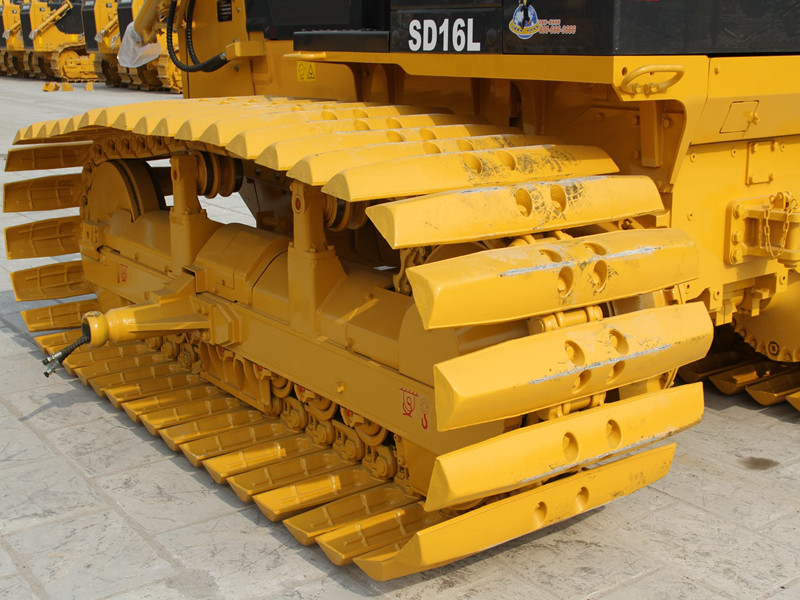

●This product features powerful traction force and durability. The rigid traveling system transmits the working load and impact load onto the main frame to guarantee the stability of machine under complicated working conditions.

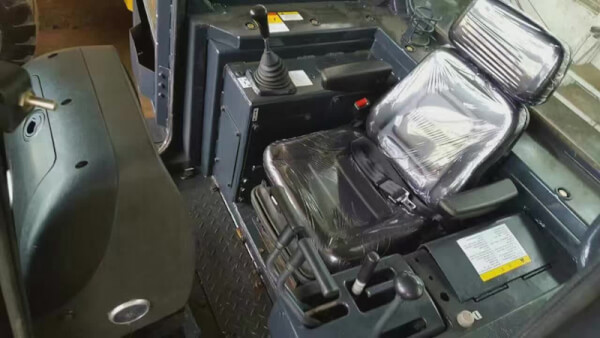

●New hexahedron cab features enlarged interior space and broader visual field.

●Mounting surface and the sealing surface of the cab are separated to achieve better sealing performance.

●Floor fender adopts the labyrinth sealing structure to reduce internal noise of the cab to 87dB.

Performance Parameters of wide track dozer,
