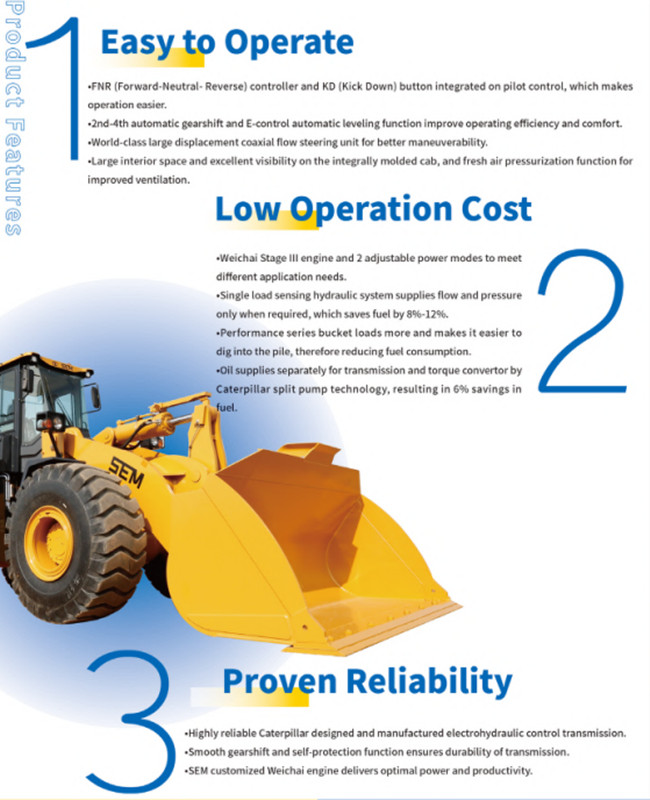

Easy to Operate,
FNR (Forward-Neutral- Reverse) controller and KD (Kick Down) button integrated on pilot control, which makes operation easier.
2nd-4th automatic gearshift and E-control automatic leveling function improve operating efficiency and comfort.
World-class large displacement coaxial flow steering unit for better maneuverability.
Large interior space and excellent visibility on the integrally molded cab, and fresh air pressurization function for improved ventilation.
Low Operation Cost,
Weichai Stage III engine and 2 adjustable power modes to meet different application needs.
Single load sensing hydraulic system supplies flow and pressure only when required, which saves fuel by 8%-12%.
Performance series bucket loads more and makes it easier to dig into the pile, therefore reducing fuel consumption.
Oil supplies separately for transmission and torque convertor by Caterpillar split pump technology, resulting in 6% savings in fuel.
Proven Reliability,
Highly reliable Caterpillar designed and manufactured electrohydraulic control transmission.
Smooth gearshift and self-protection function ensures durability of transmission.
SEM customized Weichai engine delivers optimal power and productivity.

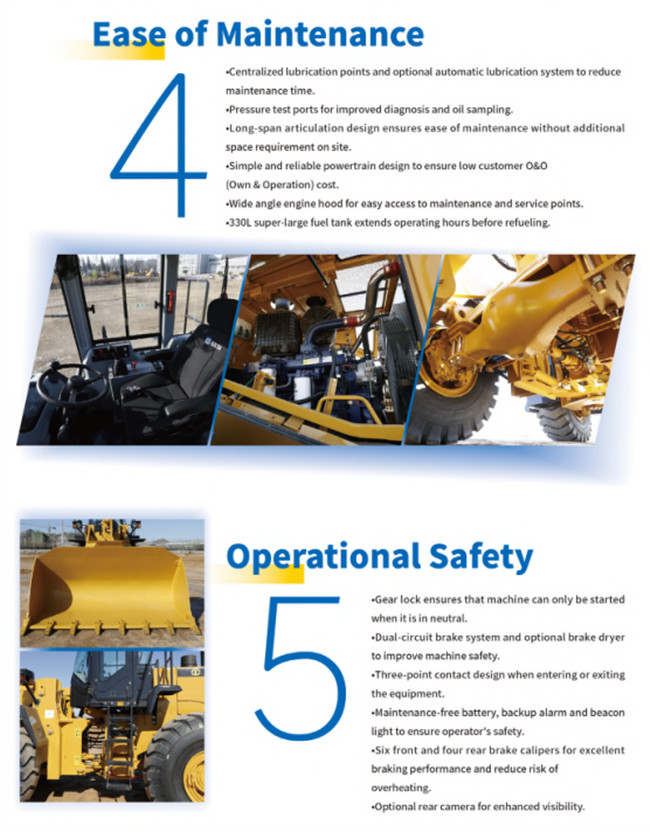

Ease of Maintenance,
Centralized lubrication points and optional automatic lubrication system to reduce maintenance time.
Pressure test ports for improved diagnosis and oil sampling.
long-span articulation design ensures ease of maintenance without additional space requirement on site.
Simple and reliable powertrain design to ensure low customer O&O (Own & Operation) cost.
Wide angle engine hood for easy access to maintenance and service points.
330L super-large fuel tank extends operating hours before refueling.
Model | |
---|---|
Model | SEM676D |
Main Specifications | |
Rated Payload | 7,000kg |
Bucket Capacity | 4.2-7.0m³ |

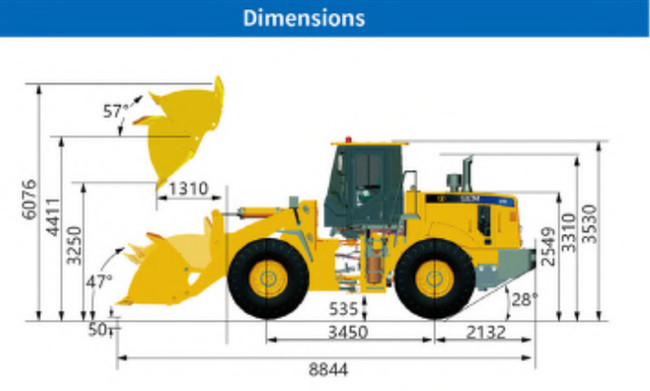

Wheel Base | 3,450mm |
Minimum Turning Radius Over Bucket | 7,790mm |
Operating Weight | 23,000kg |
Length | 8,840mm |
Width | 3,260mm |
Height | 3,530mm |
Operating Specifications | |
Breakout Force | 215kN |
Dump Clearance | 3,250mm |
Drawbar Pull Force | 208kN |
Dump Reach | 1,310mm |
Transmission | |
Transmission Type | EH Control |
Transmission Gears | F4/R3 |
Engine | |
Engine Model | Weichai WP10G270 |
Rated Power | 199kW |
Rated Speed | 2,200r/min |
Implement Hydraulic System | |
Hydraulic Cycle Time | 9.8 |
Implement Control Type | Pilot Control |
Brake System | |
Service Brake | Dry & Caliper, Air to Oil Control |
Parking Brake | Drum Type Shoe Brake |
Steering System | |
Steering Angle (L/R) | 35° |
Service Refill Capacity | |
Differential and Final Drives | |
Tires | |
Size | 26.5-25 |
Type | Bias |
Layer | 24 |
Textured Type | L3/E3 |
