Efficient Hydraulic System
Single pump flow shared system.
More efficiency and larger breakout force
Perfect match between machine speed and hydraulic system to achieve high efficiency
Joystick hydraulic control for easy and precise control
Operator Station
Premium operator station with big space and superior visibility
Patented mount provides less noise and more comfort
Adjustable suspension seat
Sliding side window and AC with fresh air circulation provide operator comfort
Single lever shifting is flexible and convenient
Adjustable air flow outlet delivers better defrost performance
Reliable Drivetrain
Countershaft transmission with upgraded core components provides high reliability
Large rim-pull in 1st gear and higher speed in 2nd gear provide high efficiency for load and carry applications
Clutch cutoff selection switch ensures stable and safe operation
Simply Torque convert and efficiency is high
Shift smooth and comfortable
Advanced Cooling System
High efficiency cooling package
Shock pad mounts ensure reliability under severe applications.
Solid Structure
Structures undergo Finite Element Analysis (FEA) and On Machine Stress Analysis (OMSA) to ensure durability
Performance Series (PS) buckets improve loading capability
Serviceabilityest ports are standard
Big angle engine hood side open door provides easy service access
Torque convertor is isolated from transmission making it easy to service
Safety
Safety design complies with all regulatory requirements.
Imported Production System (CPS) leveraged in manufacturing process
3-point touching design provides convenient operator entering to cabin
Backup alarm ensures machine safety
Machine Applications
Multiple work tools are available for selection

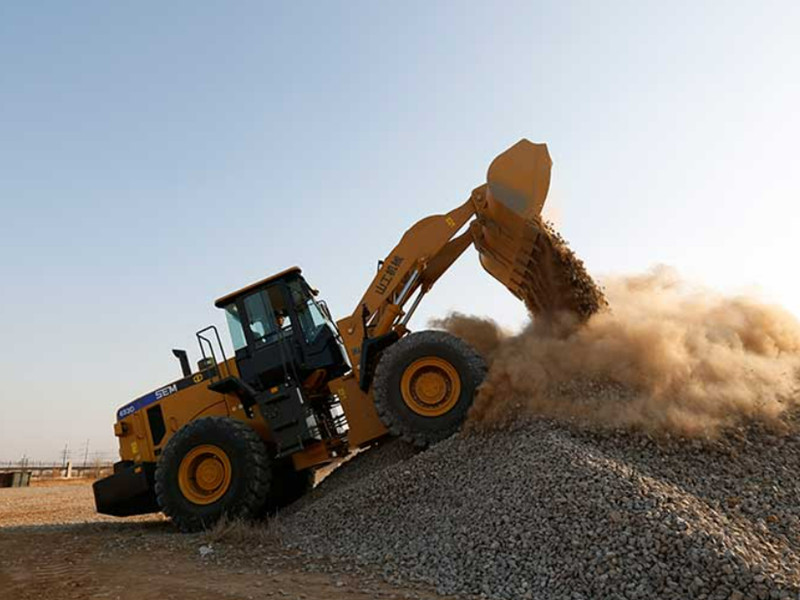

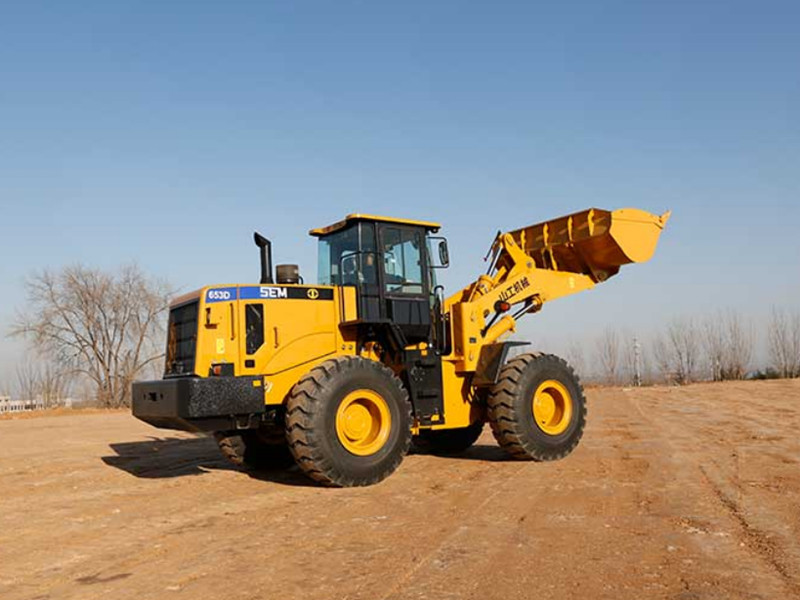

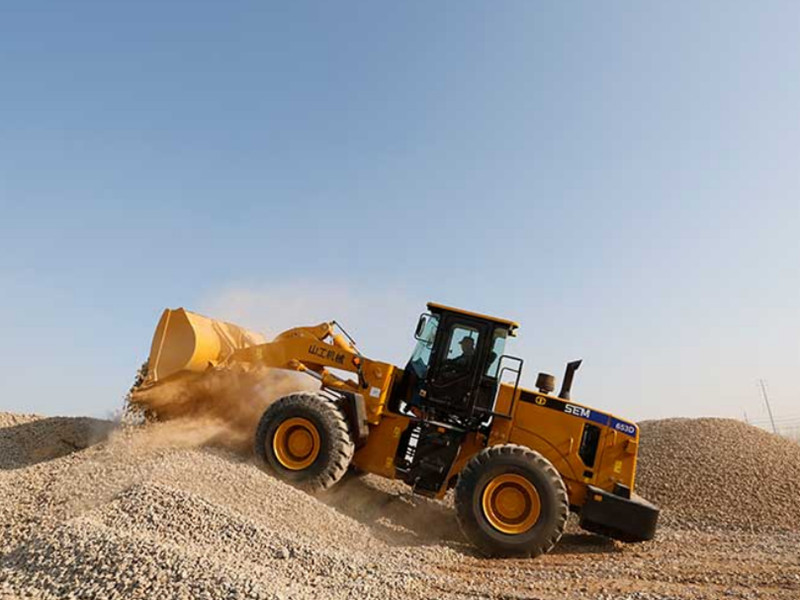

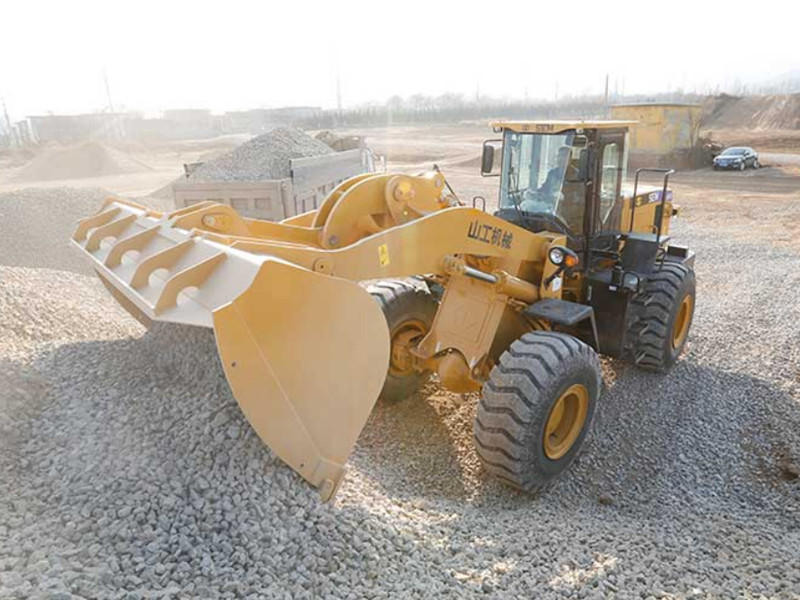

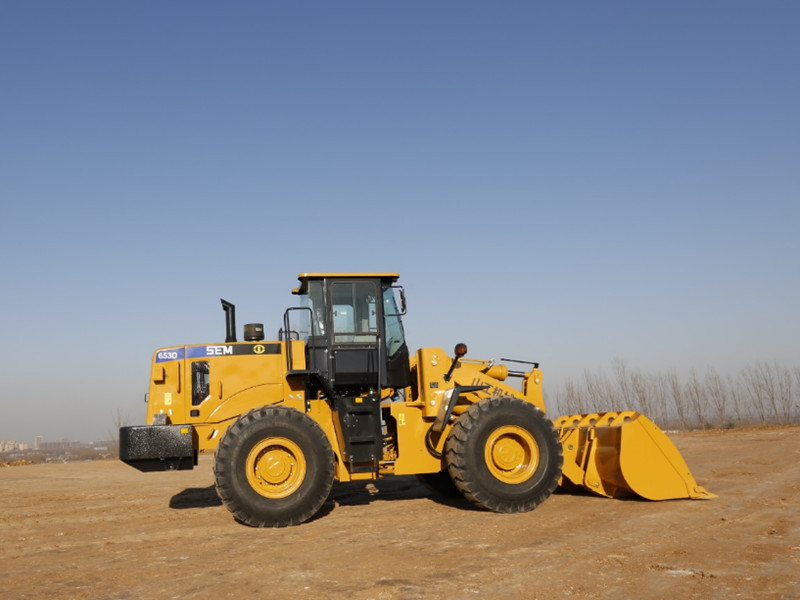

Model | 653D |
Main Specifications | |
---|---|
Rated Payload | 5,000 kg |
Operating Weight with Standard Bucket | 16,640 kg |
Bucket Capacity | 2.6-5.5 m³ |
Wheel Base | 3,200 mm |
Overall Dimension | 8,085*2,963*3,463 mm |
Operating Specifications | |
Breakout Force | 177 KN |
Max. Drawbar Force | 171 KN |
Dump Clearance | 3,102 mm |
Transmission | |
Transmission Type | Countershaft, power shift |
Transmission Gears | F4/R4 |
Torque Converter Type | Single stage, 3 elements |
Forward I/Reverse I | 7.9/7.9 |
Forward II/Reverse II | 14/14 |
Forward III/Reverse III | 22.9/22.9 |
Forward IV/Reverse IV | 39.4/39.4 |
Maker & Type | TR200 |
Axle (Axle, Tire & Brakes) | |
Main Reducer type | Spiral bevel gear, single stage |
Final Drive Reduction Type | Planetary type,single stage |
Rear- oscillation +/- | ±11 |
Engine | |
Engine Model | WD10G220E23 |
Rated Power | 162 kW |
Rated Speed | 2,000 r/min |
Displacement | 9.7 L |
Implement Hydraulic System | |
Implement System Type | Open center |
Hydraulic Cycle Time | 9.3 s |
System Pressure Setting | 18 Mpa |
Raise | 5.1 s |
Brake System | |
Service Brake | Dry&caliper,air to oil control |
Parking Brake | Drum/shoe |
Steering System | |
System Type | Shared flow |
Steering Pump Type | Gear pump |
System Pressure Setting | 16 Mpa |
Steering Angle (L/R) | 38±1 ° |
Tires | |
Size | 23.5-25 |
Type | PR |
Layer | 16 |
Textured Type | L-3/E-3 |
