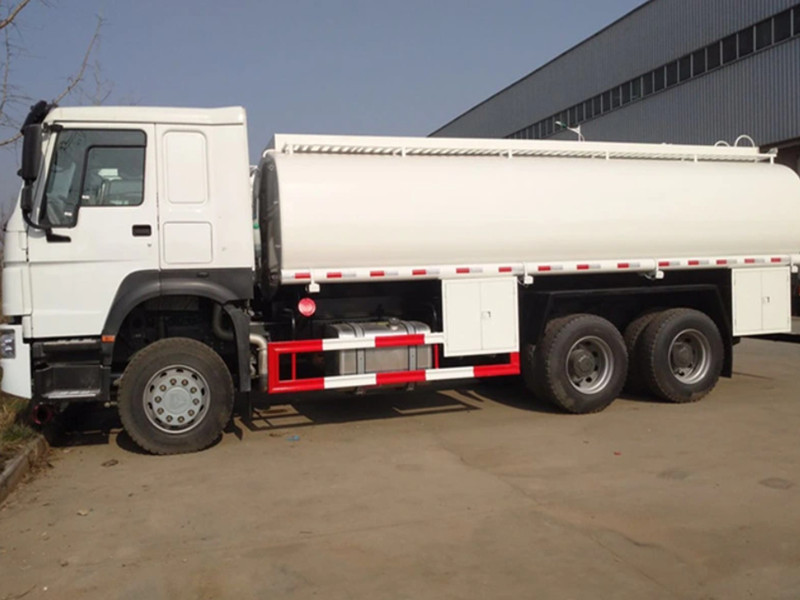

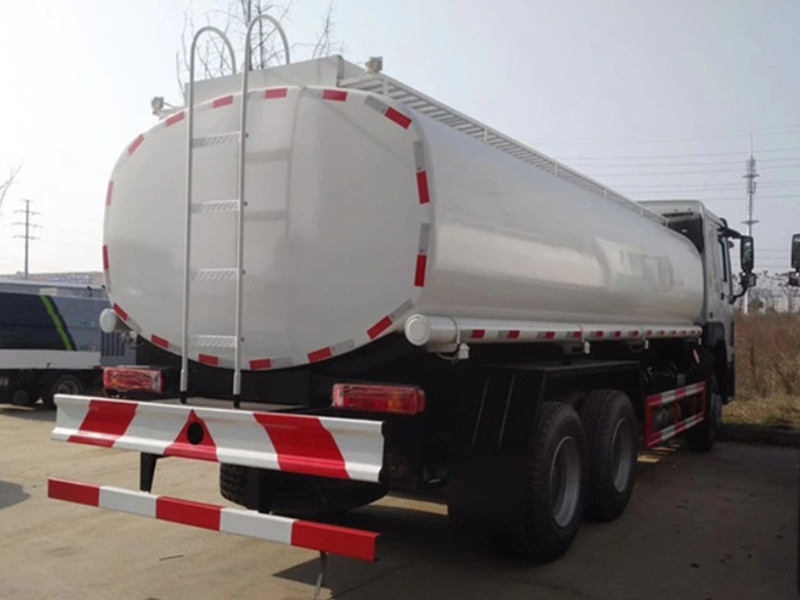

Truck Type | Sinotruk HOWO 6000 gallon fuel tank truck | |
Truck Model | ZZ1257M3247 | |
Truck Brand | SINOTRUK—HOWO | |
Driving Type | Left or Right Hand Driving | |
Dimension(Lx W x H)(mm) | 11184x2500x3050 | |
Approaching angle/Departure angle(°) | 16/10 | |
Overhang(front/rear) (mm) | 1500/3109 | |
Tank capacity | 20 m3 6000 gallon | |
Gear oil pump | Model | 76YCB-40(F) |
flux m3/h | 40 | |
In /out mm | 76 | |
RPM r/min | 960 | |
Remarks: oil pump model with F, represent relief valve, used for oil tanker truck with oil gun. | ||
Wheel base (mm) | 5225+1350 | |
Max speed(km/h) | 90 | |
Curb weight(kg) | 11670 | |
Total weight(kg) | 25000 | |
Engine | Model | WP10.300E22, water-cooled, four strokes,
6 cylinders in line with water cooling, turbocharged and inter-cooling, directly injection |
Fuel type | Diesel | |
Horse Power | 300hp | |
Emission | EURO III | |
Fuel tanker capacity(L) | 300 | |
Transmission | Model | HW19710
10 forwards and 2 reverse |
Brake system | Service brake | Dual circuit compressed air brake |
Parking brake | spring energy, compressed air operating
on rear wheels |
|
Auxiliary brake | Engine exhaust brake | |
Steering system | Model | hydraulic steering with power
Assistance Ratio:22.2-26.2 |
Front axle | HF7 disc brake, Steering with double T-cross section beam
Loading capacity: 7000kg |
|
Rear axle | HW1279, Pressed axle housing, central double
reduction with differential locks between axles and wheels Loading capacity: 12000kg |
|
Color | Optional | |
Chassis | Frame: U-profile parallel ladder frame with section of
300*80*8mm and reinforced sub frame all cold riveted cross member Front suspension: semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: semi –elliptic leaf spring and bogie springs |
|
Tire | 12.00R20, Bias tire | |
Tire quantity | 10+1 spare | |
Electrical system | Battery | 2X12V/165Ah |
Alternator | 28V-1500kw | |
Starter | 7.5Kw/24V | |
Cab | HW76 cab, with one sleeper and air-conditioner,
all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers. |
