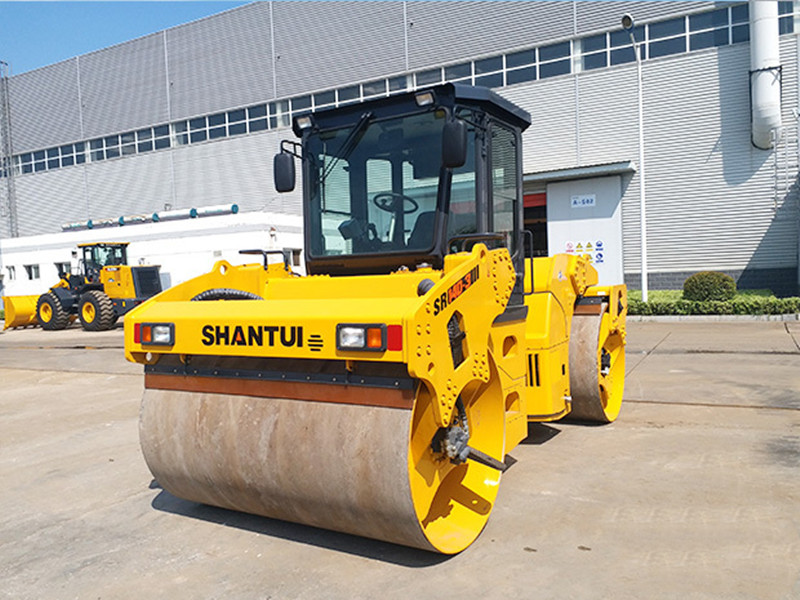

14ton asphalt double drum vibratory road roller compactor Shantui SR14D

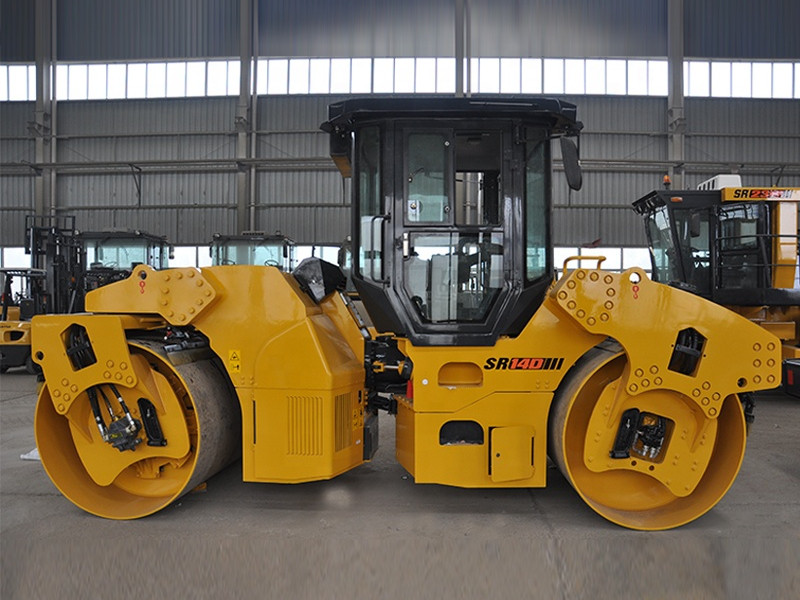

14ton double drum vibratory road roller Shantui SR14D
Features of Shantui SR14D,
New generation high-frequency electronically controlled double-drum vibratory road roller adopts the modular frame structure and the inclined drum support, featuring prominent quality and high efficiency. This product is applicable for the road base layer and medium and small filling projects and is one ideal machine for pavement of concrete roads. It can work with spreader to sufficiently play the comprehensive advantages of complete equipment set. Therefore, it’s an ideal machine for the projects of high-grade roads, modern airports, ports, and large parking lots.
Specification of Shantui SR14D
|
MODEL
|
Dual Drum Vibratory Roller Series
|
||
|
SR13D
|
SR14D-3
|
||
|
Operating weight (kg)
|
13000
|
14000
|
|
|
Axle load, front (kg)
|
6500
|
7000
|
|
|
Static linear load, front/rear (N/cm)
|
300/300
|
329/329
|
|
|
Working width (mm)
|
2130
|
2130
|
|
|
Minimum turning radius (mm)
|
3870/6000
|
5838/7968
|
|
|
Drum diameter (mm)
|
1250
|
1300
|
|
|
Vibration frequency, high amplitude/low amplitude (Hz)
|
50/50
|
51/67
|
|
|
Rated amplitude,high/low (mm)
|
0.66/0.36
|
0.8/0.3
|
|
|
Centrifugal force, high/low (KN)
|
160/86
|
170/112
|
|
|
Steering angle (°)
|
±23
|
±30
|
|
|
Oscillating angle (°)
|
±12
|
±7
|
|
|
Maximum climbing ability (%)
|
30
|
30
|
|
|
Forward speed (km/h)
|
1
|
0–10
|
0–6
|
|
2
|
–
|
0–8
|
|
|
3
|
–
|
0–12
|
|
|
4
|
–
|
–
|
|
|
Reverse speed (km/h)
|
1
|
0–10
|
0–6
|
|
2
|
–
|
0–8
|
|
|
3
|
–
|
0–12
|
|
|
4
|
–
|
–
|
|
|
Engine model
|
CUMMINS 4BTAA3.9-C
|
CUMMINS QSB4.5
|
|
|
Rated power (kW)
|
93
|
113
|
|
|
Rated speed (rpm)
|
2200
|
2200
|
|
|
Padfoot, number
|
–
|
–
|
|
|
Height of the padfoot (mm)
|
–
|
–
|
|
|

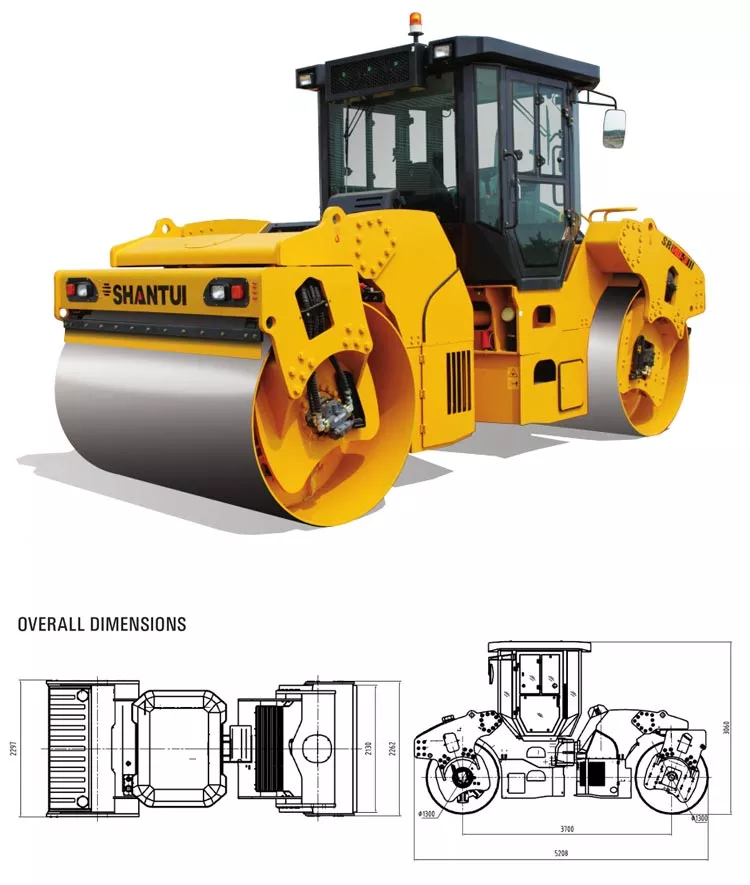

Overall length (mm)
|
5775
|
5208
|
|
|
Overall width (mm)
|
2225
|
2297
|
|
|
59 Overall height (mm)
|
3135
|
3060
|
|

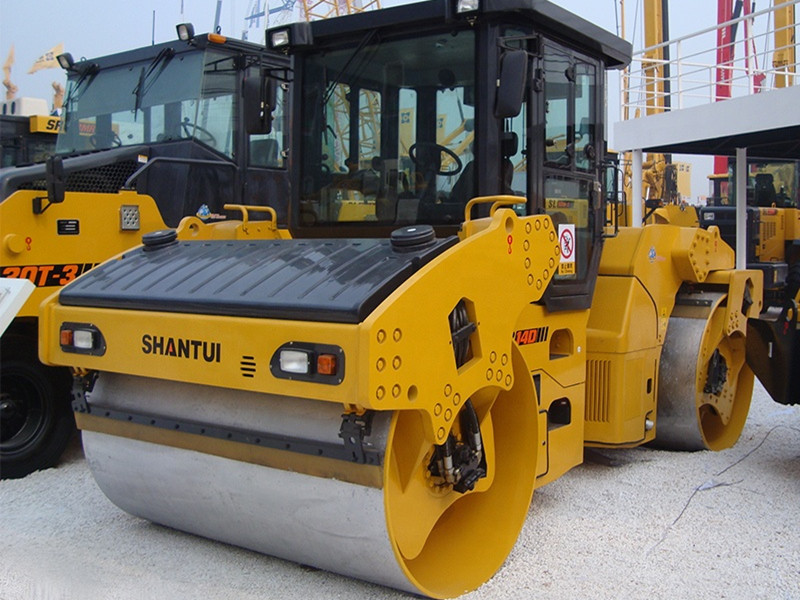

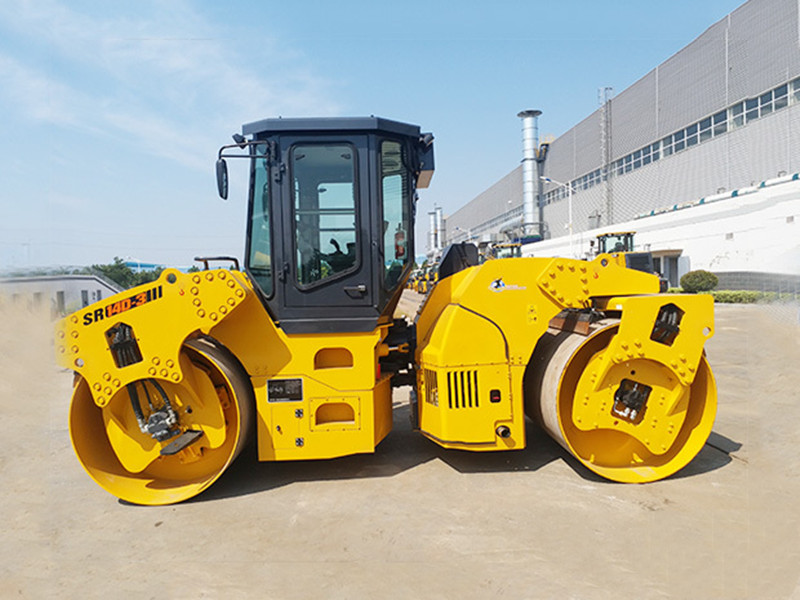

Shantui SR14D in work,
Welcome to inquire. Will send you best price quotation ASAP.
