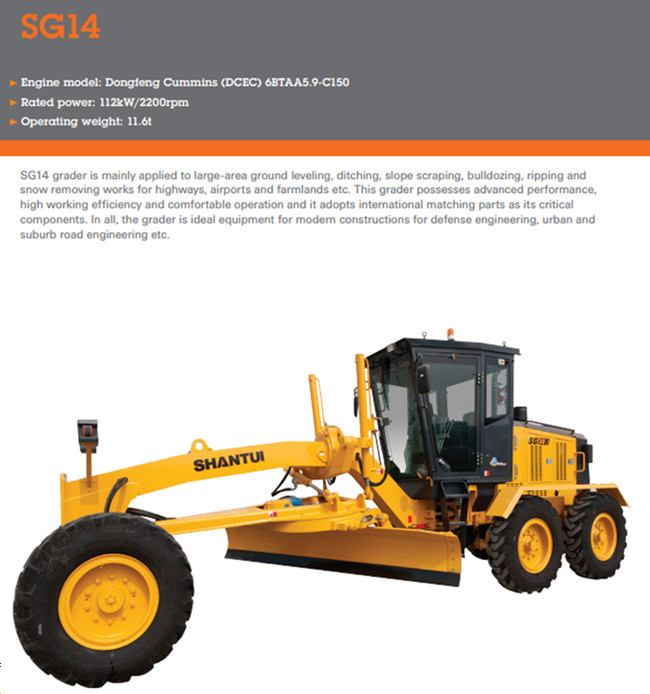

China motor grader Shantui SG14-B5 for sale
Features of Shantui SG14-B5 motor grader,
Power System
It’s powered by Dongfeng Cummins 6BTAA5.9-C150 China-II compliant inline, 4-stroke, direct injection, water-cooled, and turbocharged and intercooled diesel engine, featuring compact structure, stable performances, and high efficiency and energy-saving.
The high torque reserve enables the machine to output stable power under severe working conditions and meet your working needs. Driving/Riding Environment
The high-grade full-sealed luxury cab with full visual field and the high-efficiency shock-absorbing seat maximize the operating comfort.
The cab and the main frame are connected by shock absorber to ensure the operating safety and reliability. Working adaptability
With 6 forward gears and 3 reverse gears, the electro-hydraulically controlled power shift transmission can select the optimal gear based on the working road condition to realize the best match between traveling and operation.
The integral three-segment drive axle is built internally with imported no-spin automatic limited slip differential to guarantee stable and reliable drive.
Shantui SG14-B5 motor grader specification,
|
Product name
|
SG14-B5
|
|
Performance parameters
|
|
|
Operating weight of machine (kg)
|
11600
|
|
Wheelbase (mm)
|
5800
|
|
Wheel tread (mm)
|
2120
|
|
Minimum ground clearance (mm)
|
430
|
|
Steering angle of front wheels (°)
|
±45
|
|
Articulated steering angle (°)
|
±25
|
|
Maximum traction force (kN)
|
65
|
|
Turning radius (mm)
|
6600 (Outer side of front wheels)
|
|
Maximum gradeability (°)
|
20
|
|
Width of shovel blade (mm)
|
3660
|
|
Height of shovel blade (mm)
|
615
|
|
Blade slewing angle (º)
|
360
|
|
Blade cutting angle (º)
|
27-73
|
|
Maximum digging depth of blade (mm)
|
500
|
|

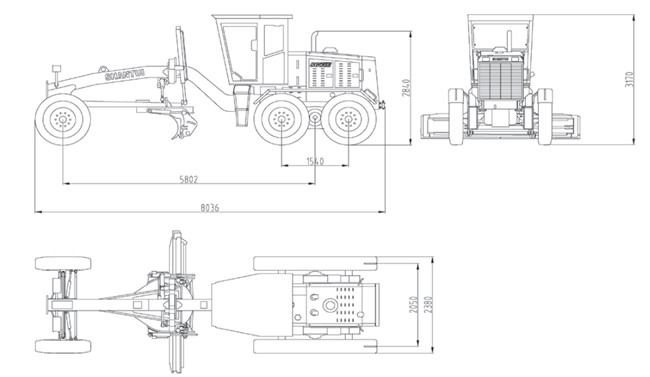

Length (mm)
|
8040
|
|
Width (mm)
|
2380
|
|
Heigh (mm)
|
3170
|
|
Engine
|
|
|
Engine model
|
6BTAA5.9-C150
|
|
Emission
|
China-II
|
|
Type
|
Mechanical direct injection
|
|
Rated power/rated speed (kw/rpm)
|
112kW/2200
|
|
Drive system
|
|
|
Torque converter
|
Single-stage single-phase three-element
|
|
Transmission
|
Countershaft power shift
|
|
Gears
|
Six forward and three reverse
|
|
Speed for forward gear I (km/h)
|
5.4
|
|
Speed for forward gear II (km/h)
|
8.3
|
|
Speed for forward gear III (km/h)
|
13.2
|
|
Speed for forward gear IV (km/h)
|
20.6
|
|
Speed for forward gear V (km/h)
|
29.6
|
|
Speed for forward gear VI (km/h)
|
44
|
|
Speed for reverse gear I (km/h)
|
5.4
|
|
Speed for reverse gear II (km/h)
|
13.2
|
|
Speed for reverse gear III (km/h)
|
29.6
|
|
Brake system
|
|
|
Service brake type
|
Hydraulic brake
|
|
Parking brake type
|
Mechanical brake
|
|
Brake oil pressure (MPa)
|
10
|
|
Hydraulic system
|
|
|
Working pump
|
Constant displacement gear pump, with displacement at 28ml/r.
|
|
Operating valve
|
Integral multi-way valve
|
|
Pressure setting of safety valve (MPa)
|
16
|
|
Pressure setting of safety valve (MPa)
|
12.5
|
|
Filling of fuel/oils/fluids
|
|
|
Fuel tank (L)
|
240
|
|
Working hydraulic fuel tank (L)
|
85
|
|
Transmission (L)
|
28
|
|
Drive axle (L)
|
28
|
|
Balance box (L)
|
2X23
|

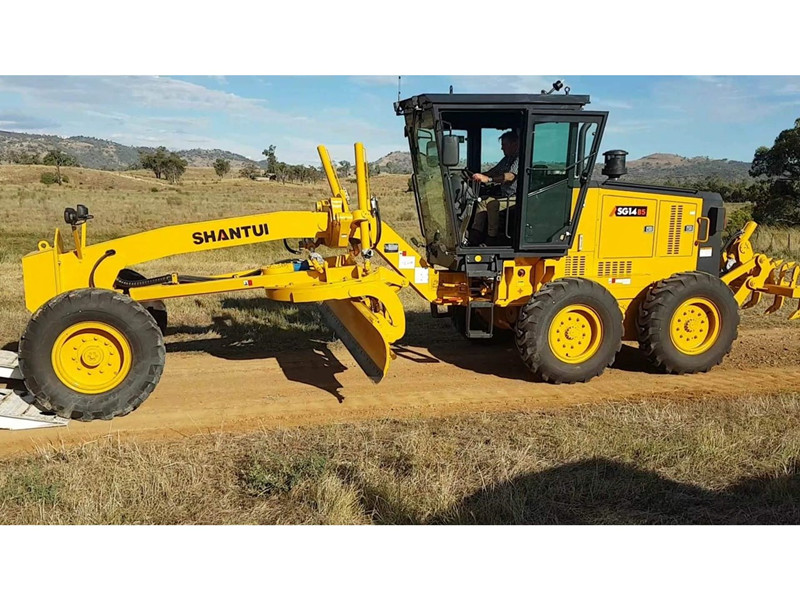

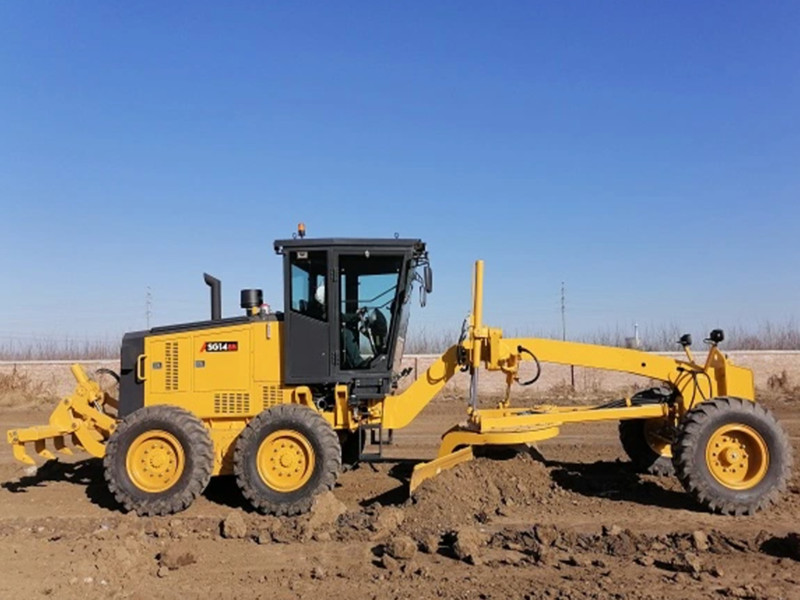

Shantui SG14-B5 motor grader in work,
