Shantui SD16R 160hp sanitation dozer

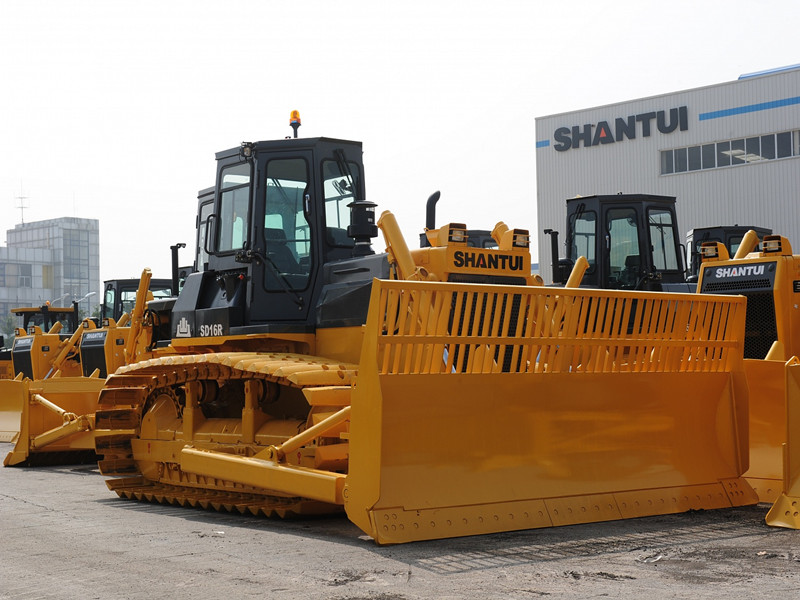

Shantui SD16R Sanitation Bulldozer

SD16R sanitation bulldozer is developed in response to the operation demands of sanitation treatment sites in domestic cities and is applicable for the landfill, leveling, semi-compacting, and stacking operations in waste yards as well as the traction of steel garbage chute and treatment tank station.

Technical Features
The equipped 8.3m3 sanitation blade features powerful cutting force and durability and can efficiently handle all kinds of working faces and the operation tasks for sanitation treatment sites. The unique heightened part on the top of the blade can prevent the ingress of handled material into rear side of blade.
It’s an ideal operation machine for sanitation treatment sites, wetlands, and swamps.

Performance parameters
Length × width × height (mm) (excluding ripper): 5262×4150×3074
Operating weight(t) (excluding ripper) : 17.7
Engine model: WD10G178E25/ SC11CB184G2B1
Net power/rated speed (kW/rpm): 120/1850
Ground pressure(Mpa) :0.027
Blade type: Sanitation blade
Blade capacity(m3): 8.3 for sanitation blade

Shantui SD16R Applicable working conditions:

Landfill, leveling, semi-compacting, and stacking operations.

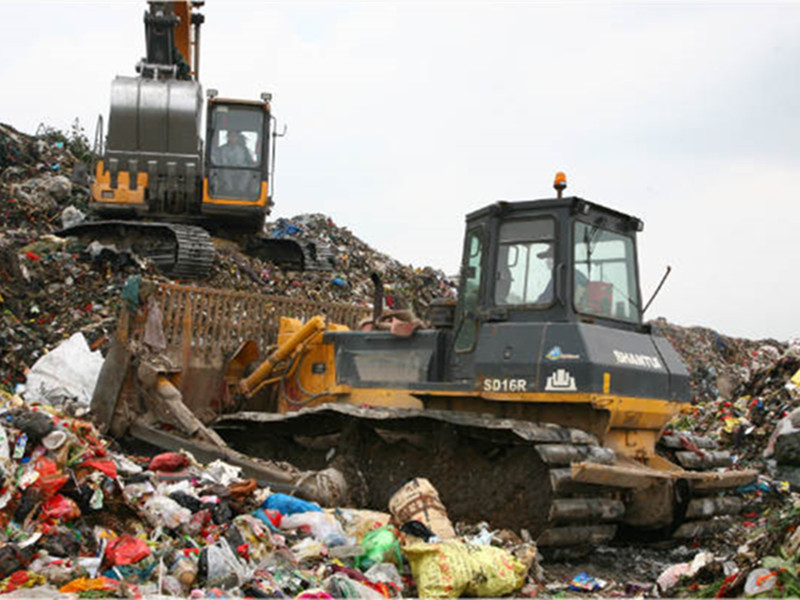

Shantui SD16R working in waste yard,
