China famous brand 20ton Shantui road roller SR20 with low price
China 20ton single rum Shantui road roller compactor Shantui SR20
Features of Shantui road roller,
Shantui series road rollers mainly include mechanical vibratory road roller with single steel wheel, full-hydraulic vibratory road roller with single steel wheel, static rolling type, double steel wheel and pneumatic tyred rollers. They are mainly used in compaction of airport, road, mine, dam, railway and other construction sites. Shantui road roller possesses excellent compaction performance, outstanding working efficiency and strong power, and its cab possesses good view, and is configured with air conditioner and efficient shock absorption seat, thus enhancing operation comfort in an all-round way, and it also possesses relatively high reliability for it adopts imported hydraulic system. Shantui road roller can be configured with compactness measuring instrument to monitor and detect the compaction process automatically.
|

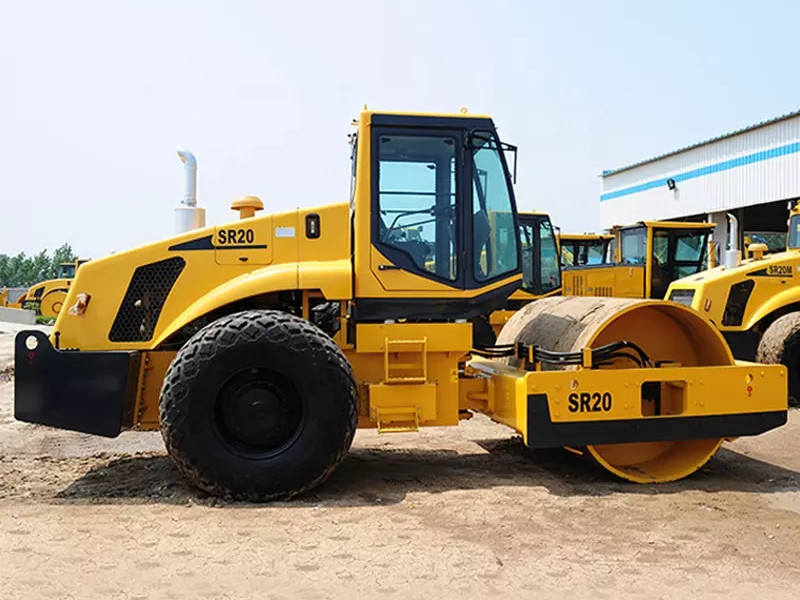

SR20 full hydraulic single drum vibratory roller
|
|||
|
product name
|
Full hydraulic single drum vibratory roller
|
||
|
SR20-3
|
|||
|
Quality (kg)
|
Total mass
|
19830
|
|
|
Front wheel
|
12630
|
||
|
rear wheel
|
7200
|
||
|
Dimensions (mm)
|
full length
|
6232
|
|
|
Full width
|
2422
|
||
|
Full height
|
3372
|
||
|
Theoretical climbing ability (%)
|
48
|
||
|
Vibration wheel (mm)
|
width
|
2140
|
|
|
diameter
|
1550
|
||
|
Static line load (n/cm)
|
590
|
||
|
Amplitude (mm)
|
high
|
1.8
|
|
|
low
|
0.93
|
||
|
Vibration frequency (Hz)
|
high
|
33
|
|
|
low
|
28
|
||
|
Excitation force (kN)
|
High amplitude
|
353
|
|
|
low amplitude
|
245
|
||
|
Minimum turning radius (mm)
|
6100
|
||
|
Wheelbase (mm)
|
3140
|
||
|
engine model
|
SC8DK190G3
|
||
|
Rated power (kW)
|
140
|
||
|
Fuel tank capacity (L)
|
300
|
||
|
Driving speed (km/h)
|
Forward I
|
0-5.2
|
|
|
Forward II
|
0-7.2
|
||
|
Forward III
|
0-12.7
|
||
|
Forward IV
|
/
|
||
|
Back I
|
0-5.2
|
||
|
Back II
|
0-7.2
|
||
|
Back III
|
0-12.7
|
||
|
Back IV
|
/
|
||
