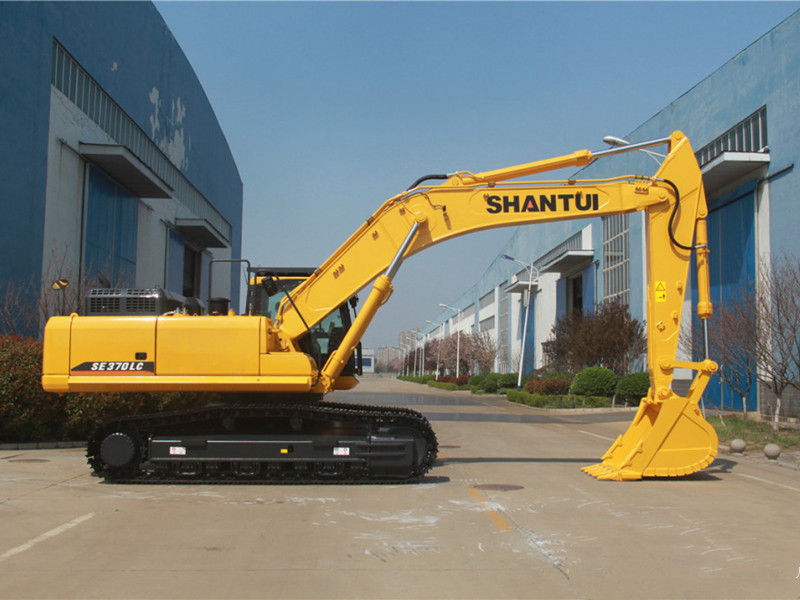

Excavator for mining with Cummins engine Shantui excavator SE370LC 37ton excavator

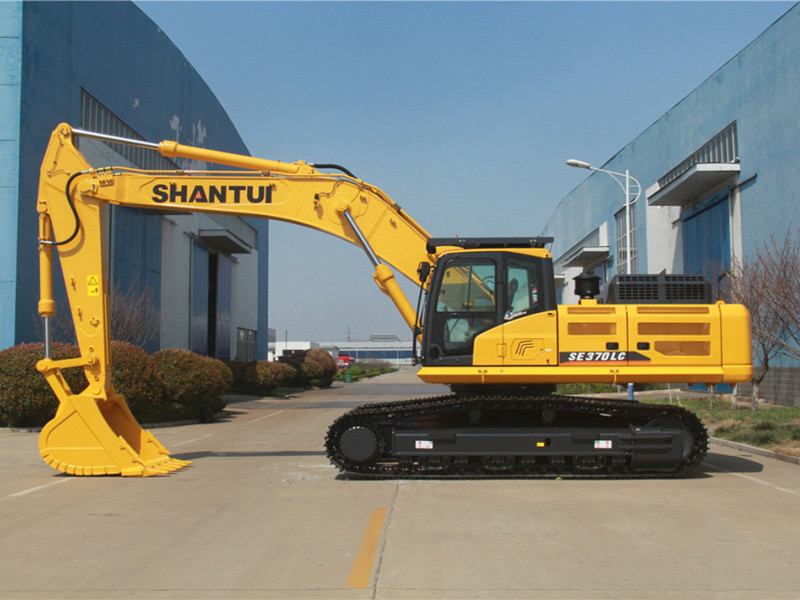

37ton excavator for mining Shantui excavator SE370LC
Specification of mining excavator Shantui SE370LC
| Engine | Model | Cummins QSL9 |
| Type | High pressure and common rail,
air air intercooled, turbocharging |
|
| Quantity of cylinders | 6 | |
| Bore x stroke | 114x 145 mm | |
| Displacement | 8.9 L | |
| Power output | 214 kW | |
| Hydraulic System | Pump | lmported |
| Type | Double piston pump plus gear pump | |
| Maximum discharge flow | 2 x 300+27 L/min | |
| Travel System | Travel motor | Variable axial piston motor |
| Travel brakes | Lubricated double-disc | |
| Parking brake | Pressure release | |
| Travel shoes | 2 x49 | |
| Travel speed | 3.0/4.9 km/h | |
| Drawbar pulling force | 315 kN | |
| Gradeability | 70% (35°) | |
| Minimum ground clearance | 565 mm | |
| Oil Capacity | Fuel tank | 550 L |
| Cooling system | 35 L | |
| Engine oil | 24 L | |
| Hydraulic oil tank | 366 L | |
| Swing System | Brake | Pressure Release Mechanical Braking |
| Swing speed | 10.5 rpm | |
| Tail swing radius | 3520 mm . | |
| Arm digging force | 174 KN | |
| Bucket digging force | 254 KN | |
| Bucket | Bucket capacity | 1.8 m3 |
| Number of bucket teeth | 5 | |
| Bucket width | 1730 mm | |
| Arm length | 3.186 m | |
| Maximum digging reach/ Maximum digging reach at ground level |
11.12 m/10.915 m . | |
| Maximum digging depth/height | 7.34 m/10.05 m | |
| Maximum dumping height | 7.09 m . | |
| Minimum swing radius | 4.335 m |
