| Comparative item |

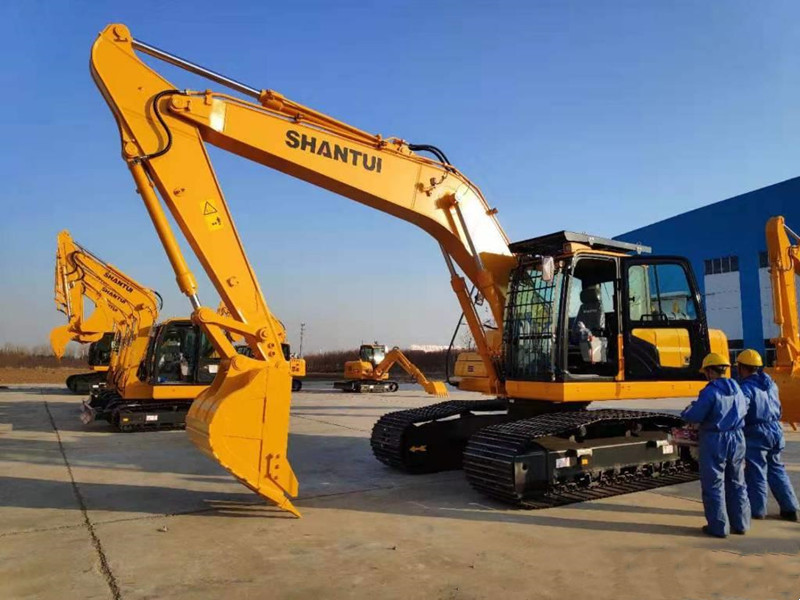

SE210 |
| Overall dimensions |
|
| Overall length (mm) |
9543 |
| Ground length (During transport) (mm) |
4860 |
| Overall height (To the top of boom) (mm) |
3039 |
| Overall width (mm) |
2800 |
| Overall height (To top of cab) (mm) |
2977 |
| Ground clearance of counterweight (mm) |
1120 |
| Minimum ground clearance (mm) |
470 |
| Tail turning radius (mm) |
2905 |
| Track length (mm) |
4160 |
| Track gauge (mm) |
2200 |
| Track width (mm) |
2800 |
| Standard track shoe width (mm) |
600 |
| Turntable width (mm) |
2726 |
| Distance from slewing center to tail (mm) |
2853 |
| Working range |
|
| Maximum digging height (mm) |
10029 |
| Maximum dumping height (mm) |
7320 |
| Maximum digging depth (mm) |
6541 |
| Maximum vertical digging depth (mm) |
5735 |
| Maximum digging distance (mm) |
9860 |
| Maximum digging distance at ground level (mm) |
9673 |
| Working device minimum turning radius (mm) |
3041 |
| Maximum lifting height of bulldozer blade (mm) |
– |
| Maximum digging depth of bulldozer blade (mm) |
– |
| Engine |
|
| Model |
Weichai WP7(China III) |
| Type |
6-cylinder, high pressure common rail, and water-cooled and turbocharged |
| Displacement (L) |
7.14 |
| Rated power (kW/rpm) |
116/2000 |
| Hydraulic system |
|
| Type of hydraulic pump |
Variable displacement duplex plunger pump |
| Rated working flow (L/min) |
2×218 |
| Bucket |
|
| Bucket capacity (m³) |
0.9 |
| Swing system |
|
| Maximum swing speed (r/min) |
11.5 |
| Brake type |
Mechanically applied and pressure released |
| Digging force |
|
| Bucket arm digging force (KN) |
92.5/99.5 |
| Bucket digging force (KN) |
115/124 |
| Operating weight and ground pressure |
|
| Operating weight (kg) |
20500 |
| Ground pressure (kPa) |
45 |
| Traveling system |
|
| Traveling motor |
Axial variable displacement plunger motor |
| Traveling speed (km/h) |
3.3/5.4 |
| Traction force (KN) |
201 |
| Gradeability |
70%（35°） |
| Tank capacity |
|
| Fuel tank capacity (L) |
360 |
| Cooling system (L) |
25 |
| Engine oil capacity (L) |
24 |
| Hydraulic oil tank/system capacity (L) |
250/420 |
