Low speed engine with E-fan provides increased operating efficiency
Enhanced fuel pre-filter eliminates water and contaminant from fuel for best fuel system protection
The air cleaner provides machine reliability even in the most severe applications

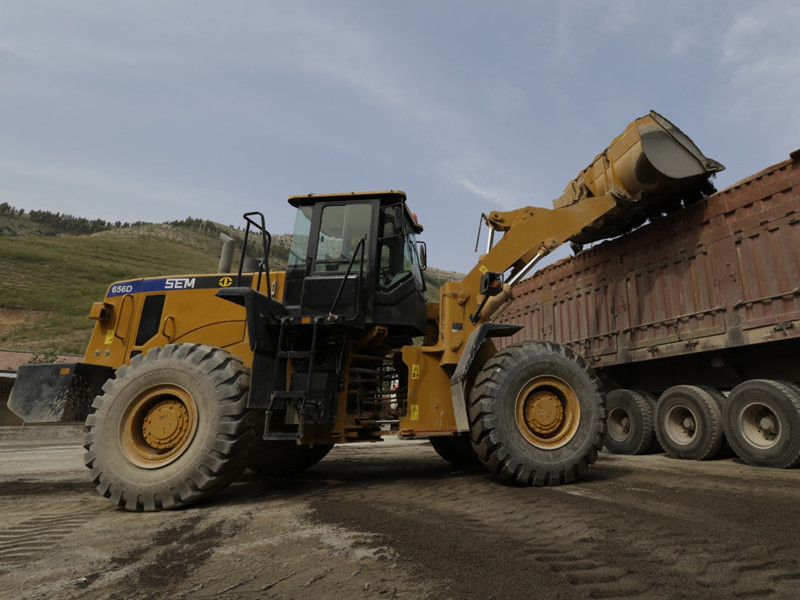

The sturdy design of the SEM 656D makes it the perfect machine for port cargo handling, mineral yards, steel mills and other high demand applications

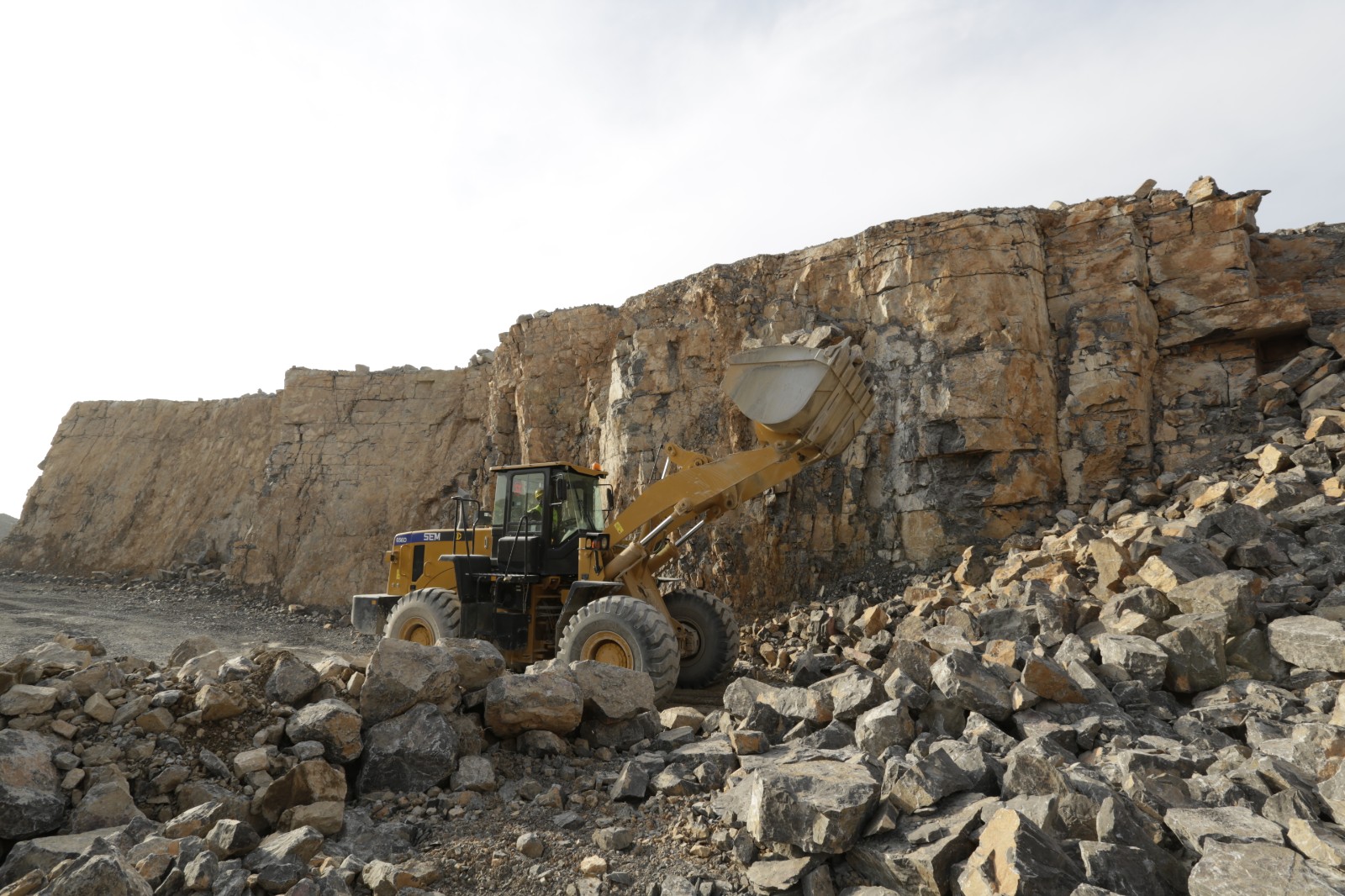

In Quarry and Aggregate and Coal Mining applications the 656D can load more, move faster and burn less fuel
Multiple work tools are available for increased versatility
The advanced load sensing hydraulic system with flow sharing circuits improves efficiency
World Class hydraulic components ensure high reliability
The optimized hydraulic system paired with the drive train reduces machine cycle time and increases productivity
Premium operator station with increased space and superior visibility
Sliding side window and AC with fresh air circulation provide operator comfort
Joystick hydraulic control for easy and precise operation
Multi-function instrument dashboard with 3-level alarm
Adjustable suspension seat
Countershaft transmission with upgraded core components provides high reliability
Large rim-pull in 1st gear and higher speed in 2nd gear provide high efficiency for load and carry applications
Clutch cutoff selection switch ensures stable and safe operation
The SEM designed and built axle provides best in class performance in heavy duty applications
The standard cooling package provides high reliability in 50℃ ambient conditions.
Shock pad mounts ensure reliability under severe applications
Structures undergo Finite Element Analysis (FEA) and On Machine Stress Analysis (OMSA) to ensure durability
Performance Series (PS) buckets improve loading capability
Safety design complies with all regulatory requirementsMachine is designed with 3 points
of contact to ensure operator safety
A backup alarm, horn and beacon ensure operational safety with ground personnel
Caterpillar Production System (CPS) leveraged in manufacturing process
Environmentally friendly painting process
Model | ||
---|---|---|
Model | SEM656D – Weichai | SEM656D – Cummins |
Main Specifications | ||
Rated Payload | 5,000kg | 5,000kg |
Operating Weight with Standard Bucket | Weichai-16,900kg | Cummins-16,800kg |
Bucket Capacity | 2.7-4.5m³ | 2.7-4.5m³ |
Operating Specifications | ||
Breakout Force | 178kN | 178kN |
Transmission | ||
Transmission Gears | F4/R4 | F4/R4 |
Torque Converter Type | Sigle stage 3 elements | Sigle stage 3 elements |
Maker & Type | TR200 | TR200 |
Axle (Axle, Tire & Brakes) | ||
Main Reducer type | Spiral bevel gear, single stage | Spiral bevel gear, single stage |
Final Drive Reduction Type | Planetary type, singe stage | Planetary type, singe stage |
Rear- oscillation +/- | ±11° | ±11° |
Engine | ||
Engine Model | Weichai WD10G | Cummins 6LT9.3 |
Rated Power | 162kW | 162kW |
Rated Speed | 2,000r/min | 2,000r/min |
Displacement | 9.7L | 9.2L |
Implement Hydraulic System | ||
Implement System Type | Single load sensing flow sharing system | Single load sensing flow sharing system |
Hydraulic Cycle Time | 9.3s | 9.3s |
System Pressure Setting | 18Mpa | 18Mpa |
Raise | 5.13s | 5.13s |
Brake System | ||
Service Brake | Dry & caliper, air to oil control | Dry & caliper, air to oil control |
Parking Brake | Drum type shoe brake, spring applied & oil released | Drum type shoe brake, spring applied & oil released |
Service Refill Capacity | ||
Fuel Tank | 252L | 252L |
Engine Lubricating Oil | 21L | 21L |
Hydraulic System | 165L | 165L |
Transmission Oil | 53L | 53L |
Tires | ||
Size | 23.5-25 | 23.5-25 |
Type | Bias | Bias |
Layer | 16 | 16 |
