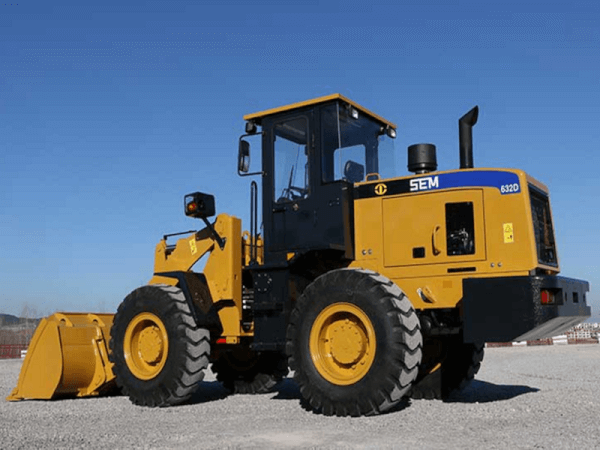

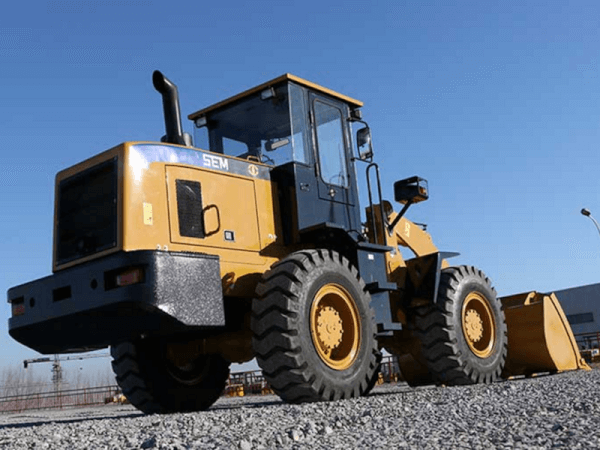

China SEM632D 3 ton SEM wheel loader 632D

  • SEM wheel loader 632D

SEM wheel loader 632D from Caterpillar

Category:

INQUIRY

China 3 ton wheel loader 632D from Caterpillar

Features of the 3m3 wheel loader,

3m3 loader SEM wheel loader price 652D featres,

SEM wheel loader 632D Multiple applications,

  • Large volume earth moving
  • Hopper feeding
  • Coal loading
  • Sand loading
  • Construction
  • Mining

SEM wheel loader 632D adopts Weichai powerful engine

  • High efficiency
  • Low fuel consumption

Advanced cooling system

Solid structure

Machine Applications

  • The sturdy design of the 632D makes it the perfect machine for large volume earthmoving applications
  • In Hopper feeding and Coal loading applications the 632D can load more, move faster and burn less fuel
  • Multiple work tools are available for increased versatility

Specification of SEM wheel loader 632D

Bucket 1.7m 3
Rated load 3000kg
Operation weight 9970kg
Static tilting load at full steering position 60kn
Max digging force 128kn
Maximum tractive force 91kn
Max. climbing gradient 30°
Lifting time 4.9s
The sum of three items 9s
Dimension 6954mm×2440mm×3190mm
Engine
Model Wechai
Rated power 92kw
Rated speed 2300r/min
Bore × stroke 100mm× 125mm
Max. torque 460 kn/m
Displacement 7.13 L
Brake system
Traveling break type Air assisted caliper disc type four wheel brake
Parking break type Shoe break
Transmission system
Hydraulic torque converter Single-stage three elements
Gear box SEM TRN150 Arbre fixe
1st 7.4km
2nd 13.7km
3rd 25.3km
4th 41.5km
Reverse 1st 9.3km
2nd 30.5km
Steering system
Type Articulated transfer
Steering angle 38°
Hydraulic system Load-sensing hydraulic steering system
Axle
Type All wheel drive , Fixed front axle , swing rear axle ,±12°
Work hydraulic system
Working system pressure 16.5Mpa
Bucket delivery time 1.07s
Movable arm lifting time 4.82s
Descending time of movable arm 3.24s
Working Valve Control Type First manipulation
Tires
Standard configuration size of tyre 17.5-25
Oil tank capacity
Fuel tank 151L
Hydraulic oil tank 138L

wheel loader SEM632D

























Shipping by bulk or RORO or in container with cab and tires disassembled.

5ton wheel loader shipping
