Best price Cat brand 3ton SEM 636 wheel loader

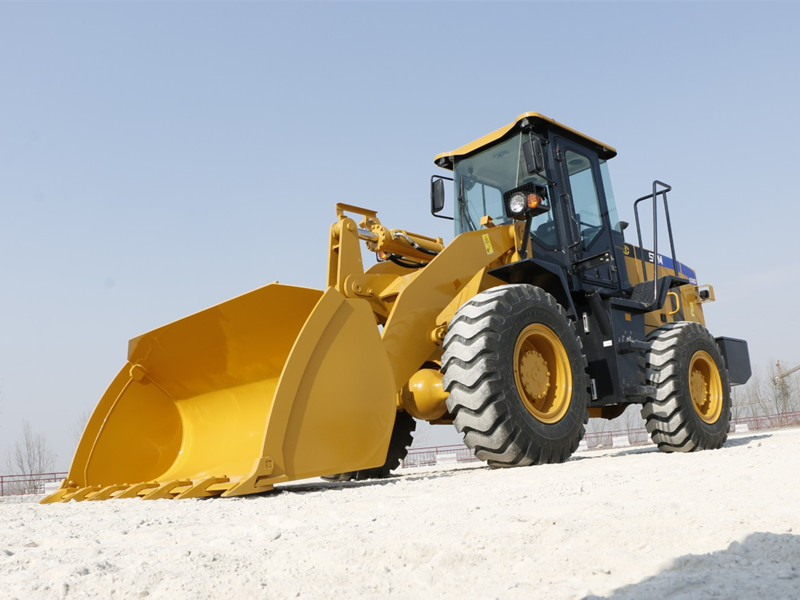

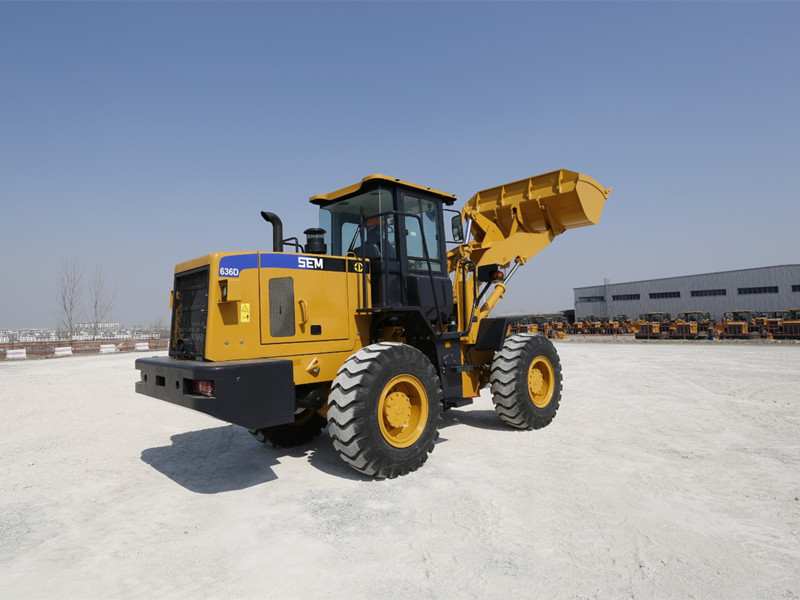

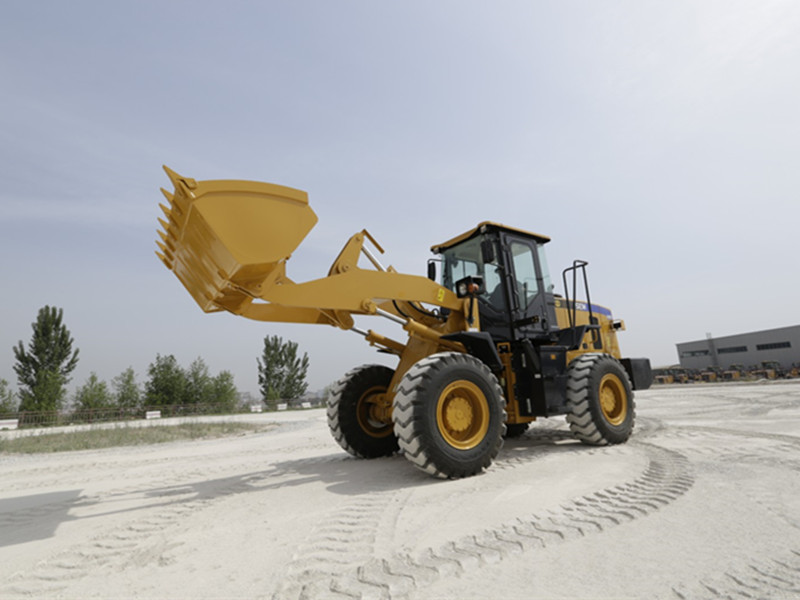

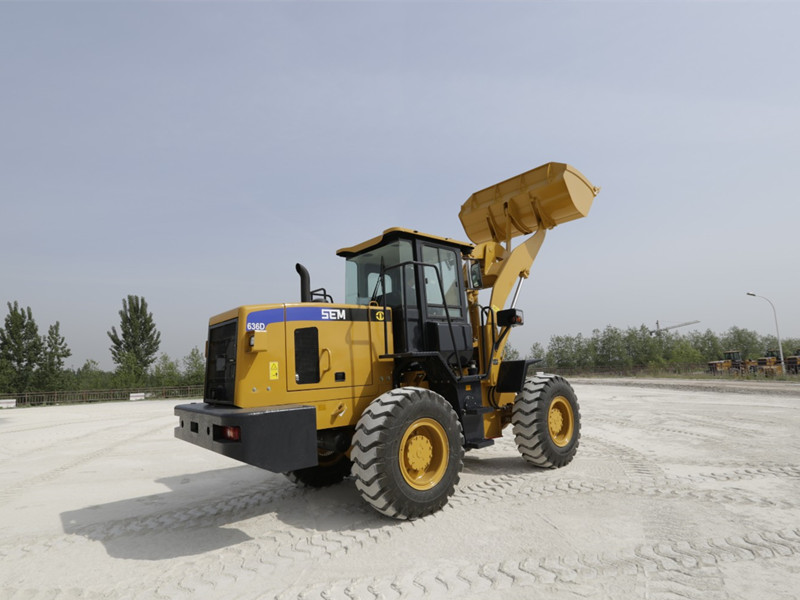

A CAT BRAND 3TON SEM 636 WHEEL LOADER
Features of SEM 636 wheel loader,
Weichai Engine
The air cleaner provides machine reliability even in the most severe applications
Efficient Hydraulic System
Single pump flow shared system.
More efficiency and larger breakout force
Perfect match between machine speed and hydraulic system to achieve high efficiency
Joystick hydraulic control for easy and precise control

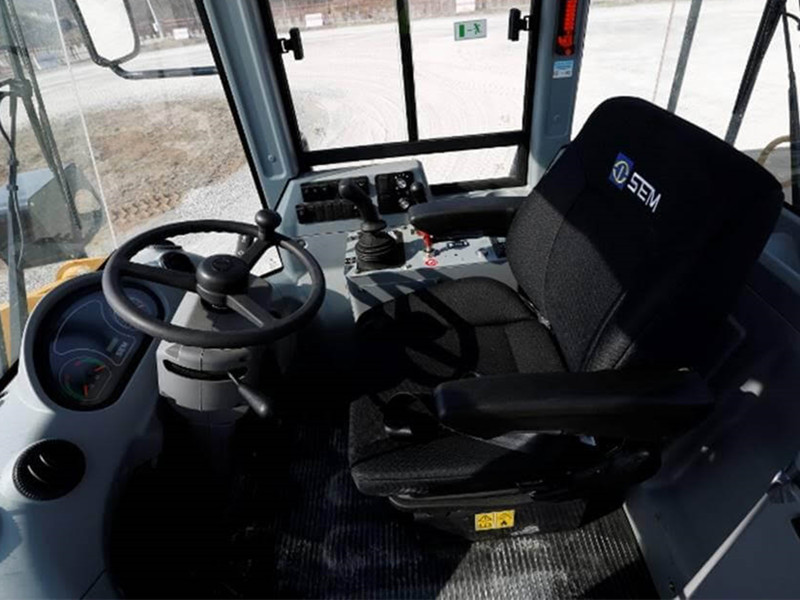

Operator Station
Premium operator station with big space and superior visibility
Patented MAC mount provides less noise and more comfort
Adjustable suspension seat
Sliding side window and AC with fresh air circulation provide operator comfort
Single lever shifting is flexible and convenient
Adjustable air flow outlet delivers better defrost performance
Reliable Drivetrain
Countershaft transmission with upgraded core components provides high reliability
Large rim-pull in 1st gear and higher speed in 2nd gear provide high efficiency for load and carry applications
Clutch cutoff selection switch ensures stable and safe operation
Simply Torque convert and efficiency is high
Shift smooth and comfortable
Advanced Cooling System
High efficiency cooling package
Shock pad mounts ensure reliability under severe applications
Safety
Safety design complies with all regulatory requirements
Caterpillar Production System (CPS) leveraged in manufacturing process
3-point touching design provides convenient operator entering to cabin
Backup alarm ensures machine safety
Specification of SEM 636 wheel loader,
| Model | ||
|---|---|---|
| Model | SEM636D Weichai | SEM636D Cummins |
| Main Specifications | ||
| Rated Payload | 3,000kg | 3,000kg |
| Operating Weight with Standard Bucket | 10,133kg | 10,047kg |
| Bucket Capacity | 1.5-2.5m³ | 1.5-2.5m³ |
| Operating Specifications | ||
| Breakout Force | 113kN | 113kN |
| Transmission | ||
| Transmission Gears | F4/R2 | / |
| Torque Converter Type | Single stage, 3 Elements | Single stage, 3 Elements |
| Maker & Type | SEM TR100 | SEM TR100 |
| Axle (Axle, Tire & Brakes) | ||
| Rear- oscillation +/- | ±12° | ±12° |
| Engine | ||
| Engine Model | WP6G125E22 | Cummins 6BT5.9 |
| Rated Power | 92kW | 92kW |
| Rated Speed | 2,200r/min | 2,200r/min |
| Displacement | 6.7L | 6.7L |
| Emission | T2/Stage2 | T2/Stage2 |
| Implement Hydraulic System | ||
| Implement System Type | Gear Pump | Gear Pump |
| Hydraulic Cycle Time | 8.3s | 8.3s |
| System Pressure Setting | 18MPa | 18MPa |
| Raise | 4.6s | 4.6s |
| Brake System | ||
| Service Brake | Dry & Caliper, Air to Oil Control | Caliper Dry Dics, Air over Oil Actuation |
| Parking Brake | Drum Type Shoe Brake | Drum Type Shoe Brake |
| Service Refill Capacity | ||
| Fuel Tank | 160L | 160L |
| Engine Lubricating Oil | 17L | 17L |
| Hydraulic System | 95L | 95L |
| Transmission Oil | 45L | 45L |
| Tires | ||
| Size | 17.5-25 | 17.5-25 |
| Type | PR | PR |
| Layer | 12 | 12 |
Shipping by bulk or RORO or in container with cab and tires disassembled.
