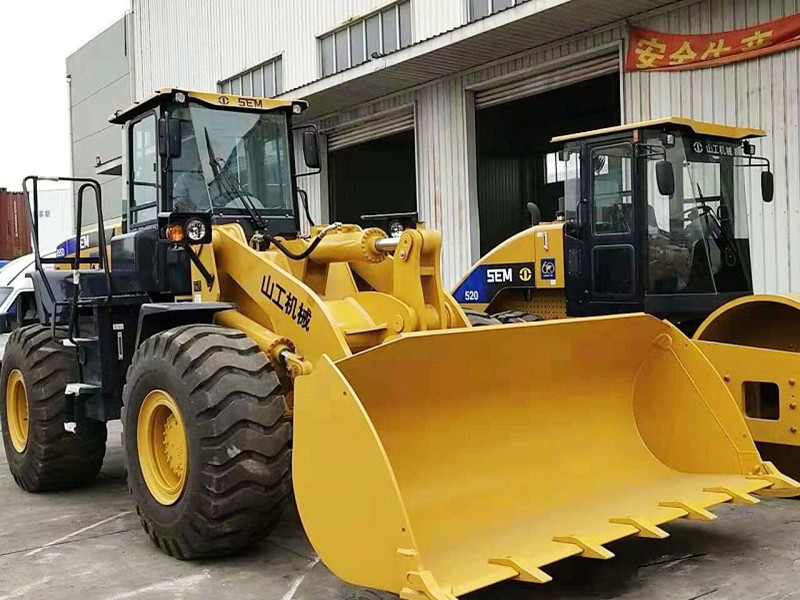

3 cubic mining gravel sand earth wheel loader SEM 655D 5tons payloader
3 cubic SEM 5tons loader for mining, gravel, sand earth moving
Features of the SEM 5tons payloader,
5ton SEM loader 655D featres,
SEM655D 5tons payloader multiple applications,
- Large volume earth moving
- Hopper feeding
- Coal loading
- Sand loading
- Construction
- Mining
SEM 5tons payloader 655D adopts Weichai powerful engine
- High efficiency
- Low fuel consumption
Advanced cooling system
Solid structure
Machine Applications
- The sturdy design of the 655D makes it the perfect machine for large volume earthmoving applications
- In Hopper feeding and Coal loading applications the 655D can load more, move faster and burn less fuel
- Multiple work tools are available for increased versatility
Specification of SEM 5tons payloader 655D wheel loader
| Items | SEM655D | |
| Rated Load | kg | 5,000 |
| Operating Weight with Standard Bucket | kg | 16,550 |
| Bucket Capacity | m³ | 2.7-4.5 |
| Wheel Base | mm | 3,200 |
| Overall Dimension (outside of tire) | mm | 8,060×2,963×3,417 |
| Operating Specifications | ||
| Breakout Force (GRD) | kN | 161 |
| Dump Clearance | mm | 3,113 |
| Articulated Angle | ° | 38±1 |
| Transmission | ||
| Transmission Type | Countershaft, power shift | |
| Transmission Gears | F4/R4 | |
| Torque Converter Type | Single stage 3 elements | |
| Maker & Type | SEM TR200 | |
| Forward I/ Reverse I | km/h | 7.9/7.9 |
| Forward II/ Reverse II | km/h | 15/15 |
| Forward III/ Reverse III | km/h | 24/24 |
| Forward IV/ Reverse IV | km/h | 41/41 |
| Axle | ||
| Main Drive Type | Spiral bevel gear, single stage | |
| Final Drive Reduction Type | Planetary type, singe stage | |
| Rear – Oscillating +/- | ° | ± 11 |
| Engine | ||
| Model | WD10 | |
| Rated Power | kW | 162 |
| Rated Speed | r/min | 2,000 |
| Displacement | L | 9.726 |
| Implement Hydraulic | ||
| Implement System Type | Twin pump flow merging hydraulic system | |
| Twin pump Boom Raise Time | s | 5.13 |
| Hydraulic Cycle Time (rated payload) | s | 9.5 |
| System Pressure Setting | Mpa | 17 |
| Brake System | ||
| Service Brake | Dry & caliper, air to oil control | |
| Parking Brake | Drum type shoe brake, spring applied & oil released |
|
| Steering System | ||
| System Type | Flow amplifying | |
| Steering Pump Type | Gear pump | |
| System Pressure Setting | Mpa | 16 |
| Steering Angle (L/R) | ° | 38±1 |
| Tires | ||
| Size | 23.5-25 | |
| Type | Bias | |
| Layer | 16 | |
| Textured Type | L3 |

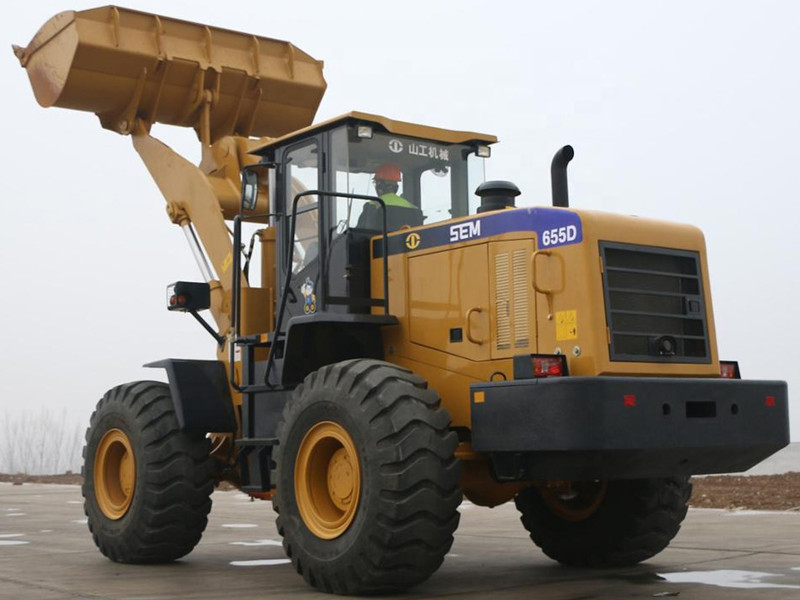

SEM 655D 5tons payloader in work,
Shipping by bulk or RORO or in container with cab and tires
disassembled.
