High Efficiency & Low Consumption
1. Working Efficiency Up by 8%
2. Fuel Consumption Down by 10%
3. Digging Force Up by 9.5%
High Reliability
1. Powerful Customized Machine
The Mitsubishi engine with rate power of 128/2000 kW/rpm, 6-cylinder, 4-stroke direct-injection turbocharger, and 5.86L displacement is customized for SANY excavators, meeting your expectation on engine stability.
2. Strong Structural Components
Safety and Comfort
1. Falling Object Protection Structure
2. Large Rear View Mirror & Alternate Exit

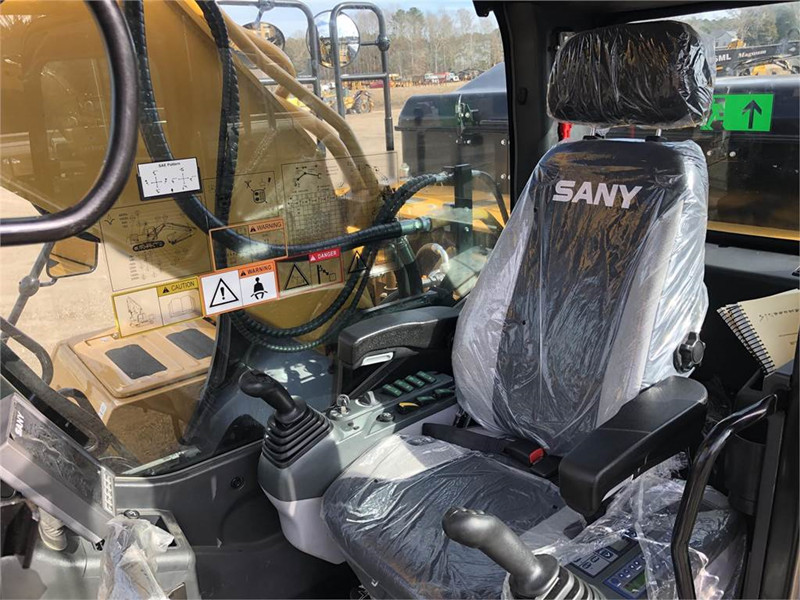

3. Large Low Noise Cab
| Specifications | Main performance | ||
| Total weight | 21900kg | Emission standard | Tier 3 |
| Engine | Isuzu | Digging force of bucket | 138kN/148kN |
| Type | 4-cylinder | Digging force of arm | 103kN/107kN |
| Rated power | 128/2000 kW/rpm | Arm length | 2.92m |
| Maximum torque | 580N·m/1600rpm | Boom length | 5.7m |
| Bucket capacity | 0.9m³ | Traveling speed(high/low) | 5.4/3.3(km/h) |
| Displacement | 4.9L | Ground pressure | 47.4/45.9kPa |
| Capacity of oil and coolant | Traveling section | ||
| Fuel tank | 340L | Number of track shoes | 47 |
| Hydraulic oil | 239L | Carrier wheel on each side | 2 |
| Coolant | 29L | Thrust wheel on each side | 8 |
| Final drive | 2*5.0L | Standard track | 600mm |
| Engine oil | 22L |
