Single drum vibratory 20ton road roller SEM520

  • SEM520 road roller
  • road roller SEM520

Road roller SEM520

Category:

INQUIRY

20ton vibratory road roller SEM520

Advantages of the road roller SEM520,

China brand 20ton vibratory single drum road roller vibrator SEM520

This product is small type hydraulic vibratory roller. It is mainly used for compacting various construction materials such as non-cohesive soil,

sandy soil, graves, macadam aggregate mixtures. Especially suitable for compact community road, village highway, underground garage, playground and all kinds of groove earthwork backfill.

20ton road roller SEM520 specification,

Main Specifications
Operating weight (kg) 20000
Compaction (% of XS122)
Vibration frequency (high/low)  (HZ) 30/28
Excitation force (high/low)  (KN) 360/208
Static pressure (N/cm) 461
Engine
Rated power(kw) 129
Speed (r/min) 2000
Fuel tank volume (L) 262
Hydraulic oil tank volume (L) 80
Drum
Drum width  (mm) 2130
Drum diameter (mm) 1600
Drum thickness (mm) 50
Tires
Tires type 20.5-25
Speed
F/R I (km/h) 2.98
F/R II(km/h) 5.88
F/R III (km/h) 9.6
Swing angle  (°) ±12
Steering angle (°) ±33
Outer turning radius (mm) 6350
Max.gradeability 34%

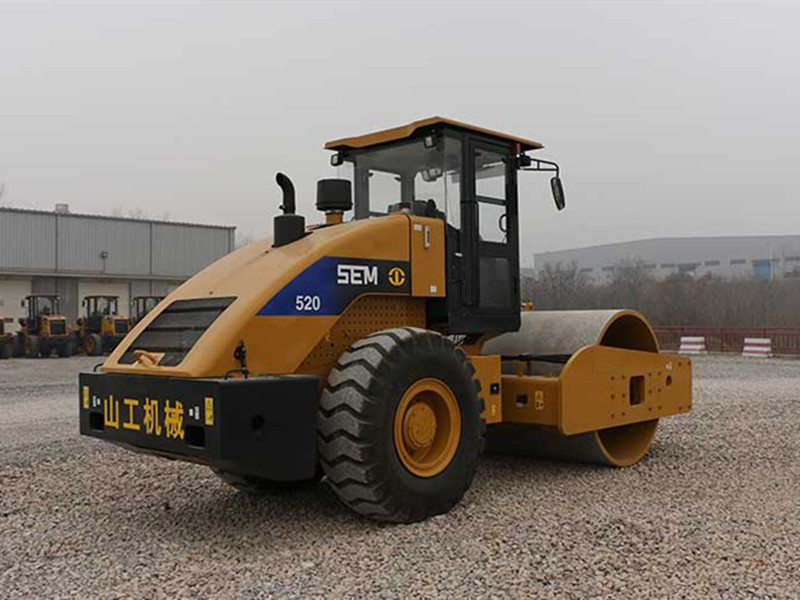

road roller SEM520

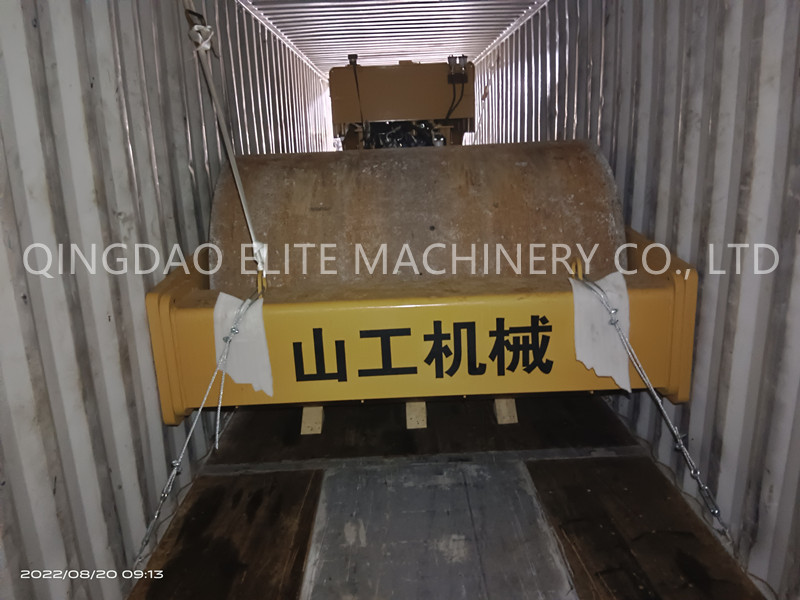

Road roller SEM520 shipping in container,

SEM520 shipping



























Welcome to contact any time. We will provide you quotation in the soonest.

Welcome to visit the factory and inspect machinery.

Tel/whatsapp: 008615066278170

Skype: ericy-xu

Email: [email protected]

Qingdao Elite Machinery Co., Ltd



20 ton single drum road compactor
