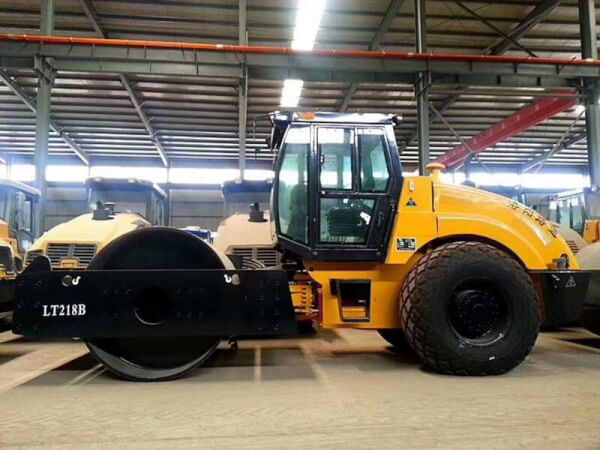

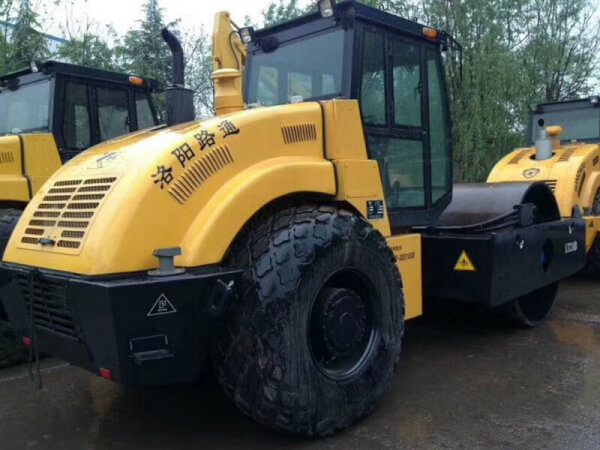

LT218B Heavy duty vibratory rollers effect powerful centrifugal force and great static linear load, They are suitable for non-cohesive materials, such as sandy soil, gravel, crushed stones, rock fillings and slightly cohesive soils, designed for large foundation constructions such as high-class highways, mines, dams, airports, harbors, railways and industrial areas etc.
1. Mechanical travel drive, double amplitude, hydraulic vibration and steering with optimal function/price ratio and reliable performance.
2. ReliableSC8D180 diesel engine for convenient operation and maintenance.
3. Two sets of brake devices, a hand brake and foot pedal brake, assure the machine’s safety and dependability.
4. Spacious and comfortable cab mounted on top quality rubber damping elements.
5. World advanced technology is adopted for the hydraulic vibration technology, high in reliability, simple and convenient in maintenance, and low in cost.
6. Equipped with pad foot or removal pad foot as option
Model |
|
LT218B |
Operating mass |
Kg |
18000 |
Static linear load |
N/cm |
428 |
Vibration amplitude |
Hz |
30 |
Vibration fraquency |
mm |
1.9/0.95 |
Centrifugal force |
kN |
390/280 |
Travel speed |
Hz |
|
1st gear |
|
2.0 |
2nd gear |
|
4.0 |
3rd gear |
|
10.5 |
Grade ability |
% |
30 |
Turning angle |
|
35 |
Ground clearance |
mm |
432 |
Bectrical voltage |
v |
24 |
Turning radius |
mm |
7000 |
Vertical oascill ation |
|
8 |
Type size |
|
23.1-26 |
Overall length |
mm |
5930 |
Overall width |
mm |
2280 |
Overall hieght |
mm |
3050 |
Vibration round width |
mm |
2100 |
Drum diameter |
mm |
1570 |
Drum rim thickness |
mm |
32 |
Wheelbase |
mm |
3380 |
Diesel model |
|
YC6B150 |
Diesel power |
kW |
132 |
Diesel speed |
r/min |
2000 |
Fuel tank capacity |
L |
220 |
Hydraulic tank capacity |
L |
160 |
