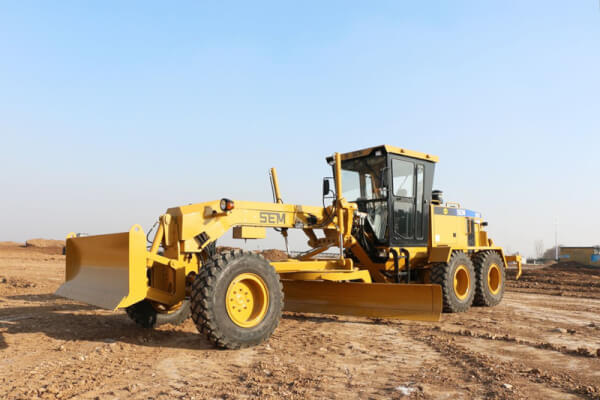

China all wheel drive motor grader SEM922 AWD
Featuers of all wheel drive motor grader SEM922 AWD,
A Caterpiller Brand SEM SHANGONG Large Grader 220HP SEM922
High Productivity: Load sensing hydraulic system provides consistent and precise blade movement
High Reliability: A-frame designed drawbar provides strength in all blade positions
Comfort: World Class industry control layout with low lever efforts for reduced operator fatigue
SEM Tandem Axle
- Leveraging Caterpillar designing and experience on MG tandem axle
- Improved bearing Layout and optimized load distribution with 4 planetary gears final drive
- Less down time and reduced labor and service cost for maintenance and repairing
- Longer service interval for lubrication oil change
- Leading in class manufacturing and quality control level, mandatory performance testing before delivering to MG assembly line
Control System
- 7 position link bar with electric over hydraulic control allows ease of operation from within the cab

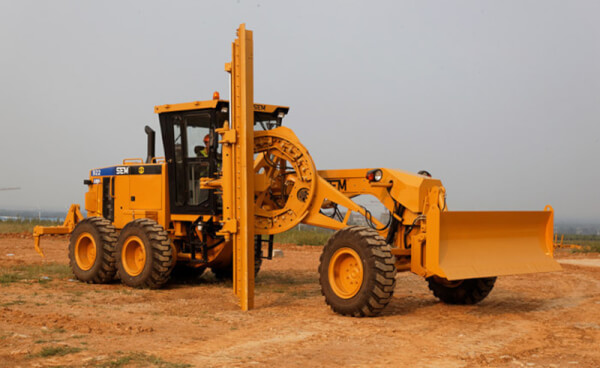

- Optimum blade reach capability, quick DCM re-positioning for greater reach for better working on high bank side slope
- The link bar is essential for extending reach capability when cutting a bank slope or back slope of a ditch
- Replaceable bushings reduce service time and cost
Blade Float
- Standard blade float function allows blade to lower without hydraulic pressure for increased versatility
- Blade float is engaged by pushing the left and right lift cylinder controls all the way forward past the detent
- Provides protection for machine and pavement during snow removal and snow plowing
Hydraulic System
- Proportional Priority Pressure Compensating (PPPC) Valves contain specifically cut spools for motor grader applications, continuously matching of hydraulic flow and pressure to power demands, allowing ease of multi-function control for optimizing working efficiency
- World-class variable displacement piston pump, efficiently reduces power consumption and hydraulic system heat, improving fuel efficiency
- Load-sensing hydraulic system provides consistent and precise blade movement, improving finishing performance
- Inboard lock check valves within PPPC, prevents inadvertent cylinder movement and potential leaks
Drawbar
- A-frame tubular design drawbar provides maximum strength and durability
- Replaceable drawbar draft ball (bolted – not welded) for less service time and cost
- Easy removal of wear shims to adjust drawbar
Front Frame
- Flanged box section design removes welds from high stress areas, improving reliability and durability
- Continuous top and bottom plate construction provides consistency and strength, improving front frame durability
- Hydraulic hose routing minimizes exposure to damage and provides quick access for service
- Maintenance-free bushings improve durability and reduce overall service cost
Control Layout
- Short throw levers are efficiently spaced, allowing ease of multi-function control
- Short lever travel (40mm) with low lever effort reduces operator fatigue

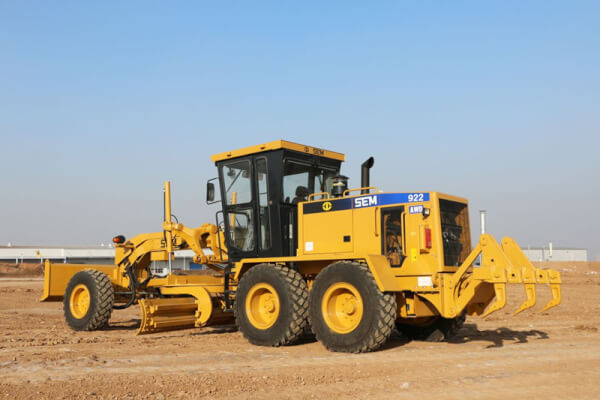

All Wheel Drive (922 AWD)
- All wheel drive (AWD) function designed for poor underfoot applications (snow, sand, gravel, mud, etc.)
- Infinitely variable speed pumps and two-speed motors maximize torque in each gear delivering the most power to the ground
- Exclusive steering compensation system enables a “powered turn” with improved control and a dramatic reduction of turning radius in poor underfoot conditions
Cat ® Product LinkTM
- Cat ® Product Link™ will support your business, and accurately convey information of the equipment to relevant personnel in a timely and effective manner for your better equipment management.
Large Cab
- High performance dashboard with 3 levels alarming monition system
- Cab mounted on the front frame provides exceptional view to blade and front axle even during articulation
- Large cab with 1.9m height and 30% larger space than most competitors, provides exceptional comfort
![Motor grader SEM922 AWD](https://www.chinaelitemachinery.com/wp-content/uploads/2019/09/SEM922-motor-grader.jpg)
Specification of motor grader SEM922 AWD,
Items |
SEM922AWD |
Operation Weight (Base Machine) |
18,120kg |
Overall Dimensions (L*W*H) |
10,324*2,728*3,360mm |
Blade Length (L*W*H) |
4,279*25*607mm |
Max. Lifting Height |
475mm |
Max. Depth of Cut |
715mm |
Max. Drawbar |
Front≥26kN Rear Axle≥86kN |
Wheelbase |
6,140mm |
Frame Articulation Angle |
20° |
Min. Turning Radius |
7.8m |
Engine Brand |
SDEC SC9DK220G3 |
Rated power |
162kW |
Transmission Type |
Hangchi 6WG180 |
Travel Speed (Forward/Rear) |
40/25km/h |
Rear Axle/Tandem |
SEM ST22 |
Service brake |
Outboard disc with brake caliper,Air to oil Control |
Oscillation (Front up/Rear up) |
15/25° |
Max. Oscillation Angle |
±16° |
Steering Angle (Left/Right) |
47.5° |
Max. Lean Angle of Front Wheels |
18° |
Hydraulic System |
Load sensing,PPPC |
Motor grader SEM922 AWD shipping,
![SEM motor grader shipping](https://www.chinaelitemachinery.com/wp-content/uploads/2019/09/SEM919-motor-grader-shipping.jpg)
Welcome to inquire
