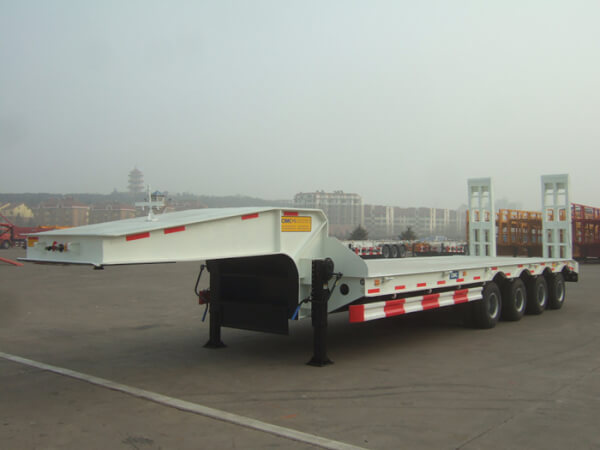

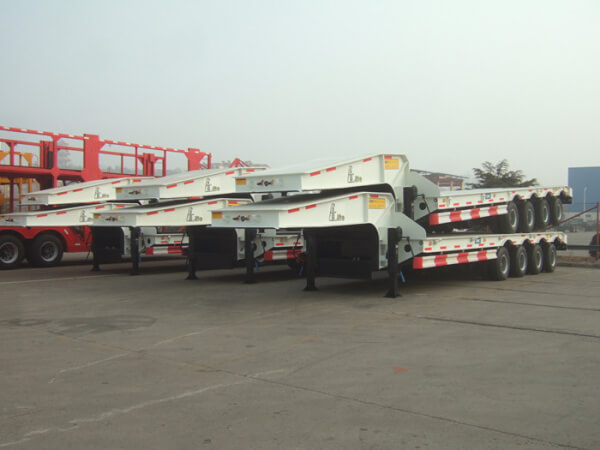

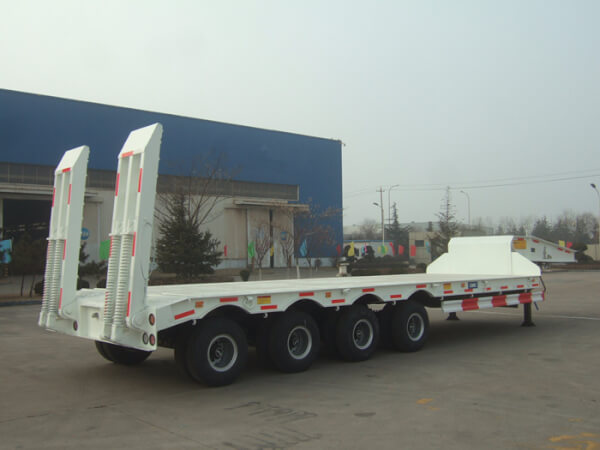

Low loader trailer 4 axles 80ton low bed semi trailer
Low loader trailer 80ton 4 axles
Features of low loader trailer:
1. High quality steel makes the low loader trailer itself lighter but strong enough for heavy cargos, so that transport company can load more tons.
2. The most skilled workers make welding of this low bed trailer more frequent and strong.
3. Two pieces spare tire carriers, water tank, fuel tank, hydraulic ladders, etc, are optional accessories which build modern transportation.
4. We have standard 3 axle, 4 axle low bed trailer with 60tons and 80 tons loading capacity; meanwhile, we can have your trailer customised with other options, like 40 tons, over 100 tons.
Specification,
| Dimensions(LxWxH) | 13000 to 16000mm x 3000 x 1750mm | |
| Tare weight | 10 tons to 12 tons | |
| Axle spacing | 1310mm | |
| Rims | 8.5-20, 9.0-20 | |
| Suspension System | Leaf spring suspension / air suspension | |
| Brake System | Dual line pneumatic brake system with WABCO emergency relay valve | |
| Main Beam | Height 500mm Q345 | |
| Chassis | upper 20mm, lower 20mm. Mid web 12mm | |
| Rear Loading Ramps | 2 nos, 720 mm width, spring loaded & manually operated with safety chain | |
| Kingpin | 2’ or 3.5’ interchangeable | |
| Landing Gear | 28 Tons , Two speed manual operation | |
| Electrical System | 1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard | |
| Lights and Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |
| Painting | Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available | |
| Tool Box | One tool box with a set of standard trailer tools | |
| Spare Tyre Carrier | One piece or two pieces | |
