4m3 6.5ton Lovol wheel loader FL968H for sale
Features of Lovol wheel loader FL968H,
Adopt world class engine which provides excellent service and part availability in market. Optimized layout of pipelines and dual-seal technology can avoid oil leakage and make hydraulic system more reliable.
6.5T wheel loader standard equipped with 4.0m³ bucket, high-efficiency powertrain system is perfectly matched with hydraulic multi-stage power system that makes machine work fast and efficient.
The proven linkage structure is very efficient which has big breakout force, quick movement and high lifting capacity features.
The H series features many components which leverage product designs that have delivered reliable and durable machines.
Adopt world class engine which provides excellent service and part availability in market.
Optimized layout of pipelines and dual-seal technology can avoid oil leakage and make hydraulic system more reliable.
Reinforced center-articulated frame which has passed million times fatigue experimental test, 1,000 hours intensive experimental test and 5,000 hours jobsite test, it has been proved to be robust and durable.
Bucket use JF440 steel which are joint-invented with renowned steel factory, it is more robust and wearable.
The key components of axles are reinforced which could extend service time of whole axles and makes it more suitable for heavy-duty applications.
LOVOL ETX (European Technology Excellent) cabin adopts skeleton structure which has great vision, solid frame and lower noise feature，these could provide a comfortable working environment for operator.
High-back mechanical suspension seat with headrest could make operator feel more comfortable.
The cabin has micro pressurizing air system that makes the environment cleaner and comfortable.

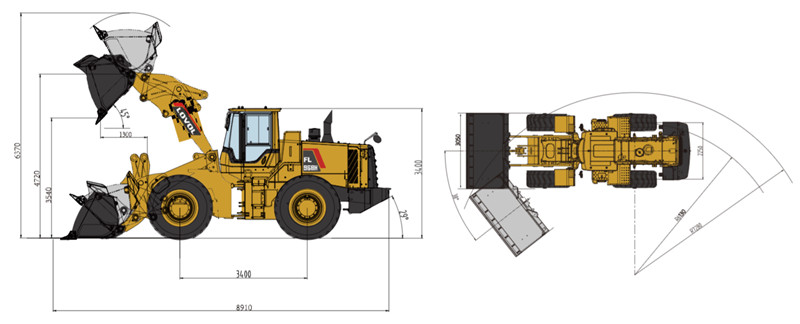

Specification of Lovol wheel loader FL968H
| Main paramater | |
| Operating mass(kg) | 21710 |
|---|---|
| Bucket capacity | 4 |
| Rated load(kg) | 6500 |
| Traction(kN) | 185 |
| Digging force(kN) | 195 |
| Gradeability | 30 |
| Unloading height(mm) | 3214 |
| Unloading distance(mm) | 1251 |
| Min. ground diatance(mm) | 503 |
| Wheel tread(mm) | 2250 |
| Wheelbase(mm) | 3400 |
| Bucket outer turning radius(mm) | 7280 |
| Outline distance(mm) | 8910*3050*3460 |
| Engine | |
| Model | Cummins QSL9.3 |
| Max. torque(N·m) | 1100 |
| Rated power(kW) | 180 |
| Rated rotational speed(rpm) | 2200 |
| Running system | |
| Gearbox shift | Front:4 gears Rear:3 gears |
| Max. speed | 38 |
| Type | 26.5-25 |
| P-l-y rating | 20 |
| Steering angle | 37,39 |
| Other | |
| Operating model | P-i-l-o-t control |
| Sum of three items(s) | 11 |
| Fuel tank(L) | 350 |
| Hydraulic oil tank(L) | 210 |
