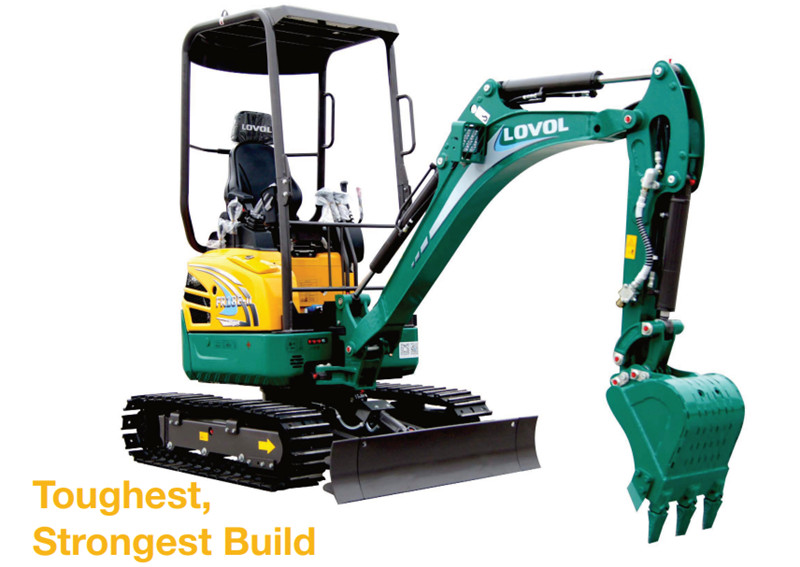

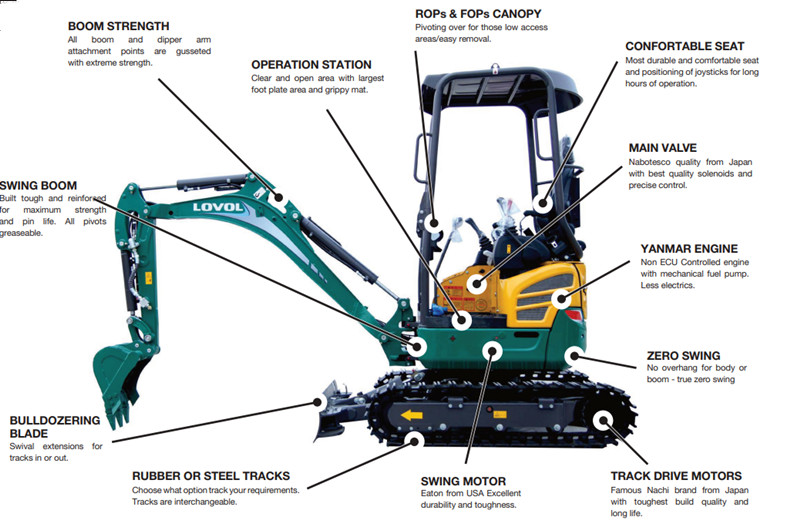

Yanmar 3TNV70 engine, rops and FOPS canopy, zero tail turning, pivot arm, Japanese NACHl main pumps and travel motor. Nabotesco main valve. EATON swing motor, extension chassis from 990-1280mm, piping for rock breaker, steel track.

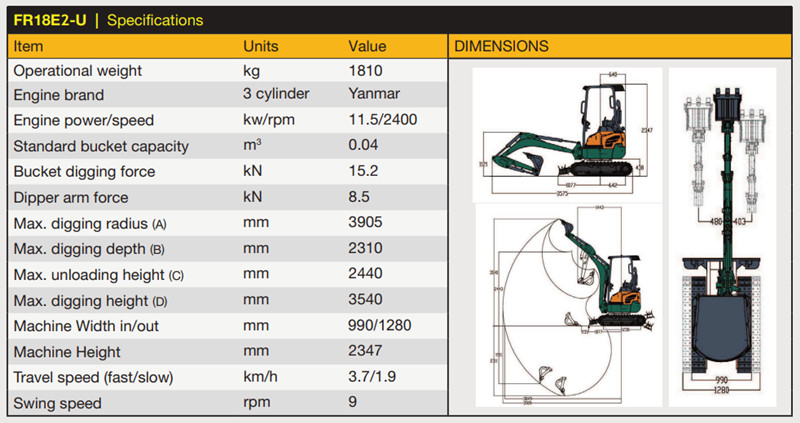

Main Parameters | 3575*1050*2347 |
---|---|
Operation Weight (Standard Configuration) (kg) | 1810 |
Standard Bucket Capacity | 0.027 |
Transport Dimensionsmm | 3575*1050*2347 |
Bucket Digging Force (KN) | 15.2 |
Bucket Rob Digging Force (KN) | |
Maximum Traction (KN) | 13.5 |
Device | |
Maximum Working Speed (Km/h) | 3.7 |
Climbing Performance(°) | 30 |
Total Length of the Crawler(mm) | 1593 |
Minimum Radius of rotation (mm) | 1443 |
Width of the Crawler(mm) | 230 |
Ground Pressure (Kpa) | |
Turning Mechanism | |
Turning Speed (rpm) | 9 |
Engine | |
Model | YANMA 3TNV70 PFN |
Type | Three Cylinders,China’s Stage lll |
Rated Power/Rotate Speed (KW/rpm) | 11.5/2400 |
Rated Torque/Rotate Speed (N.m/rpm) | 48/1600 |
Cylinder Diameter*Stroke (mm) | |
Output Value (L) | |
Fuel Consumption (g/KW.h) | |
Fuel Tank Capacity (L) | 19 |
Hydraulic System | |
Main Pump Pressure (Mpa) | 21.6 |
Main Pump Flow(L/min) | 17.2×2 |
Operating Scope | |
Maximum Digging Height (mm) | 3540 |
Maximum Dumping Height (mm) | 2440 |
Maximum Digging Depth (mm) | 2310 |
Maximum Digging Radius (mm) | 3905 |
