China top machinery supplier front end loader for sale FL956 5ton LOVOL loader

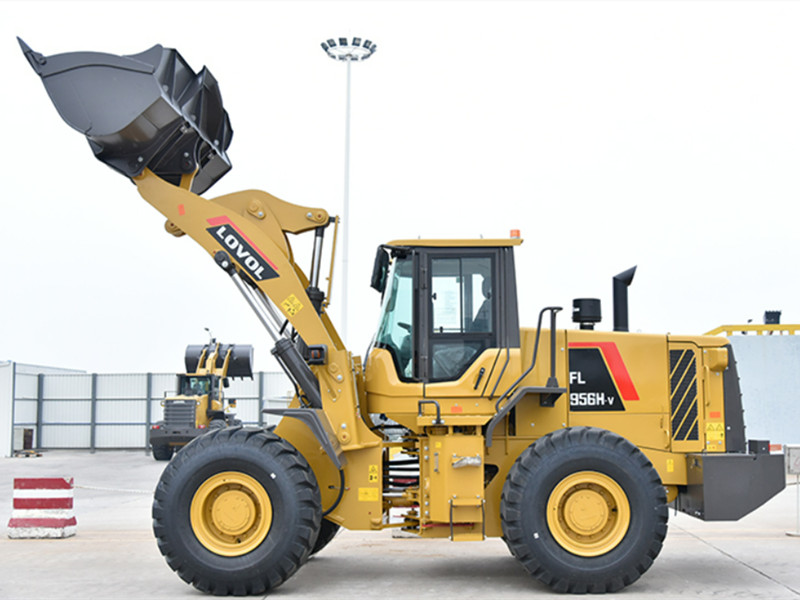

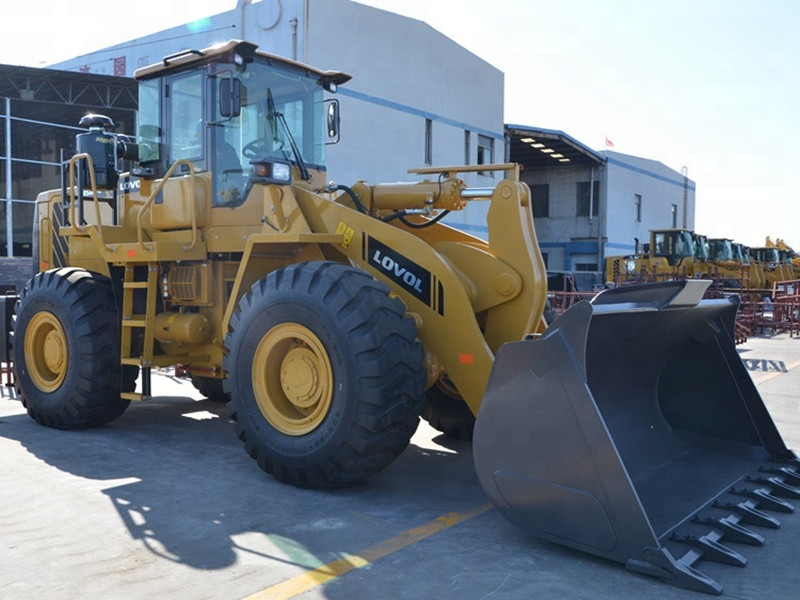

LOVOL loader FL956 5ton front end loader
Features of the LOVOL loader FL956
1. The bearings and oil seals adopt imported components.
2. The hydraulic system filter element has a filtration ratio of 200,thus the system is cleaner and more reliable.
3. The multi-stage hydraulic power steering is light and the three-pump confluence operation is more efficient.

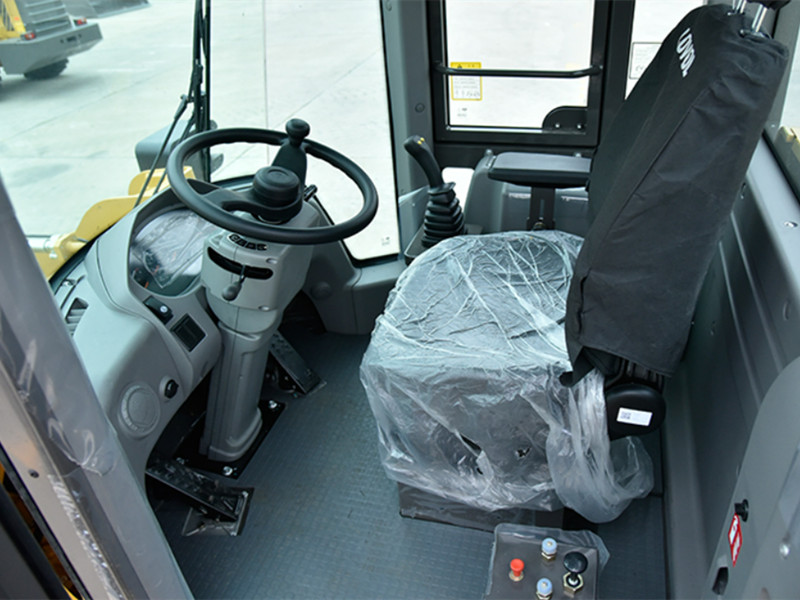

4. With comfortable operation, spacious and ergonomic design, and excellent, driving and riding are more comfortable.
Specification of LOVOL loader FL956
| Parameter | FL956H |
| Operating Weight(kg) | 16970 |
| Bucket Capacity(m3) | 3.3 |
| Rated Load(kg) | 5500 |
| Max. Traction Force(kN) | 160 |
| Max. Breakout Force(kN) | 165 |
| Max. Gradeability(°) | 30 |
| Dumping Angel(°) | 44 |
| Lifting Height(mm) | 5645 |
| Max. Dumping Height(mm) | 3100 |
| Dumping Reach(mm) | 1160 |
| Mini. Ground Clearance(mm) | 440 |
| Wheel Tread(mm) | 2150 |
| Wheel Base(mm) | 3300 |
| Mini. Turning Radius of Outside Tire(mm) | 7020 |
| Dimension(L×W×H mm) | 8360×2980×3380 |
| Engine Model | Weichai WD10G220E24 |
| Cylinder No.-Cylinder Dia.×Stroke(mm) | 6-126*130 |
| Max. Torque (N·m) | 900 |
| Rated Power(kW) | 162 |
| Rated Speed (rpm) | 2000 |
| Transmission Type | Mechanical shifting planetary |
| No. of Gears | Front2back1 |
| Max. Speed km/h | 42.0 |
| Front 1 (km/h) | 13.0 |
| Front 2 (km/h) | 42.0 |
| Back1 (km/h) | 17.5 |
| Tire Size | 23.5-25 |
| Ply rating of Tire | 16 |
| Turning Angle | 38º |
| Boom Lifting Time(s) | 5.7 |
| Total Cycle Time(s) | 10.6 |
| Brake Air Pressure(Mpa) | 0.784 |
| Oil Tank Capacity(L) | 320 |
| Hydraulic Oil Tank Capacity(L) | 210 |
| Voltage (V) | 24 |

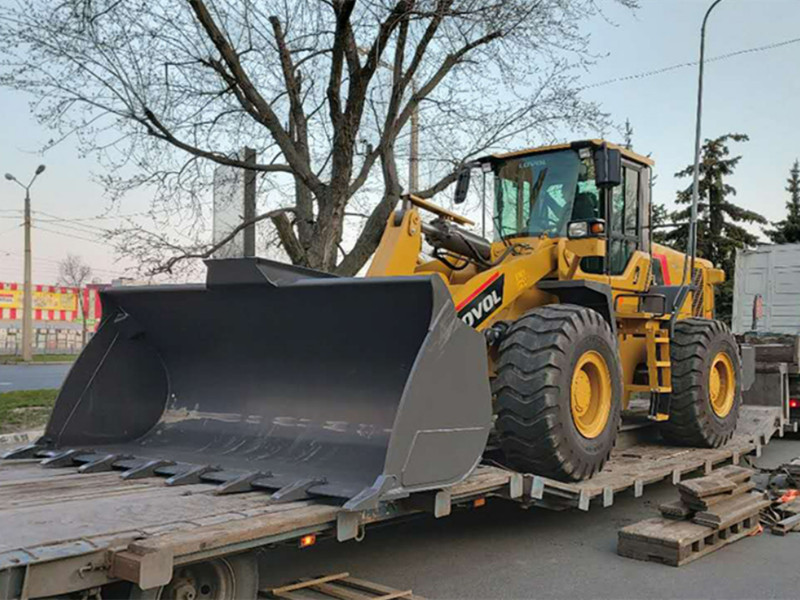

Shipping by bulk or RORO
