PRODUCTIVITY
5.5T wheel loader equipped with 3.3m3 standard bucket, high-efficiency power train system is perfectly matched with hydraulic multi-stage power system that makes machine work fast and efficient.
The proven linkage structure is very efficient which has big breakout force, quick movement and high lifting capacity features.
Low-effort joystick control system delivers high-efficiency operation with ease and fast.
RELIABILITY
The H series features many components which leverage product designs that have delivered reliable and durable machines.
Adopt world class engine which provides excellent service and part availability in market.
Optimized layout of pipelines and dual-seal technology can avoid oil leakage and make hydraulic system more reliable.
ROBUSTNESS
Reinforced center-articulated frame which has passed million times fatigue experimental test, 1,000 hours intensive experimental test and 5,000 hours jobsite test, it has been proved to be robust and durable.
Bucket use JF440 steel which are joint-invented with renowned steel factory, it is more robust and wearable.
The key components of axles are reinforced which could extend service time of whole axles and makes it more suitable for heavy-duty applications.
Parameter
|

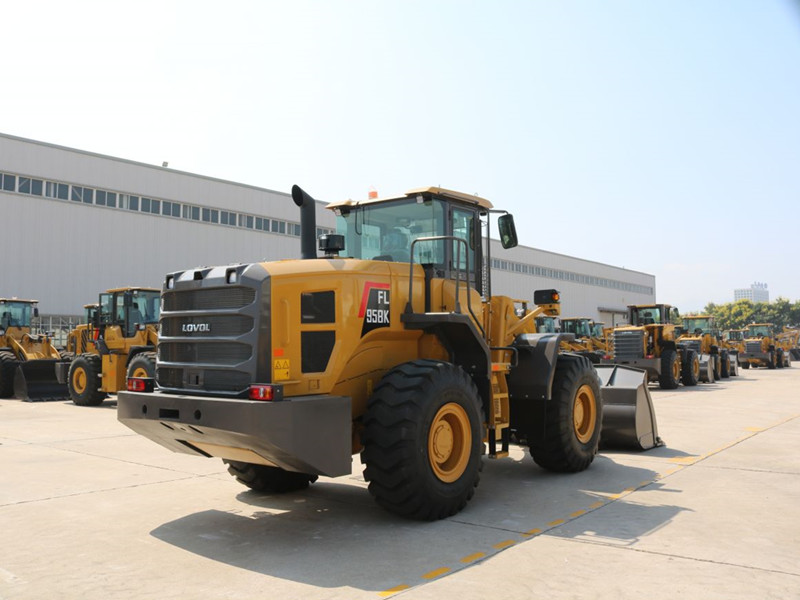

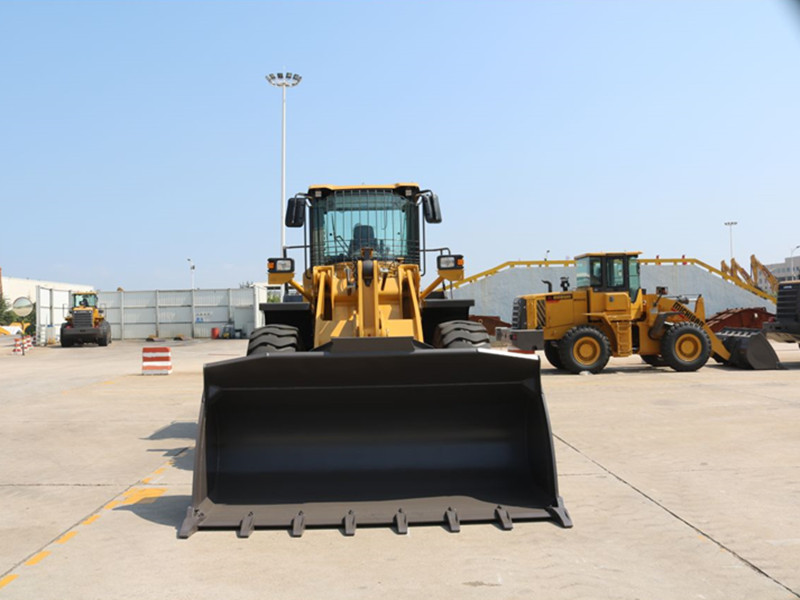

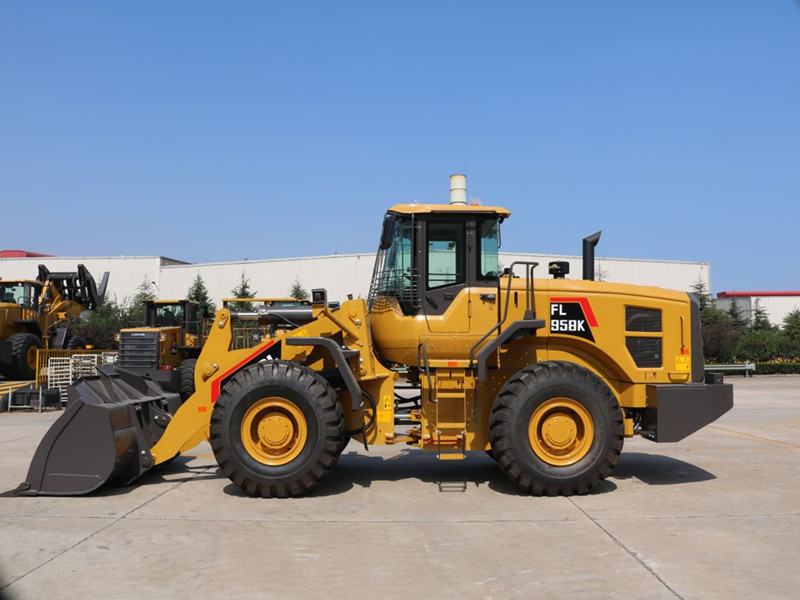

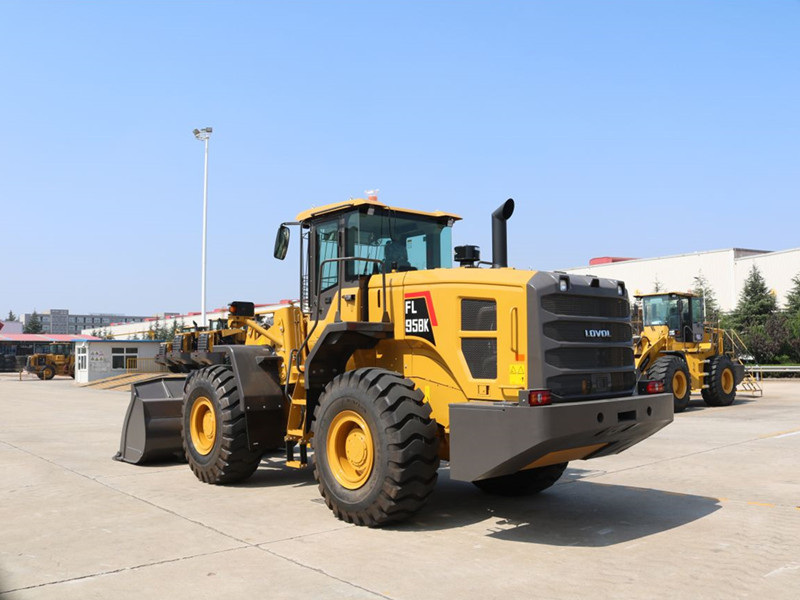

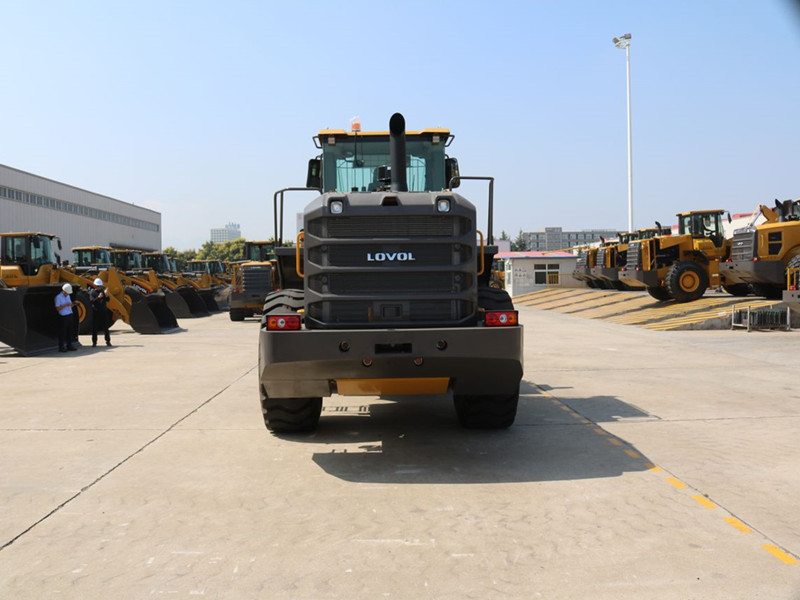

Foton lovol FL958k
|
Operating Weight(kg)
|
17440
|
Bucket Capacity(m3)
|
3.3
|
Rated Load(kg)
|
5500
|
Max. Traction Force(kN)
|
170
|
Max. Breakout Force(kN)
|
165
|
Max. Gradeability(°)
|
30
|
Dumping Angel(°)
|
44
|
Lifting Height(mm)
|
5645
|
Max. Dumping Height(mm)
|
3100
|
Dumping Reach(mm)
|
1160
|
Mini. Ground Clearance(mm)
|
440
|
Wheel Tread(mm)
|
2150
|
Wheel Base(mm)
|
3315
|
Mini. Turning Radius of Outside Tire(mm)
|
7090
|
Dimension(L×W×H mm)
|
8590×2980×3420
|
Engine Model
|
Weichai WP10G231e343
|
Cylinder No.-Cylinder Dia.×Stroke(mm)
|
6-126*130
|
Max. Torque (N·m)
|
900
|
Rated Power(kW)
|
162
|
Rated Speed (rpm)
|
2000
|
Transmission Type
|
Mechanical shifting planetary
|
No. of Gears
|
Front2back1
|
