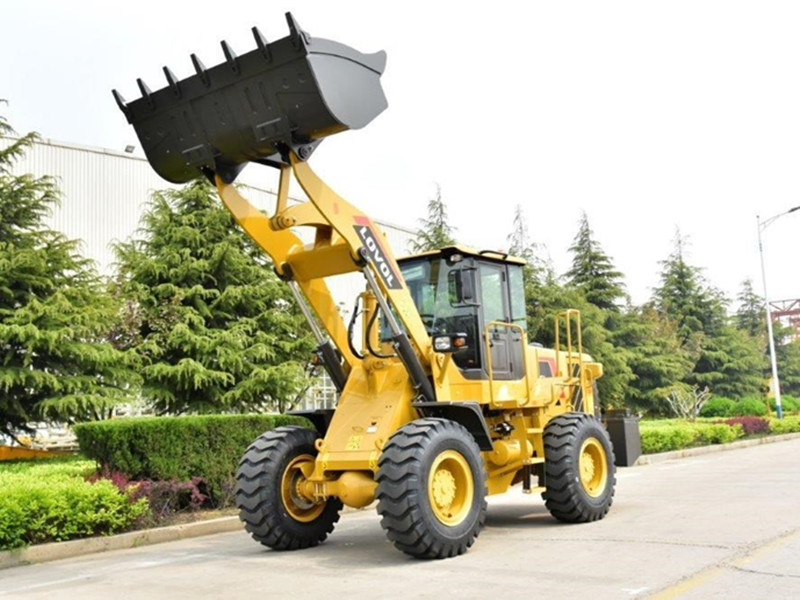

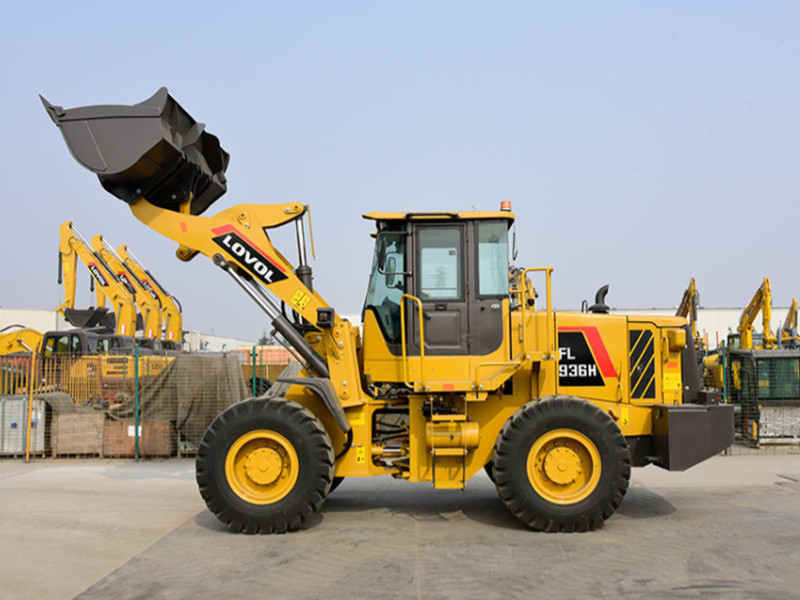

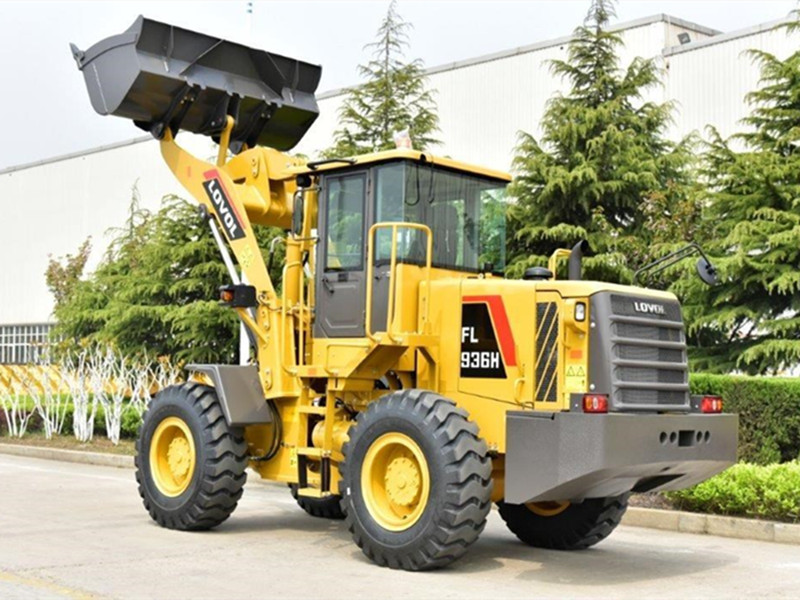

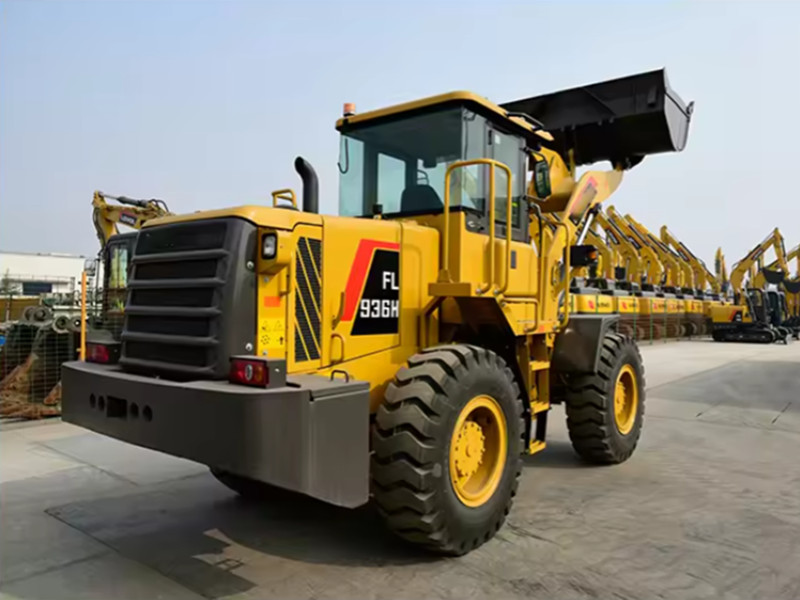

92kW 2 cubic 3ton front loader Lovol FL936H
Features of Lovol FL936H wheel loader,
Productivity,
·The proven linkage structure is very efficient which has big breakout force, quick movement and high lifting capacity features.
·Optimal designed bucket which can cut into materials easily with small resistance, and could retain more materials.
·The bucket has guide plate which can avoid the materials sprinkling to protect bucket cylinder during lifting.
·High-efficiency powertrain system is perfectly matched with hydraulic multi-stage power system that makes machine work fast and efficient.
Reliability,
·The H series features many components which leverage product designs that have delivered reliable and durable machines.
·Adopt world class engine which provides excellent service and part availability in market.
·Optimized layout of pipelines and dual-seal technology can avoid oil leakage and make hydraulic system more reliable.
Robustness,
·Reinforced center-articulated frame which has passed million times fatigue experimental test, 1,000 hours intensive experimental test and 5,000 hours jobsite test, it has been proved to be robust and durable.
·Bucket use JF440 steel which are joint-invented with renowned steel factory, it is more robust and wearable.
Comfort,
·The pedals and various control elements utilize humanized design which could reduce the long-time operation fatigue for operator.
·High-performance mechanical suspension seat with high-back could makes operator feel comfortable.
·Overall view cab delivers wide vision for operator to check the surroundings during operating machines.
Specification of Lovol FL936H wheel loader,
| Configuration parameter | |
| Model | FL936H |
| Model abbreviation | 936 |
| Rated load capacity (kg) | 3000 |
| Operating weight of complete machine (kg) | 10300 |
| Bucket capacity (m ³) | 1.5~3.5 |
| Maximum digging force (digging force) (kN) | 98 |
| Maximum traction force (kN) | 101 |
| Walking mode | Wheel Loader |
| Working condition use | Universal |
| Tonnage range | 3-4T |
| Power type | diesel oil |
| Engine (fuel) | |
| model | WP6G125E333 |
| Rated power/speed (kW/r/min) | 92/2300 |
| Engine brand | WEICHAI |
| Transmission case | |
| Driving speed 1st gear (forward/reverse) (km/h) | 39 |
| Machine parameters | |
| Overall length (mm) | 7360 |
| Overall width (mm) | 2520 |
| Overall height (mm) | 3200 |
| Wheelbase (mm) | 2880 |
| Track width (mm) | 1850 |
| Unloading height – unloading angle is 45 ° (mm) | 3310 |
| Unloading distance – unloading angle is 45 ° (mm) | 1010 |
| Steering angle (°) | 38 |
| Minimum turning radius (calculated by the center of the outer wheel) (mm) | 6110 |
| Three items and time (s) | 9.2 |
