1. Best quality with heavy load capacity.
2. Bogie suspension for off road.
3. Popular in West Africa and Southeast Asia.

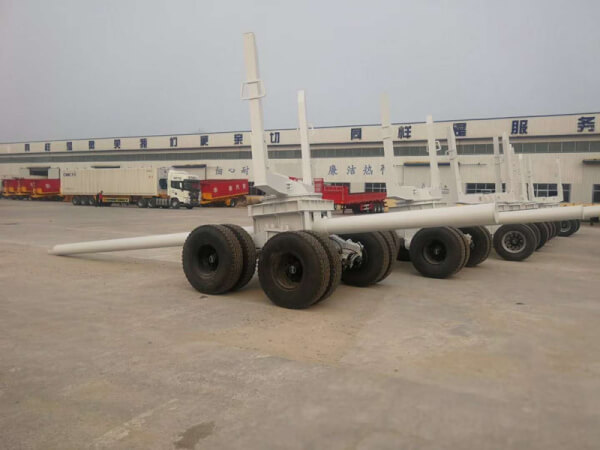

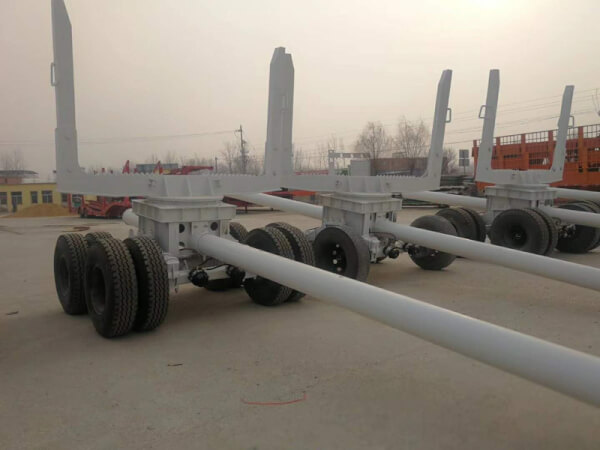

For log and timber transport.
parameter | dimension(mm) | 9500x3000x1600mm |
tare weight(kg) | 7,200 | |
payload (kg) | 50,000 | |
GVWR(kg) |
57,200 |
|
OEM |
landing gear | None |
Draw tube | seamless steel tube | |
Turn plate | Standard,2 pcs | |
Drawbar hook | 1 pcs | |
brake system | Brake chamber T30/30 type on each axle, WABCO brake valve | |
Electricity | None | |
Suspension | 32T Bogie suspension. | |
Axle |
16T, ISO10 Holes, two axles | |
Tire | Linglong Brand, type: 315/80R22.5-18PR , tubeless tyre, equip 8 per chassis | |
rim | 9.0*22.5, ISO10, equip 8 per chassis | |
spare tire carrier | One set | |
color |
Following customer’s request. | |
others |
l “LONG VEHICLE” sign on the rear end.
l LED lights,equip side turn light. l Nameplate: English model l Side Guard: Standard. l Suit for 6X4 truck. l Protect for the cab. |
