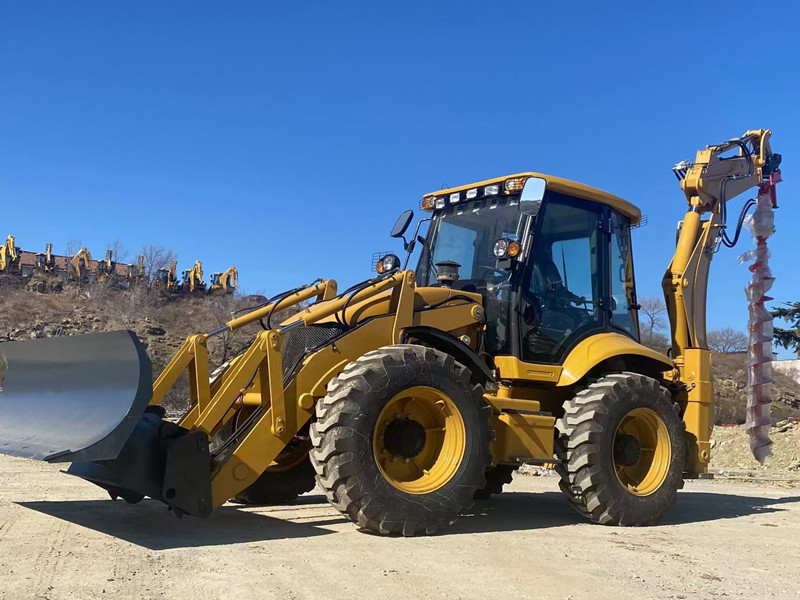

The Main Performance Parameter of China Backhoe Loader excavator ET388 | |||
Overall Weight | 8200KG | Final Reducer | Single Stage Final Reducer |
Transport Dimension | Rated Loader of Axle | 4/18.5t | |
L*W*H | 5920*2250*3763mm | Transmission System | |
Wheel base | 2200mm | Torque Converter | |
Min. Ground Clearance | 300mm | Model | YJ280 |
Bucket Capacity | 1.0m3 | Type | Single-stage Three Elements |
Breakout Force | 55KN | Max. Efficiency | 84.4% |
Loading Lifting Capacity | 2500KG | Inlet Pressure | 0.4Mpa—0.55 Mpa |
Bucket Dumping Height | 2742mm | Outlet Pressure | 1.2Mpa—1.5 Mpa |
Bucket Dumping Distance | 1062mm | Cooling Method | Oil-cooling Pressure Circulation |
Digging Depth | 52mm | Gearbox | |
Backhoe Capacity | 0.3 m3 | Type | Fixed Shaft Power Transmission |
Max. Digging Depth | 4082mm | Oil Pressure of Clutch | 1373Kpa—1569 Kpa |
Swing Angle of backhoe | 190o | Gears | F2/R2 |
Max. Pulling Force | 39KN | Max.Speed | 22Km/h |
Engine | Tyre | ||
Model | Yuchai | Model | 14-17.5/19.5L-24 |
Type | turbocharging four-stroke | Pressure of Front wheel | 0.22 Mpa |
Cylinder | 4 | Pressure of Back Wheel | 0.22 Mpa |
Rated Power | 75KW | Brake System | |
Rated Speed | 2400r/min | Service Brake | Air Over Oil Caliper Brake |
Min. Fuel Consumption | 218g/kw.h | External Type | |
Max.Torque | ≥301.7N.M/1800r/min | Self-regulation | |
Displacement | 4.5L | Self-balance | |
Steering System | Emergency Brake | Operation Power Implementing brake | |
Model of Steering Device | BZZ5-250 | Manual Operation Power Terminating Brake | |
Steering Angle | ±36o | Hydraulic System | |
Min. turning radius | 6581mm | Digging Power of Excavator Grab | 46.5KN |
Pressure of the system | 12Mpa | Digging Power of Dipper | 31KN |
Axle | Bucket Lifting Time | 5.4S | |
Manufacturer | Feicheng Axle Factory | Bucket Lowering Time | 3.1S |
Main Transmission Type | Double Reduction | Bucket Discharge Time | 2.0S |
The parameters are subject to change without notice |
