ENGINE
Emission Regulation Tier 2 / Stage II
Make Cummins
Model 6LT9.3
Gross Power 162 kW (217 hp / 220 ps) @ 2,200 rpm
Net Power 148 kW (199 hp / 201 ps) @ 2,200 rpm
Peak Torque 890 N · m
Displacement 9.3 L
Number of Cylinders 6
Aspiration Turbocharged
TRANSMISSION
Transmission Type Planetary type, power shift
Torque Converter Double stage, four elements
Maximum Travel Speed, fwd 37 km/h
Maximum Travel Speed, rev 14 km/h
Number of Speeds, fwd 2
Number of Speeds, rev 1
AXLES
Differential Front Type Conventional
Differential Rear Type Conventional
Axle Oscillation ±11°
STEERING
Steering Configuration Articulated
Steering Relief Pressure 12 Mpa
BRAKES
Service Brake Type Caliper disc brake
Service Brake Actuation Air over hydraulic
Parking Brake Type Manual pneumatic control
Parking Brake Actuation Air
HYDRAULIC SYSTEM
Main Pump Type Gear
Main Relief Pressure 17 MPa
Raise Time 6.5 s
Dump Time 1.5 s
Float Down Time 3.5 s
Fastest Total Cycle Time 11.5 s
LOADER ARM PERFORMANCE with Standard Bucket 3.0 m3
Tipping Load – Straight (ISO 14397-1:2007) 13,414 kg
Tipping Load – Full Turn (ISO 14397-1:2007) 11,000 kg
Bucket Breakout Force 167 kN
Maximum Dump Angle at Full Height 45°
Dump Clearance at Full Height Discharge 2,970 mm
Dump Reach at Full Height Discharge 1,200 mm
Maximum Hinge Pin Height 4,020 mm
Maximum Digging Depth, Bucket Level 60 mm
Bucket Rollback at Ground Level 42°
Bucket Rollback at Carry 46°
Bucket Rollback at Maximum Height 59°
BUCKET PERFORMANCE
Reference Bucket 3.0 m3

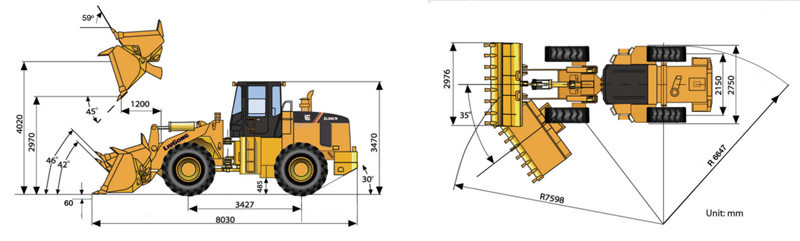

DIMENSIONS
Length with Bucket Down 8,030 mm
Width Over Tires 2,750 mm
Wheelbase 3,427 mm
Wheel Tread 2,150 mm
Ground Clearance 485 mm
Turn Angle, Either Side 35°
Rear Angle of Departure 30°
Turning Radius, Outside of Tire 6,647 mm
Turning Radius, Center of Tire 6,347 mm
Turning Radius, Bucket Carry 7,598 mm
Width Over Bucket 2,976 mm
TIRES
Tire Size 23.5 – 25
OPERATING WEIGHTS
Operating Weight 16,700 kg
SERVICE CAPACITY
Fuel Tank 300 L
Engine Oil 18 L
Cooling System 50 L
Hydraulic Reservoir 300 L
Transmission and Torque Converter 45 L
Axles, Each 32
