Best price 100P and KV100 5ton 4×2 Isuzu dump truck

  • Isuzu dump truck price
  • Isuzu dump truck for sale
  • Isuzu dump truck

Isuzu dump truck

SKU: unit Category:

INQUIRY

Isuzu dump truck 4×2 5ton Isuzu 100P KV100

BEST PRICE

PROFESSIONAL SHIPPING SERVICE

FAST DELIVERY

ONE YEAR WARRANTY

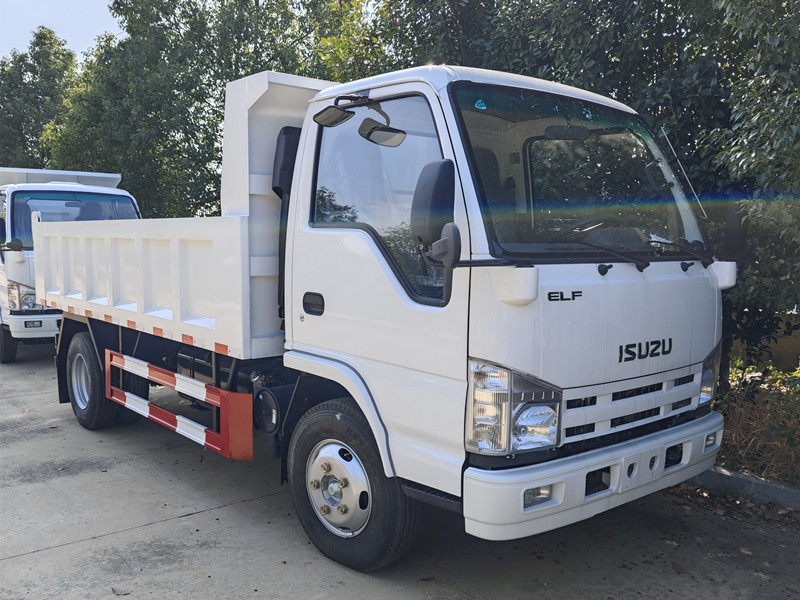

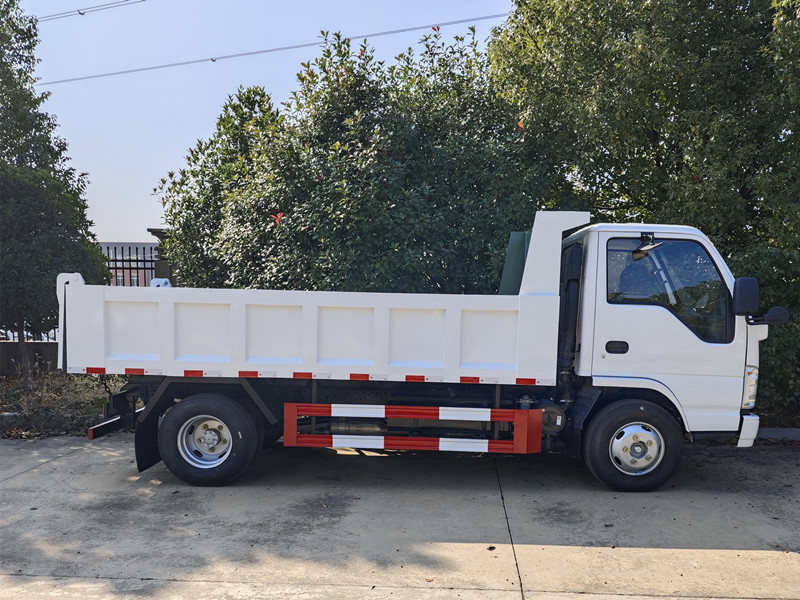

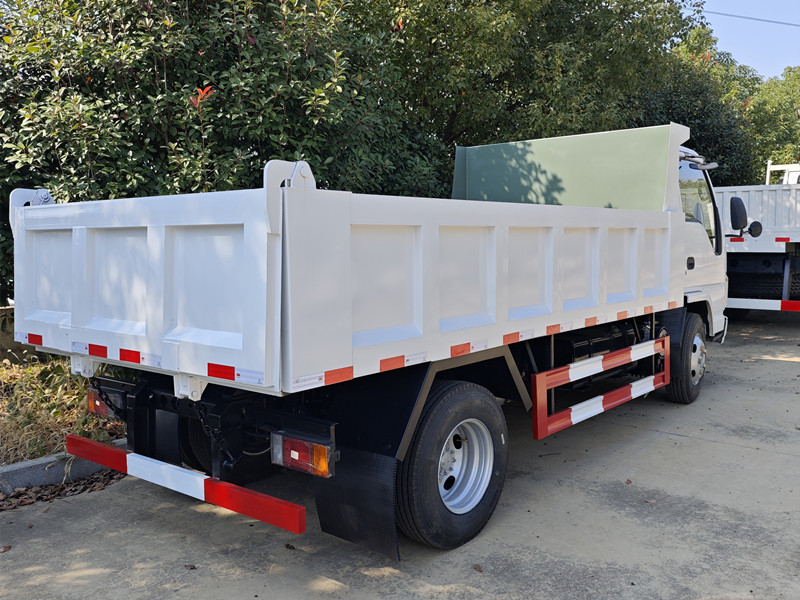

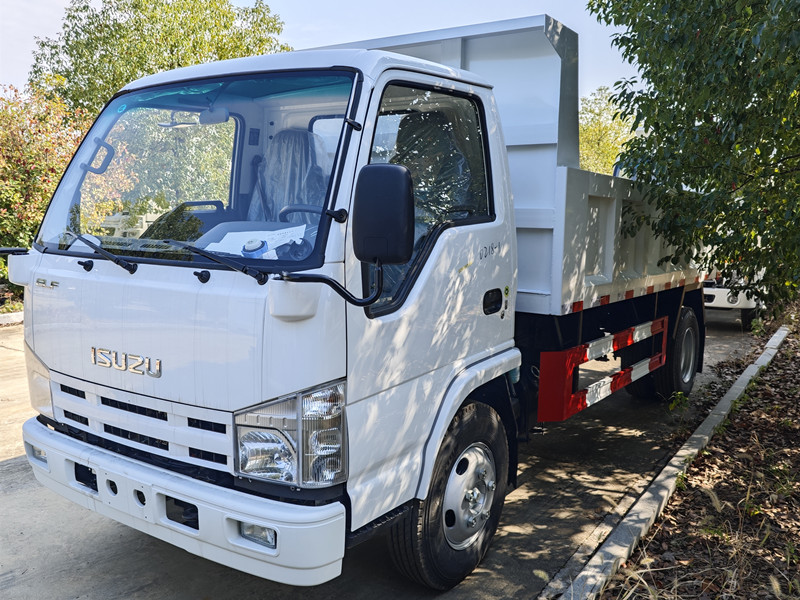

Isuzu dump truck



























Specifications of Isuzu dump truck,

Vehicle parameters
Overall dimensions 6000X1900X2200mm Curb weight 1980kg
Van dimensions 3800x1780x350,400mm Loading capacity 4000kg



Chassis parameters
Chassis model QL10703HARY Chassis brand ISUZU
Overall dimensions 5900x1880x2200mm Wheel base 3360mm
Front/rear wheel track 1504/1425mm Front/rear suspension 1015/1525mm
Approach/departure angle 24/16° Maximum speed 98km/h
Chassis Manufacturer QingLing Motors (Group) Co., Ltd
Cab Configuration 100P, single row cab, allowable 3 passengers, air conditioner, USB radio interface.
Color White, other color is optional
Engine Model 4JB1CN
Emission Euro4
Type 4 cylinders, in-line, diesel engine
Rated power 98hp
Displacement 2771ml
Manufacturer Isuzu (ChongQing) Engine Co., LTD
Tire Size 7.00-15 10PR nylon tire
Number 6+1 nos
Frame 172X65(4)mm
Front axle 2.5 tons
Rear axle 4.8 tons
Drive form 4X2
Suspension Multi leaf springs
Rated voltage 24V, DC
Transmissions Isuzu MSB five speed transmission, 5 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive

Isuzu dump truck for sale



























Welcome to contact 24 hours.

Tel/whatsapp: 008615066278170

Email: [email protected]

China top supplier of heavy truck and semi trailer. All truck with one year warranty.
