SHEHWA HBXG BULLDOZER SD7 PRICE
Features,
SD7N bulldozer is 230 horsepower track-type dozer with elevated sprocket, power shift drive, semi-rigid suspended and hydraulic controls.
SD7N -230 horsepower, elevated sprocket bulldozer integrate with modular design is easy to repair &
maintenance, It relieves oil with difference pressure, the hydraulic system performs protecting environment and save energy with high working efficiency. Safety comfortable operation condition, electric monitoring and ROPS cabin with reliable entire quality, excellent service is your wise choosing.
It can be equipped with straight tilting blade, angle blade, coal pushing blade, U shape blade; single shank ripper, three shanks ripper; ROPS, FOPS, forest defense cabin etc.. It is can ideal machine used in communication, oil field, power, mining etc. large earth moving program.
Specification of HBXG bulldozer SD7,
| Operating weight(not including ripper) | 23800 | |||
| Ripper weight | 3900 | |||
| Engine flywheel power | 162kw | |||
| Ground pressure(without ripper) | 71.9kPa | |||
| Ground clearance | 404mm | |||
| Ground contact length | 2890mm | |||
| Track center distance | 1980mm | |||
| Overall dimensions(L×W×H) (with single shank ripper) | 7604×3823×3402(with straight tilting blade) | |||
| Grade ability | Latitude30 ° Transverse 25° | |||
| Theory travel speed (km/h) | ||||
| 1st gear forward 0-3.9 | 1st gear backward 0-4.8 | |||
| 2nd gear forward 0-6.5 | 2nd gear backward 0-8.2 | |||
| 3rd gear forward 0-10.9 | 3rd gear backward 0-13.2 | |||
| Dozing operation rate(moving distance 40m) | 350m3/h | |||
| Diesel Engine | ||||
| Model | NT855-C280 (Cummins) or C6121ZLG10 (Licensed CAT 3306 diesel engine) | |||
| Type | water cooled, single line, vertical, four strokes, turbocharged, 6-cylinders, diameter 140mm or 121mm. | |||
| Rated speed | 2100 RPM | |||
| Flywheel power | 169 kW | |||
| Start mode | 24V electric starting | |||

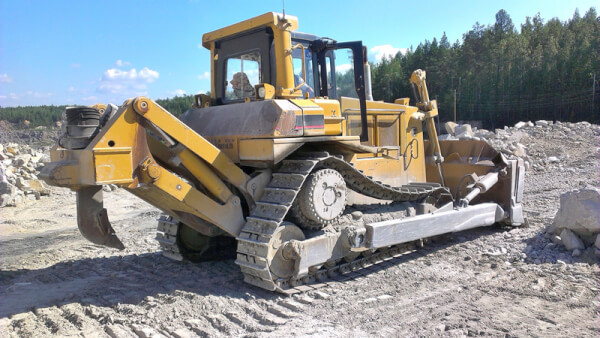

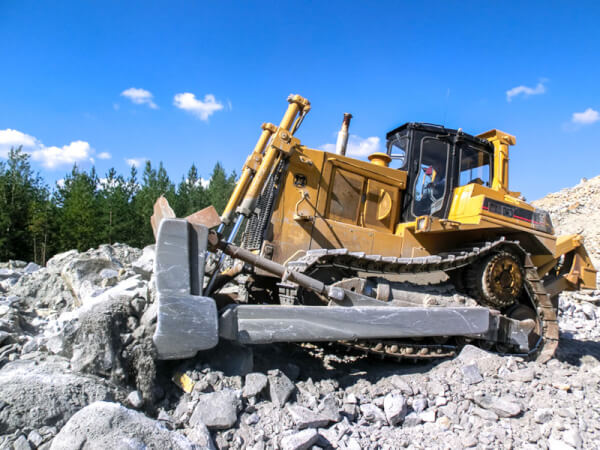

Bulldozer HBXG SD7 in work,
