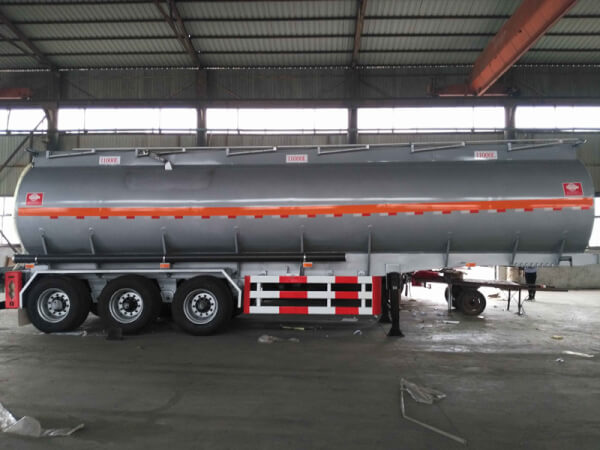

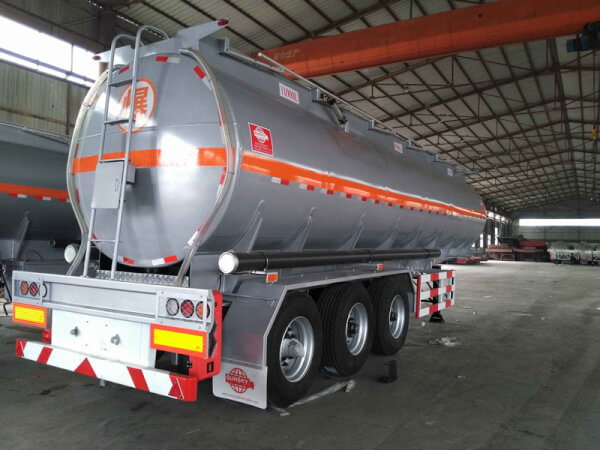

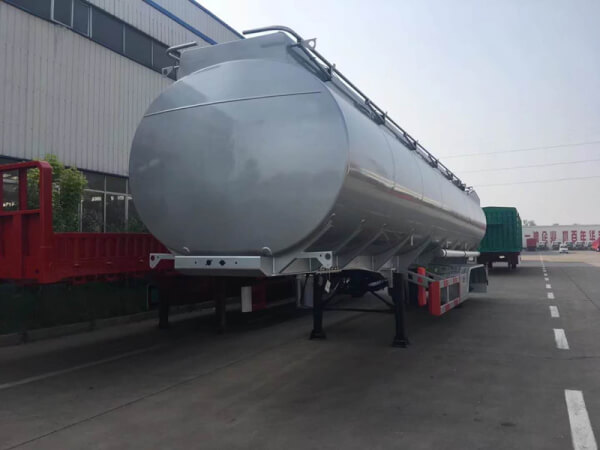

China low price fuel oil tanker trailer 35,000 liters
Fuel our tanker trailer features,
1. The fuel oil tanker trailer all famous brand parts like FUWA axle, JOST leanding gears, WEBCO brake walve, Triangle tires.
2. Srong frame with world top class welding and high strength steel.
3. Used for fuel transport like diesel, gasoline, crude oil.
Specifications of our fuel oil tanker trailer,
| Tare Weight | About 10T |
| Dimension | 12000mm*2500mm*3850mm |
| Loading Capacity (T) | 35,000 liters |
| Axle | 3 axles / 2axles, 13 T/16T/20T BPW / FUWA / Huajing /Jinsheng |
| Rim | 9.00-22.5 (special for export market) |
| Tire | 12R22.5 Double coin brand 13pieces/ 9 pieces |
| Suspension | Mechanical America Type optional/ bogie suspension |
| Spring leaf | 90(W)mm*13(Thick)mm*10 Layer |
| King pin | brand JOST optional |
| Support leg | Jost brand optional |
| Main beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm,
Down plate is 16mm; Material is Q345B Steel |
| Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); One piece of 45L air tanks |
| ABS | Without (optional) |
| Valve | WABCO valve |
| Light | LED light |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Tool box | 1 piece:equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive primer, 2 coats of final paint |
| Shipping Terms: | By bulk cargo carrier, RORO |
TANKER TRAILER SHIPPING IN PORT
