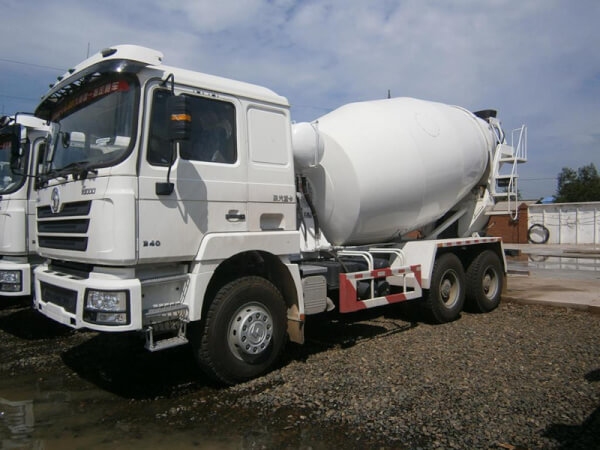

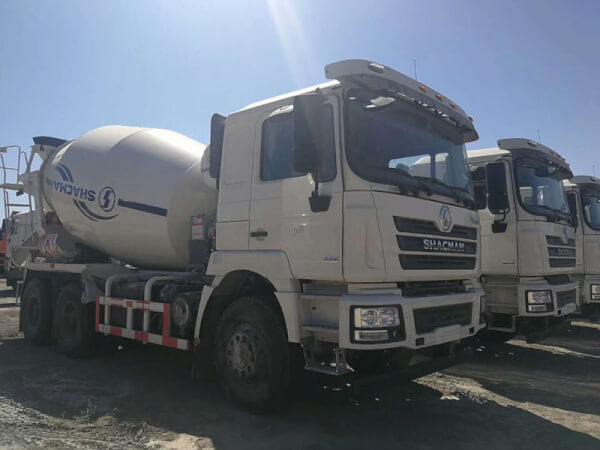

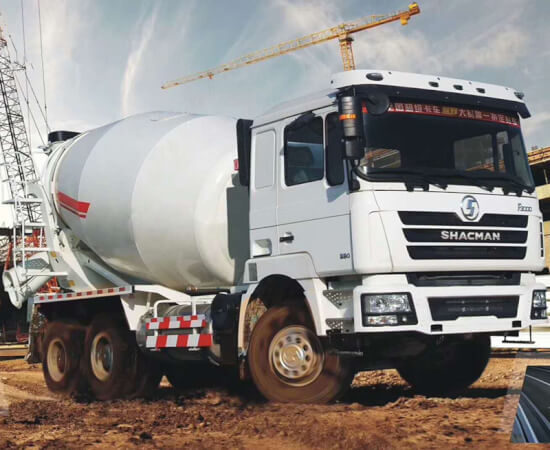

Shannxi Shacman 6×4 10 wheel 10 cubic China mixer truck
Shacman 10 cubic China mixer truck
Features of Shacman 10 cubic China mixer truck:
One of the most famous heavy truck brand in China
Luxury cab, comfortable driving
Heavy load, durable
Efficient, low fuel consumption
Specifications of Shacman China mixer truck:
|
Model |
SX5254GJBJR404 6×4 mixer truck 336HP LHD | |||
| Cabin | Metal bumpers, single sleeper, built-in air conditioning, adjustable steering wheel. | |||
| Engine | Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling. | |||
| MAX Horse power: | 336HP/247KW | |||
| Displacement(L): | 11.596liter | |||
| Max torque: | 1350N.m | |||
| Bore/stoke: | 126mm/155mm | |||
| Fuel consumption | 196g/kw.h | |||
| Engine overall dimension | 1566x582x1024mm | |||
| Fuel Type | Diesel | |||
| Emission standard | Euro II | |||
| Weight | 905kg | |||
| Gear box | Brand | Fast-gear | ||
| maximum torque | 1600N.m | |||
| Oil capacity | 14.5L | |||
| Rated speed | 2600rpm | |||
| Weight | 270kg | |||
| Model: | 12JS160, mechanism, manual | |||
| Speed: | 12Speed, 2r2reverse | |||
| Axle(front/rear) | ||||
| Front axle | 7.5 ton MAN steering axle | |||
| Rear axle | 13 ton STR bipolar axle | |||
| Steering | Driver sit at the left hand side | |||
| Electric Equipment | ||||
| Electric | Operating voltage: | 24Vnegative grounded | ||
| Starter: | 24V,5.4KW | |||
| Alternator | 28V,758W | |||
| Battery voltage | 12V/135Ah | |||
| Tyre | 10+1 spare tyre with rim | |||
| 11.00-20 radial tyre | ||||
| Leaf spring type | Front/Rear | 9/12,10/12 | ||
| Overall dimension(mm) | 9345×2495x3774(Length x width x height) | |||
| Mixer Ball Drum: | Capacity 6 – 12 m3 Material 16Mn, 5mm high-quality wear-resisting manganese alloy steel. | |||
| Wheelbase | 3800+1350(mm) | |||
|
Truck |
Front/Rear | 1850/1850 | ||
| Approach/Departure angle | 20/19 | |||
| Front /Rear overhang | 1525/2470 | |||
| Max speed | 77km/h | |||
| Total Mass | 25000kg | |||
| Kerb weight | 13700kg | |||
