Trailer truck head camion beiben
Features of camion beiben,
Beiben trailer truck head with Benz technology cab, axle and frame

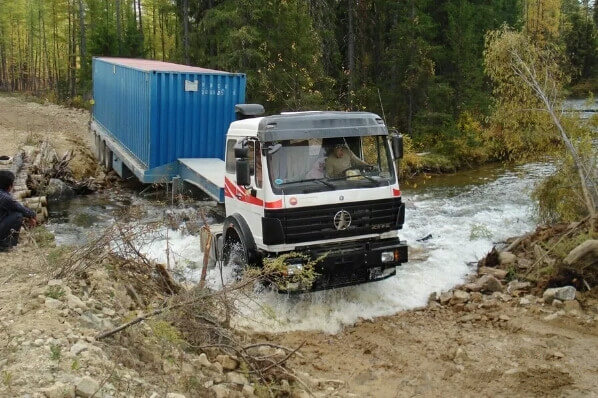

Beiben strong chassis able for off road
Weichai 380hp mechanical pump diesel engine
FAST famous brand gear box
Military quality
Specification of camion beiben,
| Beiben camion tracteur 2638S /6×4/3450+1450/Long Cab LHD/RHD | ||||
| Dimension | 7135×2495×3180(mm) | |||
| Approaching angle/Departure angle | 26/64° | |||
| Overhang(front/rear) | 1410/825mm | |||
| Wheel base | 3450+1450mm | |||
| Max speed | 99km/h | |||
| Curb weight | 9200kg | |||
| Max towing weight | 39600kg | |||
| Max loading on fifth wheel, Permitted(kg) | 15670kg | |||
| Slope climbing capability | Max.40% | |||
| Engine | Model | WP10.380E32，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection | ||
| Displacement | 9.726L/Diesel | |||
| Stroke | 126/130mm | |||
| Max. power | 280/2200 (kw/rpm) | |||
| Max.torque | 1600/1800（Nm/rpm） | |||
| Fuel tanker capacity | 400L | |||
| Clutch | ∮430, Single dry frictional disc，Hydraulic boosting | |||
| Gearbox | 12JS200T, mechanism,12 forward gears,2 reverse gear, manual operated, with synchronizer | |||
| Gear ratio of gear box | 15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.10/1.64/1.28/1.00 R:14.86/3.33 | |||
| Suspension system | Front | Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension , 13pcs | ||
| Rear | Non-free standing stabilization spring, balance suspension system, 13pcs | |||
| Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system | ||
| Assistant brake | Engine exhaust brake | |||
| Park brake | Potential springs pressing on middle and rear wheels | |||
| Steering system | TAS85, whole circulation in ball, hydraulic booster | |||
| Frame | Fish belly shape, variable width, variable sections | |||
| Model | ∮50 or ∮90 single direction | |||
| Front axle
(Mercedes Technology) |
Double-shoe pneumatic brake, non-driving steering axle | |||
| Middle and Rear axle (Mercedes Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle | |||
| Tyre | 12.00R20 | |||
| Electrical system | Battery | 2X12V/135Ah | ||
| Generator | 28V-35A | |||
| Starter | 5.4Kw/24V | |||
| Cabin | NG80B Long-Flat roof cabin with single sleeper Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back seat for driver;Electric lifting window ; With inner A/C |
|||
