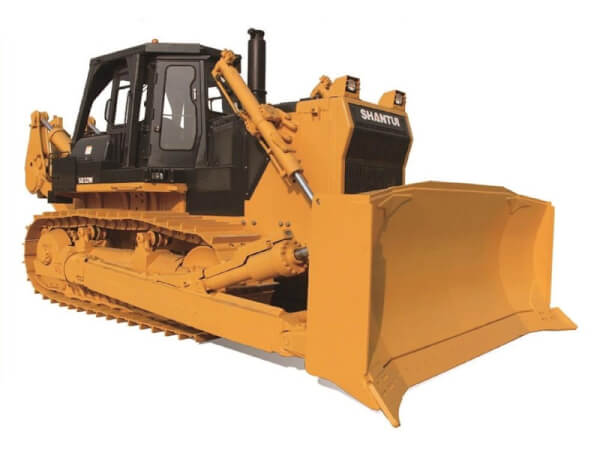

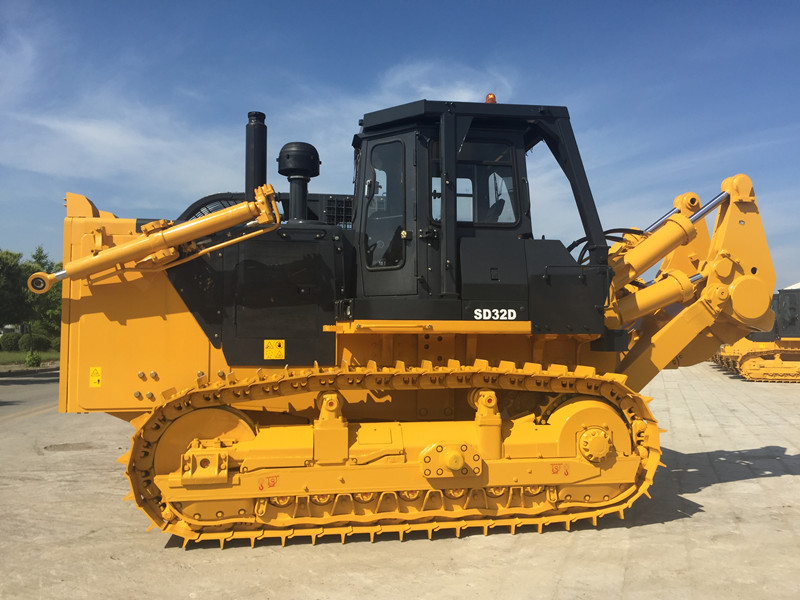

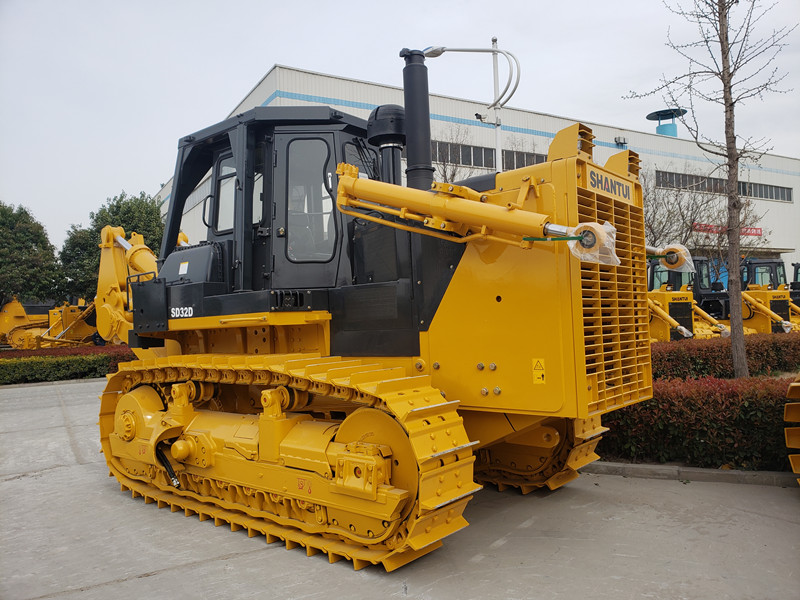

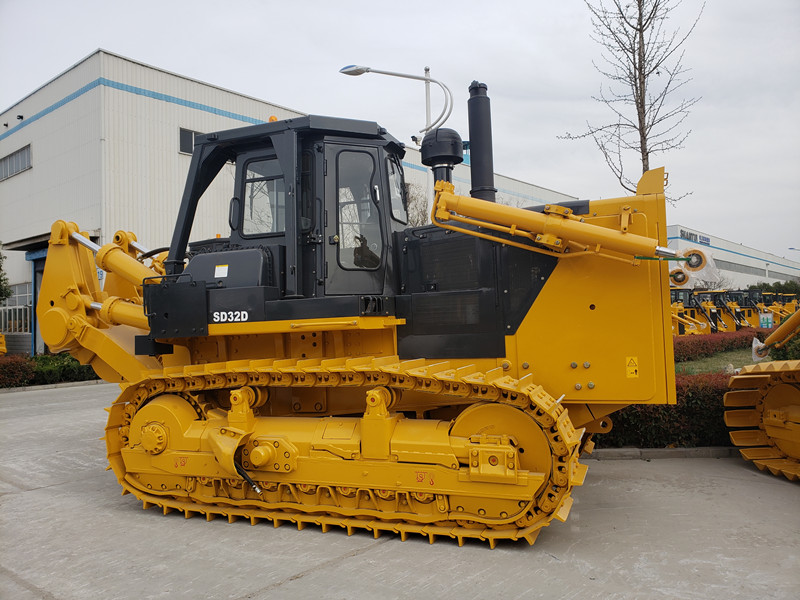

Desert type bulldozer Shantui SD32D price
In response to the demands of severe working conditions in earthwork projects, Shantui bulldozer SD32 it is a high power bulldozer under standardized mass production with the application of domestic leading production processes and technologies.
Engine power/speed: 235kW(320HP)/2000rpm
Operating weight of whole machine: 37200kg
Features of the bulldozer:
●NTAA855-C360S10 engine is equipped with exhaust gas turbocharger. Featuring strong power and high efficiency and energy-saving and can work normally even in the highlands as high as 3,600m. Depending on the customers’ demands, the option Cummins and Weichai engines are available.
●High reliability power shift transmission. Stable hydraulic torque converter. Two-stage spur gear final drive feature high power transmission capacity. Efficiency and high productivity.
●Independent engine water tank. Chassis oil cooler.Water-air intercooler integrated in the Chongfa engine provide prominent cooling performance. Simple maintenance operations to guarantee the continuous working of the machine.
●Full box-type main frame with application of high-performance materials. High strength castings features high carrying capacity against impact load and bending moment to support the continuous high strength working of machine under severe working condition. High quality welds guarantee the life cycle of the main frame.
●Low-drive final drive can provide powerful drive force and efficient gradeability. Shantui’s crawler chassis has reached the international advanced level in process level and can adapt to various complicated working conditions, featuring high reliability and carrying capacity.

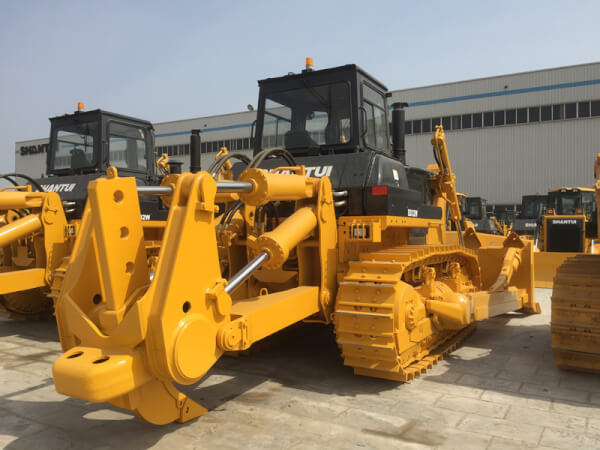

●The standard straight tilting blade features powerful cutting force. The single-shank and three-shank rippers of adjustable penetrating angle can be used for the ripping of clay and frozen earth as well as the stripping of hard working faces, such as gravel and hardened salt mine.

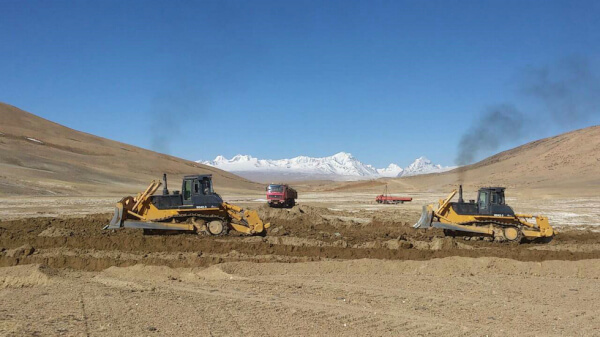

Bulldozer Shantui SD32D in work,

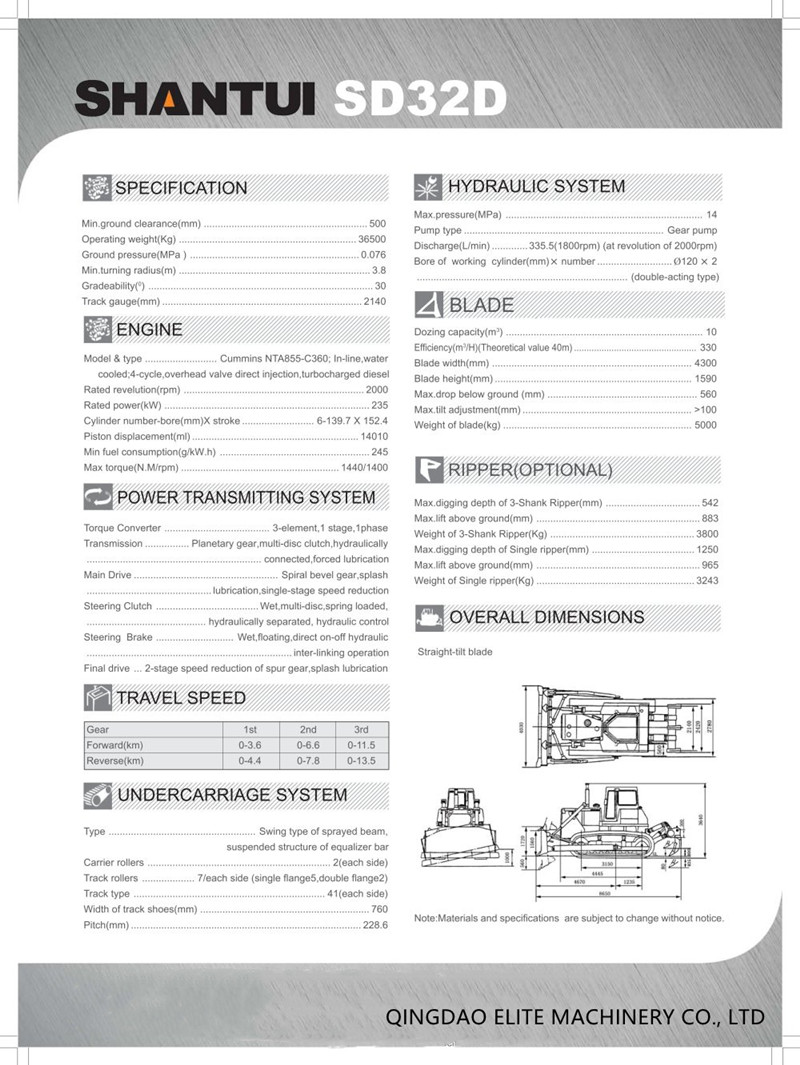

Following specifications of the bulldozer Shantui SD32D:
| Length × width × height (mm) (excluding ripper) | 8560×4130×3640(including ripper) | Operating weight (t)(excluding ripper) | 37.2 |
| Engine model | NTA855-C360S10 | Net power/rated speed (kW/rpm) | 235/2000 |
| Ground pressure(Mpa) | 0.105 | Blade type | Straight tilting blade Angle blade Semi-U blade |
| Blade capacity(m3) | 10 for straight tilting blade 6.2 for angle blade 11.7 for Semi-U blade | ||
