Beiben trailer truck head price.

Category:

INQUIRY

Prime mover Beiben truck price

Features of Beiben truck price,

Beiben trailer truck head with Benz technology cab, axle and frame

Beiben strong chassis able for off road

Weichai 380hp mechanical pump diesel engine

FAST famous brand gear box

Military quality

Beiben truck head



























Specification of Beiben truck price,

Beiben camion tracteur 2638S /6×4/3450+1450/Long Cab/RHD
Dimension 7135×2495×3180(mm)
Approaching angle/Departure angle 26/64°
Overhang(front/rear) 1410/825mm
Wheel base 3450+1450mm
Max speed 99km/h
Curb weight 9200kg
Max towing weight 39600kg
Max loading on fifth wheel, Permitted(kg) 15670kg
Slope climbing capability Max.40%
Engine Model WP10.380E32,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection
Displacement 9.726L/Diesel
Stroke 126/130mm
Max. power 280/2200 (kw/rpm)
Max.torque 1600/1800(Nm/rpm)
Fuel tanker capacity 400L
Clutch ∮430, Single dry frictional disc,Hydraulic boosting
Gearbox 12JS200T, mechanism,12 forward gears,2 reverse gear, manual operated, with synchronizer
Gear ratio of gear box 15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.10/1.64/1.28/1.00 R:14.86/3.33
Suspension system Front Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension , 13pcs
Rear Non-free standing stabilization spring, balance suspension system, 13pcs
Brake system Service brake Brake gap can be adjusted automatically, double circulation air brake system
Assistant brake Engine exhaust brake
Park brake Potential springs pressing on middle and rear wheels
Steering system TAS85, whole circulation in ball, hydraulic booster
Frame Fish belly shape, variable width, variable sections
Model ∮50 or ∮90 single direction
Front axle

(Mercedes Technology)

Double-shoe pneumatic brake, non-driving steering axle
Middle and Rear axle (Mercedes Technology) Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
Tyre 12.00R20
Electrical system Battery 2X12V/135Ah
Generator 28V-35A
Starter 5.4Kw/24V
Cabin NG80B Long-Flat roof cabin with single sleeper
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C



Welcome to send inquiry to us 24 hours. Sales manager: Eric Xu  Tel/whatsapp: 008615066278170   Email: [email protected]

Blogger

Back to homepage

Follow us on linkedin



Off road condition 2 axle flatbed trailer with bogie suspension,

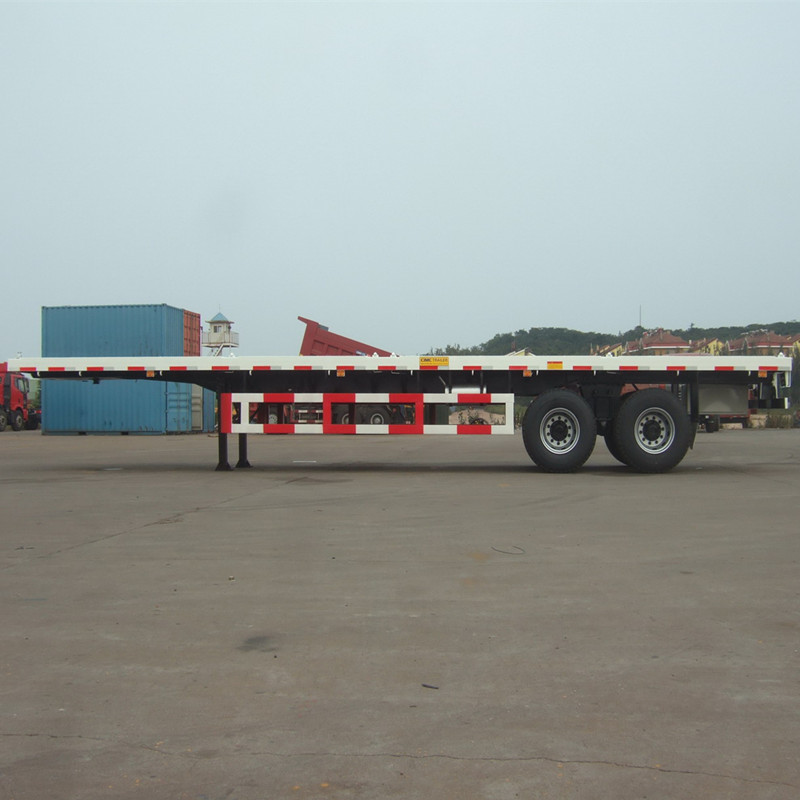

2 axle container trailer
