10 wheel Beiben dump truck price

  • Beiben dump truck price
  • dump truck beiben

Beiben 30ton 6x4 10 tires tipper dump truck

Category:

INQUIRY

China 30ton 10 wheel Beiben dump truck price

Features of 10 wheel Beiben dump truck price:

  • Benz cab, axle and frame
  • Military quality
  • Heavy load, durable

Specifications of Beiben dump truck price:

Beiben dump truck 2638/6×4/3800+1450/Short Cab/RHD
Dimension 8800*2500*3430mm
Cargo box 5600x2300x1350mm, HYVA hydraulic lifting system; thickness: bottom 8mm, side 6mm
Approaching angle/Departure angle 26/28°
Overhang(front/rear) 1410/1720mm
Wheel base 3800+1450mm
Max speed 85km/h
Curb weight 12650kg
Engine Model WP10.380E32, water-cooled, four strokes, 6 cylinders in line, turbocharged, directly injection
Displacement 9.726L/Diesel
Stroke 126/130mm
Max. power 280/2200 (kw/rpm)
Max.torque 1600/1800(N.m/rpm)
Emission Euro II
Fuel tanker capacity 300L
Clutch ∮430, Single dry frictional disc,Hydraulic boosting
Gearbox 9JS180, mechanism, 9 forward gears, 1 reverse gear, manual operated
Gear ratio of gear box 12.65/8.38/6.22/4.57/3.4/2.46/1.83/1.34/1.00 R:13.22
Suspension system Front Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension , 10pcs
Rear Non-free standing stabilization spring, balance suspension system, 13pcs
Brake system Service brake Brake gap can be adjusted automatically, double circulation air brake system
Assistant brake Engine exhaust brake
Park brake Potential springs pressing on middle and rear wheels
Steering system ZF8098 hydraulic steering with power assistance
Frame Strengthened Straight beam
Front axle

(Mercedes Technology)

Double-shoe pneumatic brake, non-driving steering axle
Middle and Rear axle

(Mercedes Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
Tire 12.00R20 radial tires one spare tire
Electrical system Battery 2X12V/135Ah
Generator 28V-35A
Starter 5.4Kw/24V
Cabin NG80B Long cabin one sleeper and inner A/C ;
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back with arm seat for driver, high back seat for co-driver; With inner A/C

Beiben dump truck price

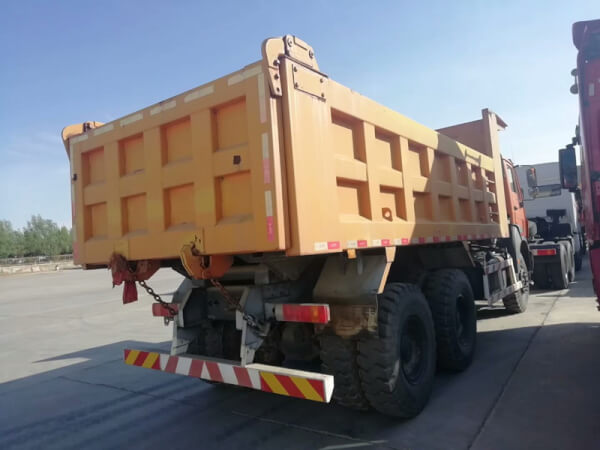

Beiben tipper truck shipping by RORO.

Beiben dump truck



































Welcome to contact 24 hours.

Tel/whatsapp: 008615066278170

Email: [email protected]
