heavy duty mine truck 90ton off road tipper truck for mining

  • 90ton mine truck

900ton mine truck for sale

Category:

INQUIRY

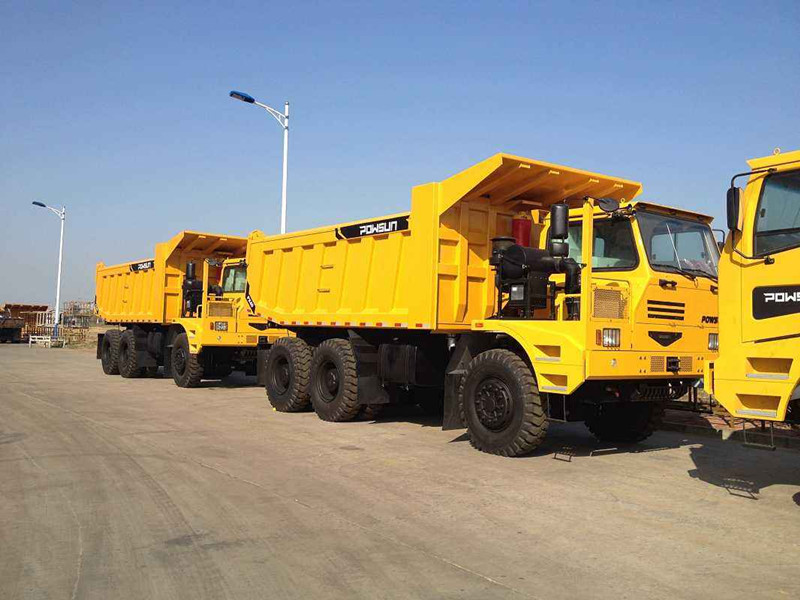

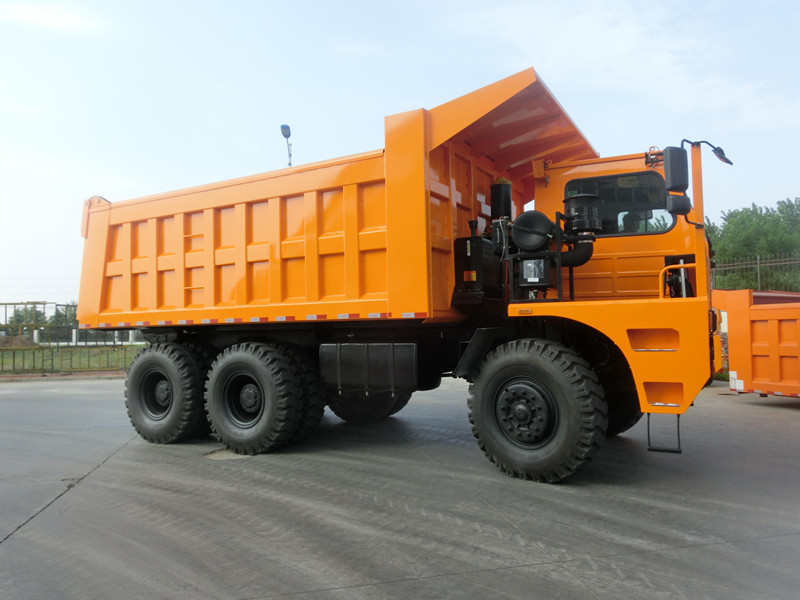

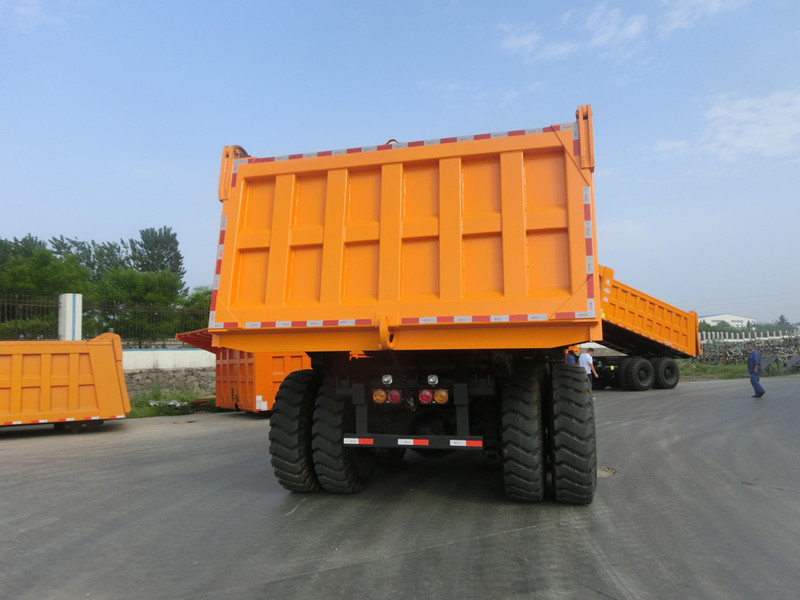

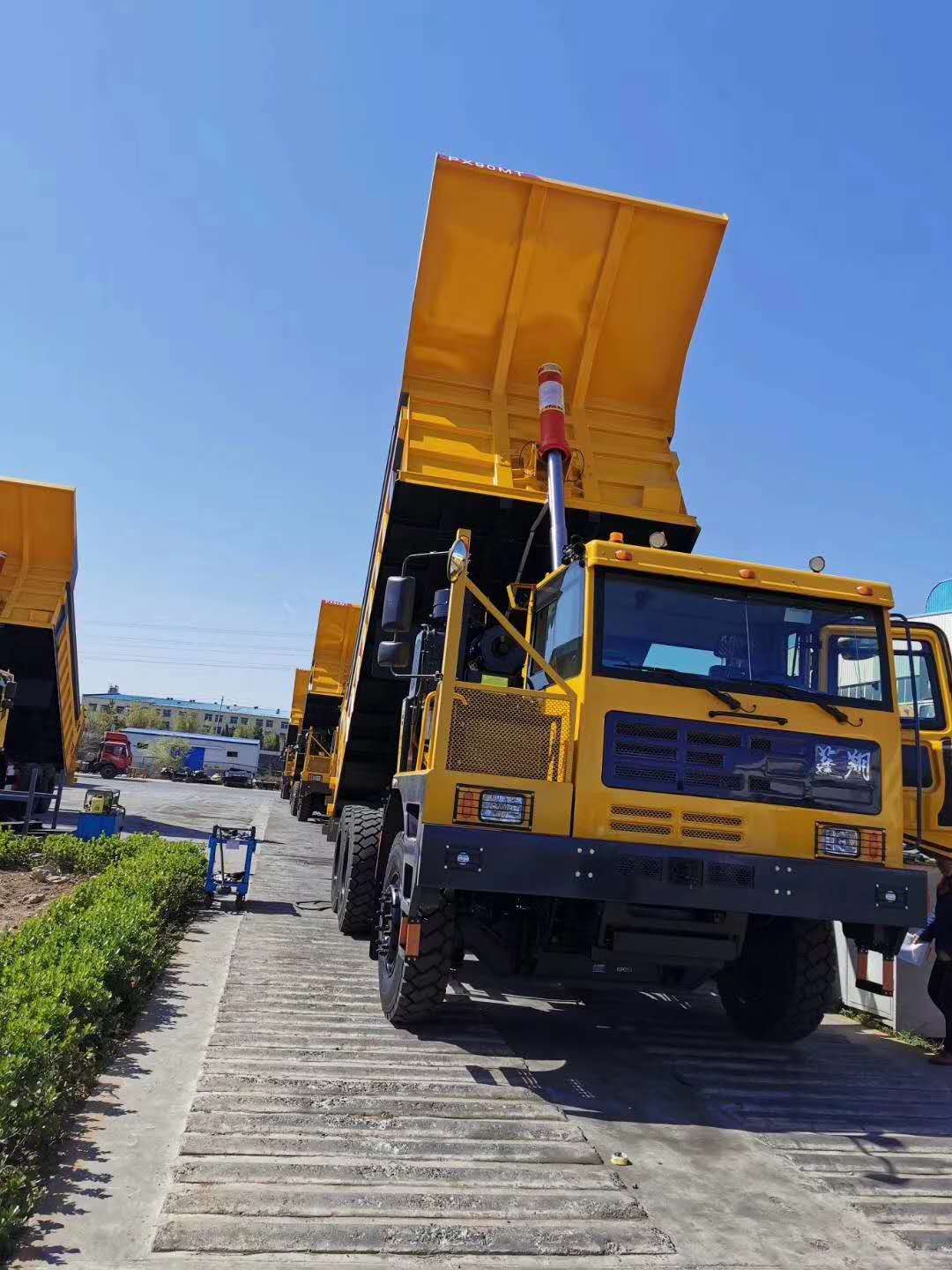

Heavy duty 90ton mine truck tipper for mining

Advantages of 90ton mine truck,

Cummins engine, FAST transmission, advanced technology, heavy load and strong chassis.

Specification of 90ton mine truck,

Type: PX90MTYQ
Driving Cab: Reversible wide-body offset cab (Left hand)
Engine Type/ Horsepower: WEICHAI WD12G430 E3
Transmission Type: FAST 7DS200K
Steering Engine: Sha Shi Jiu Long steering engine
Front/rear axle: PX19Tcasting steel front axle/PX 35T  casting dual reduction middle/rear axle
Frame: Welded Semi-rigid cube type frame 450*130
Inner dimension of body(mm): 5980*3310*1750
Description: Bottom margin 16mm side board10mm, front hoisting, Cylinder PX198,Slope tail box,No tailgate
Other Configuration:  16.00-25 36PR mining tyre
Front/rear suspension: Whole welded equalizing suspension, reinforced removable equalizing shaft
Leaf spring for front, middle, rear axle: Front: Oil-gas spring ,Rear:120*32*13
Breaking system: SORL system
Others: Air filter level 3, exhaust braking,heater for base plate,Stone remover,Chassis protection,Battery protection,Tank protection,Front and rear fender,Circuit strengthening, Rear view mirror reinforcement,LED Sidelight and taillight;
Curb Weight(kg): 32000
Rated load(kg): 58000
Rated total weight(kg): 90000
Overall Dimension(mm): 9300*3500*4260
Max speed(km/h): 42
Min ground clearance(mm): 435
Min turning radius(m): ≤11
Max gradeability(%): 32
Approach angle/Departure angle(°): 34.5/44.7
Axle base(mm): 3800+1690
Wheel span (front /rear)(mm): Front2793, Rear 2526
Oil tank Capacity(L): 600L Steel oil tank
Body Capacity: 35m³
To China KULMA Port  Price(CNY): 726000
