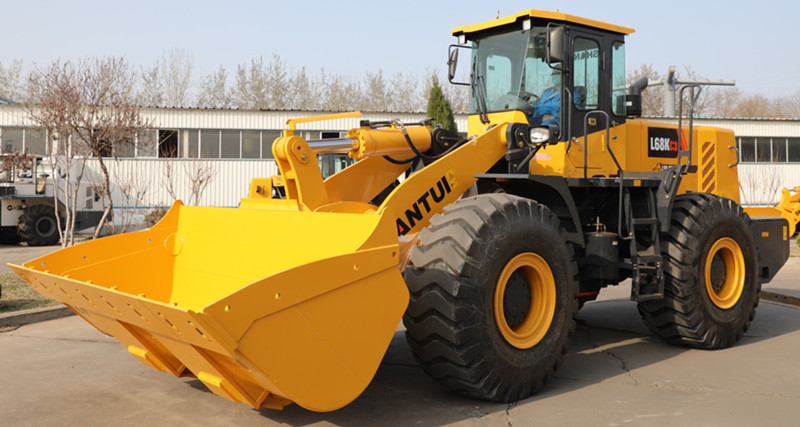

Parameter name | L68-B3 CH (Coal version) | L68-B3 MH (Ore version) |
Performance parameters | ||
Operating weight (Kg) | 20700 | 21960 |
Maximum dumping height (mm) | 3755 (Long boom) | 3288 |
Dumping reach (mm) | 1266 (Long boom) | 1281 |
Maximum breakout force (kN) | 180 | 180 |
Total cycle time (s) | 11.3 | 11.3 |
Engine | ||
Engine model | WP10 | WP10 |
Rated power/rated speed (kW/rpm) | 178/2200 | 178/2200 |
Overall dimensions | ||
Overall dimensions of machine (mm) | 9055*3050*3640 | 8890*3072*3640 |
Driving performance | ||
Forward speed (km/h) | Planetary type: F1:0-12, F2:0-38 Electronic control type: F1:0-7, F2:0-12, F3:0-25, F4:0-38 | Planetary type: F1:0-12, F2:0-38 Electronic control type: F1:0-7, F2:0-12, F3:0-25, F4:0-38 |
Reversing speed (km/h) | Planetary type: R:0-17 Electronic control type: R1:0-7, R2:0-12, R3:0-25 | Planetary type: R:0-17 Electronic control type: R1:0-7, R2:0-12, R3:0-25 |
Chassis System | ||
Wheelbase (mm) | 3400 | 3400 |
Tank capacity | ||
Fuel tank (L) | 230 | 230 |
Working device | ||
Rated bucket capacity (m³) | 4 | 3.5 |
Rated loading capacity (t) | 6 | 6 |
