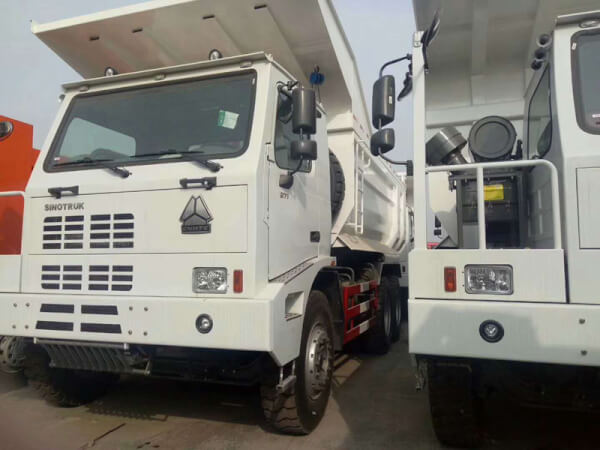

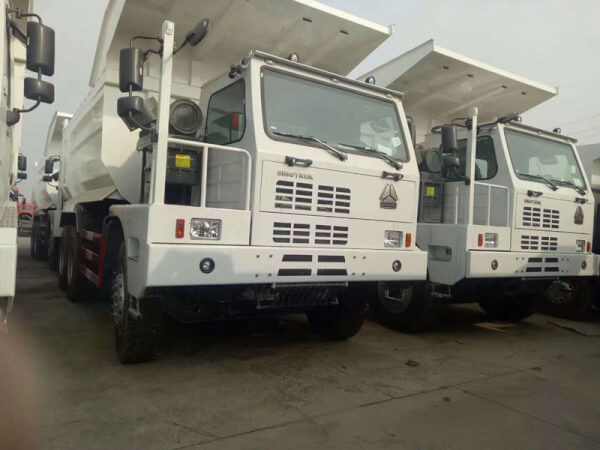

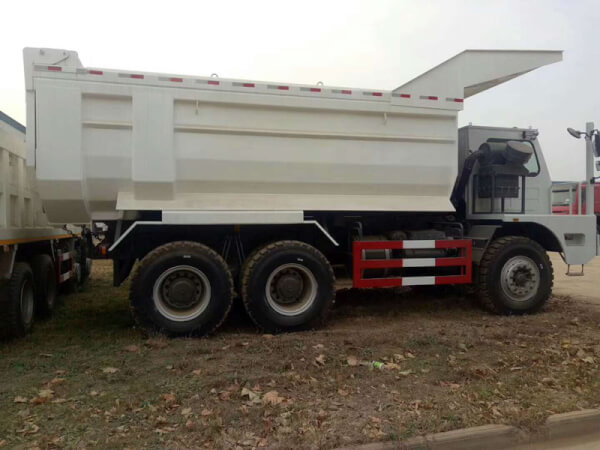

China Sinotruk HOWO 50ton mining truck
Features of HOWO 50ton mining truck 371hp:
HOWO 50ton mining truck with rated load capacity 50,000kg , overall design adopts wide frame and single side cabin constructure , While effectively increasing the load capacity and self-unloading capacity of the mine truck, the center of gravity of the vehicle chassis is further reduced, which ensures that the overall center of gravity of the vehicle is more stable after loading large tonnage minerals. The special frame of the 50 mine truck has better resistance to twisting and ensures that the center of gravity of the chassis is more stable.
The design is in line with the mine roads of China’s open pit mines and large mines, and the actual truck environment of most narrow and narrow, soft and muddy. Compared with the ordinary high gravity mine dump trucks, the HOWO series 50 mine trucks have higher passability and Security guarantees have broad market potential. Currently , the mine truck has been most popular trucks by users and its selling quatity is increasing constantly .
Specifications:
| Model No | ZZ5707S3840AJ | |||
| Cab | HOWO7D Air conditioner | |||
| Engine | Model | WD615.47 | ||
| Power(PS/RPM) | EUROII 273/2200 | |||
| Displacement(L) | 9.726 | |||
| Transmission | HW19710 | |||
| Front axle | HF12 Max.loading:12000kg | |||
| Rear axle | AC26 Max.loading:26000 kg | |||
| Steering gear | ZF8098 | |||
| Electric system | Voltage | 24V, negative grounded | ||
| Batteries | 2*12V/135Ah | |||
| Starter power | 24V/5.4KW | |||
| Wheels and Tyres | 14.00-25 | |||
| Fuel tank (L) | 300 | |||
| Carriage Internal Dimensions(mm) | Steel thickness of Carriage | Floor:12
Side:8 |
||
| Cargo Dimensions | 4300*2300*1600 | |||
| Weight(Kg) | Gross Vehicle Weight | 100000 | ||
| Cerb Weight | 29000 | |||
| Vehicle Dimensions (mm) | Overall L*W*H | 8700*3300*4340 | ||
| Wheelbase(mm) | 3625+1350 | |||
| Performance | Maximum speed(km/h) | 63Km/h | ||
