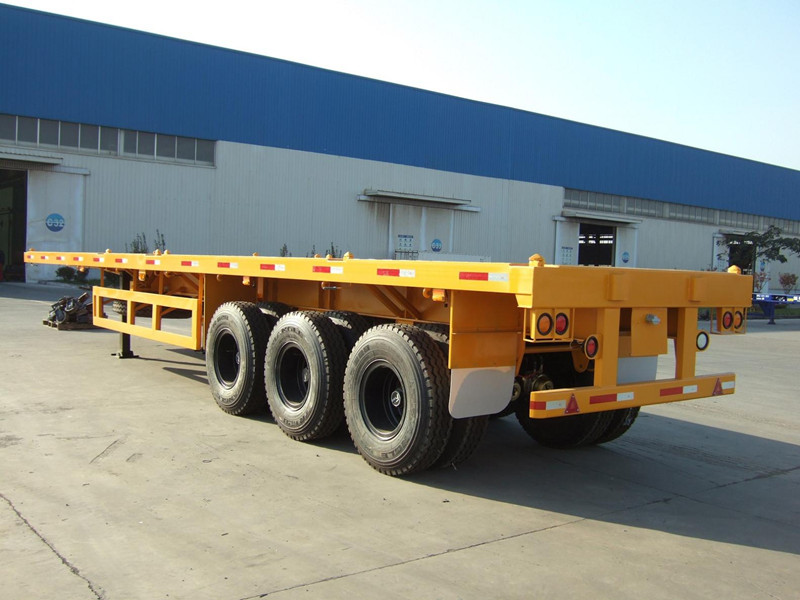

40ft container trailer for sale
Features of 40ft container trailer,
1. 40ft container trailer high quality steel makes trailer itself lighter but strong enough for heavy cargos, so that transport company can load more tons.
2. The most skilled workers make welding of this flatbed trailer more frequent and strong.
3. Two pieces spare tire carriers, water tank, fuel tank, etc, are optional accessories which build modern transportation.
Usage of the 40ft container trailer,
For 20ft 40ft container and other loose cargo transport.
Specification of the trailer,
| Dimensions(LxWxH) | 12500 x 2500 x 1550mm | |
| Tare weight | 10 tons | |
| Axle spacing | 1310mm | |
| Rims | 8.5-20, 9.0-20 | |
| Suspension System | Leaf spring suspension / air suspension | |
| Brake System | Dual line pneumatic brake system with WABCO emergency relay valve | |
| Main Beam | Height 500mm Q345 | |
| Chassis | upper 20mm, lower 20mm. Mid web 12mm | |
| Tires | 12R22.5 | |
| Kingpin | 2’ or 3.5’ interchangeable | |
| Landing Gear | 28 Tons , Two speed manual operation | |
| Electrical System | 1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard | |
| Lights and Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |
| Painting | Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available | |
| Tool Box | One tool box with a set of standard trailer tools | |
| Spare Tyre Carrier | One piece or two pieces
|
|
Welcome to contact 24 hours. Sales manager: Eric Xu Tel/whatsapp: 008615066278170 Email: [email protected]
